Baumuller DSD-028 User Manual

TAM00721 19
DSD-028 / DSD-036 / DSD2-028 / DSD2-036 04/2013
Three-phase-synchronous motor English
7.2 Resolver – KTY on signal connection
Receptacle: Size 1 - Straight, Angled or Angled Rotatable
Function Receptacle
Signal Contact No. Schematic
Motor
U 1
Power
8-Pole
Pin Contacts
V 3
W 4
PE 2
Brake
(1)
+ A
- B
Housing s.c.
Resolver
COS - 1
Signal
12-Pole
Pin Contacts
SIN - 5
SIN + 6
COS + 8
REF + 10
REF - 12
Temp.-
Sensor
KTY - 7
KTY + 9
Housing s.c.

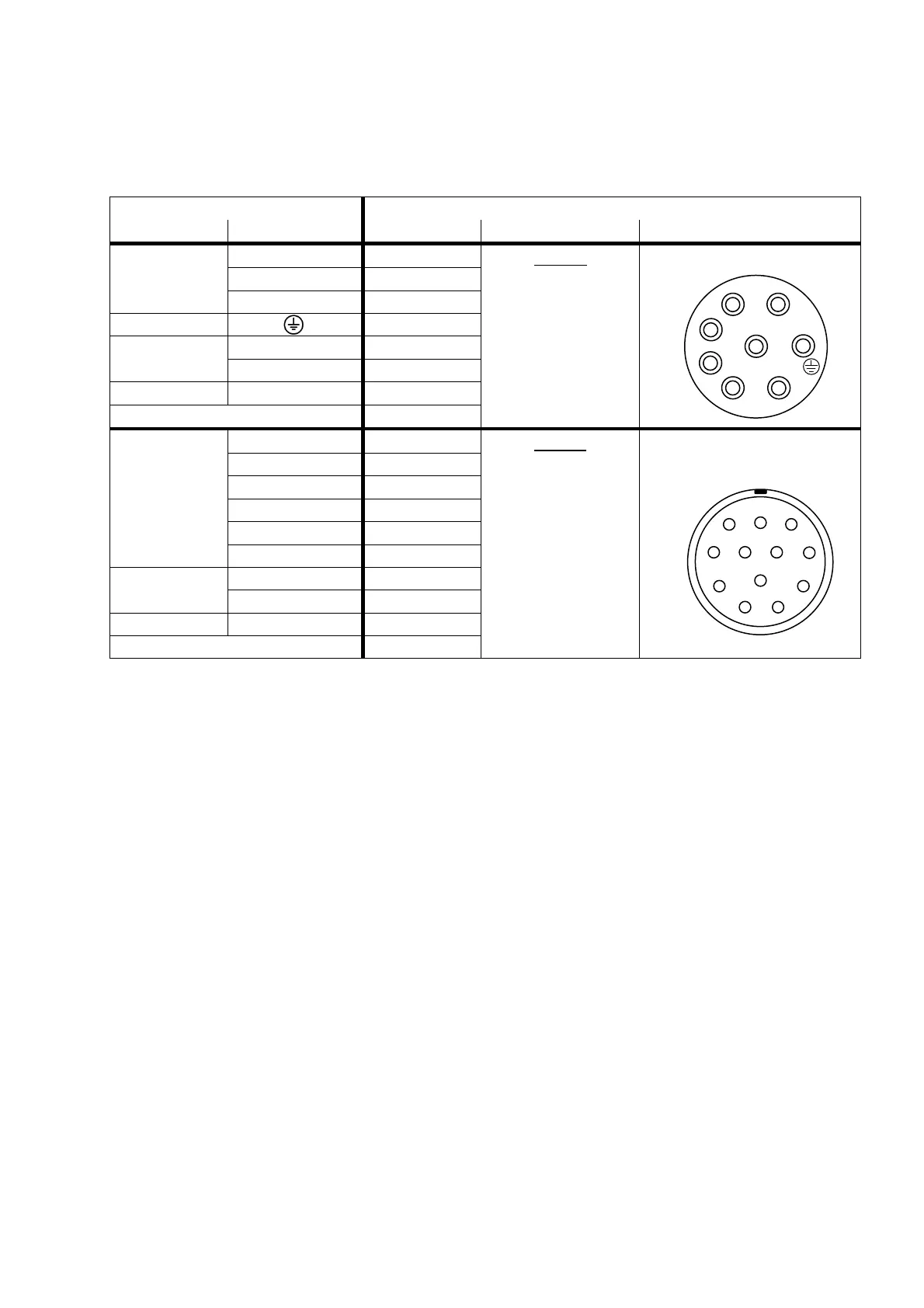

Figure 3: Resolver-KTY on signal connection
s.c.: shield connection
(1) brake optional; see nameplate
Schematic: view of the contact side
D
3
1
C
4
B
A
2
3
6
8
4
5
1
2
7
9
12
11
10
P
