TAM00721 23
DSD-028 / DSD-036 / DSD2-028 / DSD2-036 04/2013
Three-phase-synchronous motor English
7.6 ECN1325 / EQN 1337
(encoder with EnDat 2.2-port from Heidenhain companies; M12, 8-polig)
Pin Signal
Ansicht auf Kontaktseite
der Gerätedose
1
2
3
4
5
6
7
8
Sensor 0V
Sensor Up
Data
Data inv.
0V
Clock inv.
Clock
Up

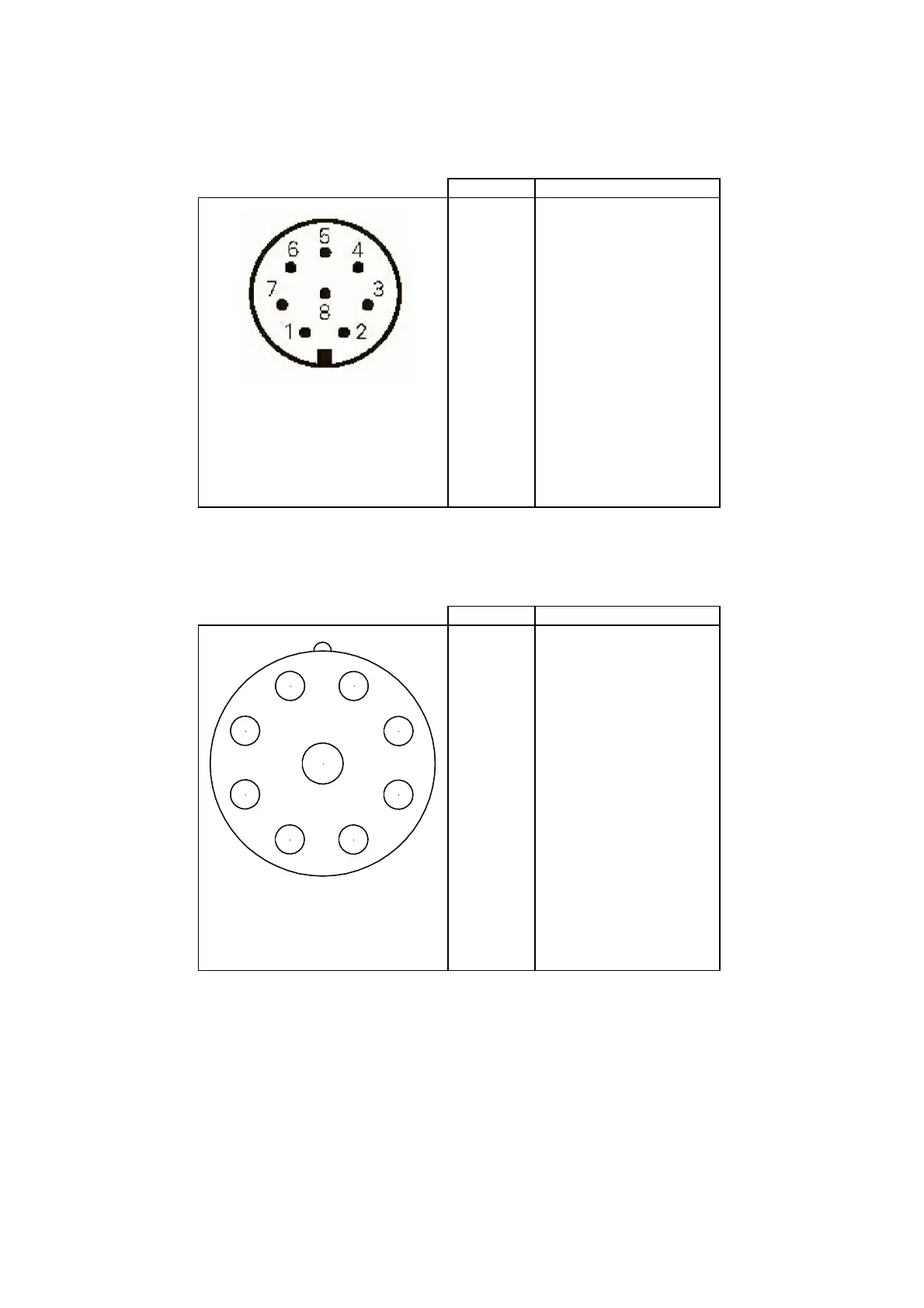

Figure 7: pole assignment ECN 1325 / EQN 1337 (M12)
7.7 ECN1325 / EQN 1337
(encoder with EnDat 2.2-port from Heidenhain companies; M23, 9-polig)
Pin Signal
5
6
8
7
2
3
9
4
1
Ansicht auf Kontaktseite
der Gerätedose
1
2
3
4
5
6
7
8
9
Clock
Clock inv.
Up
0V
Data
Data inv.
Sensor Up
Sensor 0V
-
Figure 8: pole assignment ECN 1325 / EQN 1337 (M23)
Note:
• For other encoder types and optional lead for the temperature sensor via the encoder cable,
see the enclosed wiring diagram or technical documentation for the pin assignment
• The encoder from Section 7.3 to 7.7 are components susceptible to ESD.
