TAM00721 7
DSD-028 / DSD-036 / DSD2-028 / DSD2-036 04/2013
Three-phase-synchronous motor English
2.3 Nameplate
The nameplate is used to identify each electric motor. The unique motor number is clearly shown on each
nameplate and is essential for internal tracking procedures. It must be possible to read the nameplate at
all times. Never remove the nameplate from your motor.
Nameplate data:

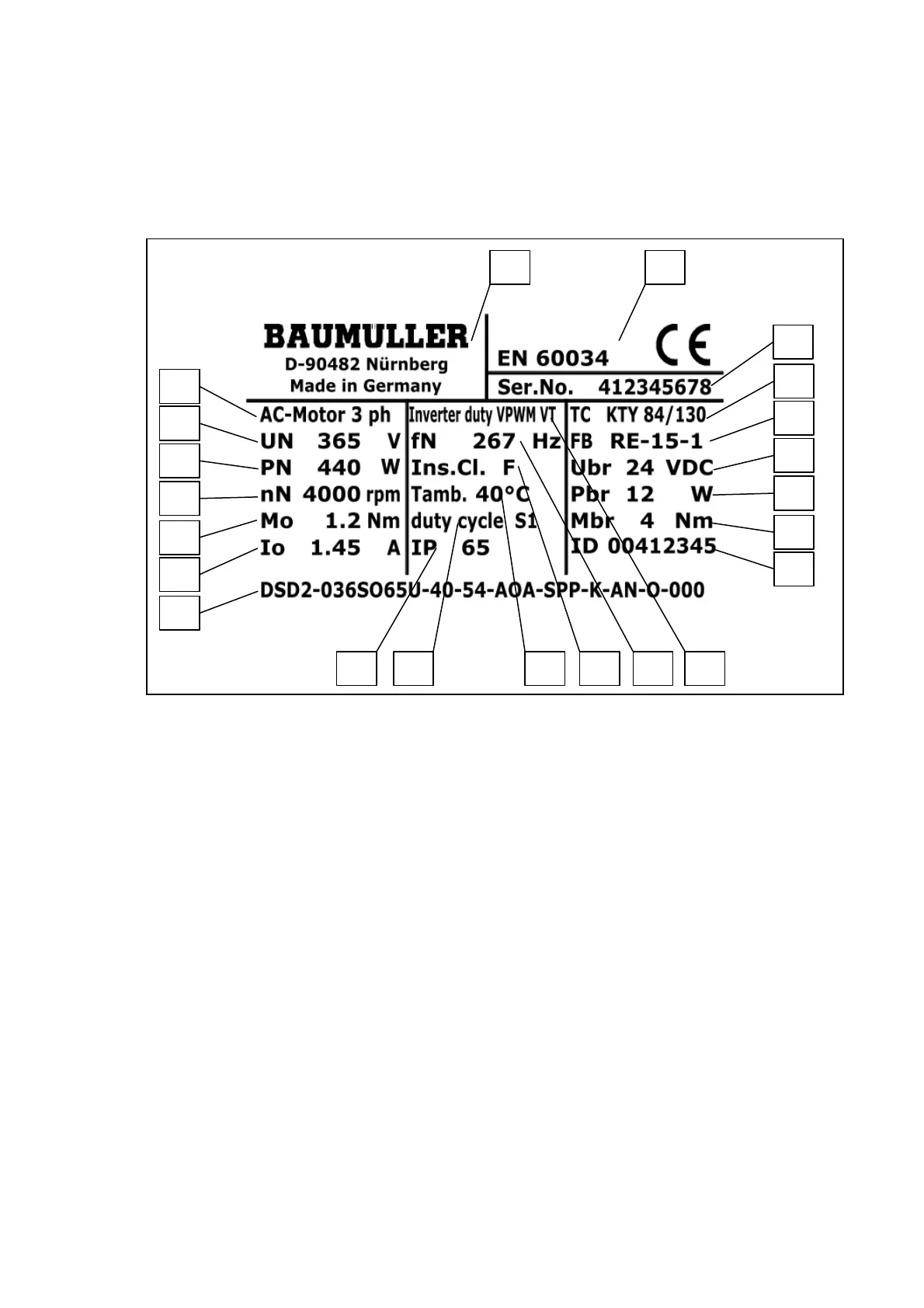

Figure 1: Nameplate
Manufacturer
Standards and approvals
Thermal sensor
Feedback / encoder
(optional) brake - voltage
(optional) brake - power
(optional) brake - holding torque
Motor number
Article number ID
10
Motor is run with a converter
11
Rated frequency f
N
12
Thermal class (VDE insulation class)
13
Permissible ambient temperature
14
Motor operating mode
15
Motor protection type
16
Motor type/designation
17
Standstill current I
0
18
Standstill torque M
0
19
Rated speed n
N
20
Rated power P
N
21
Rated voltage U
N
22
Motor type: 3 phase motor
1
4
5
3
9
8
7
6
2
22
21
16
17
18
19
20
10 11 12 13 14 15
