DSD-028 / DSD-036 / DSD2-028 / DSD2-036 04/2013
Three-phase-synchronous motor English
7.4 SRS/SRM50; SKS/SKM36; SEK/SEL37 – KTY on signal connection
feedback: Hiperface
Receptacle: Size 1 - Straight, Angled or Angled Rotatable
Function Receptacle
Signal Contact No. Schematic
Motor
U 1
Power
8-Pole
Pin Contacts
V 3
W 4
PE 2
Brake
(1)
+ A
- B
Housing s.c.
Hiperface
REFCOS 1
Signal
12-Pole
Pin Contacts
Daten + 2
+ SIN 5
REFSIN 6
Daten - 7
+ COS 8
GND 10
+ U 12
Temp.-
Sensor
KTY + 3
KTY - 4
Housing s.c.

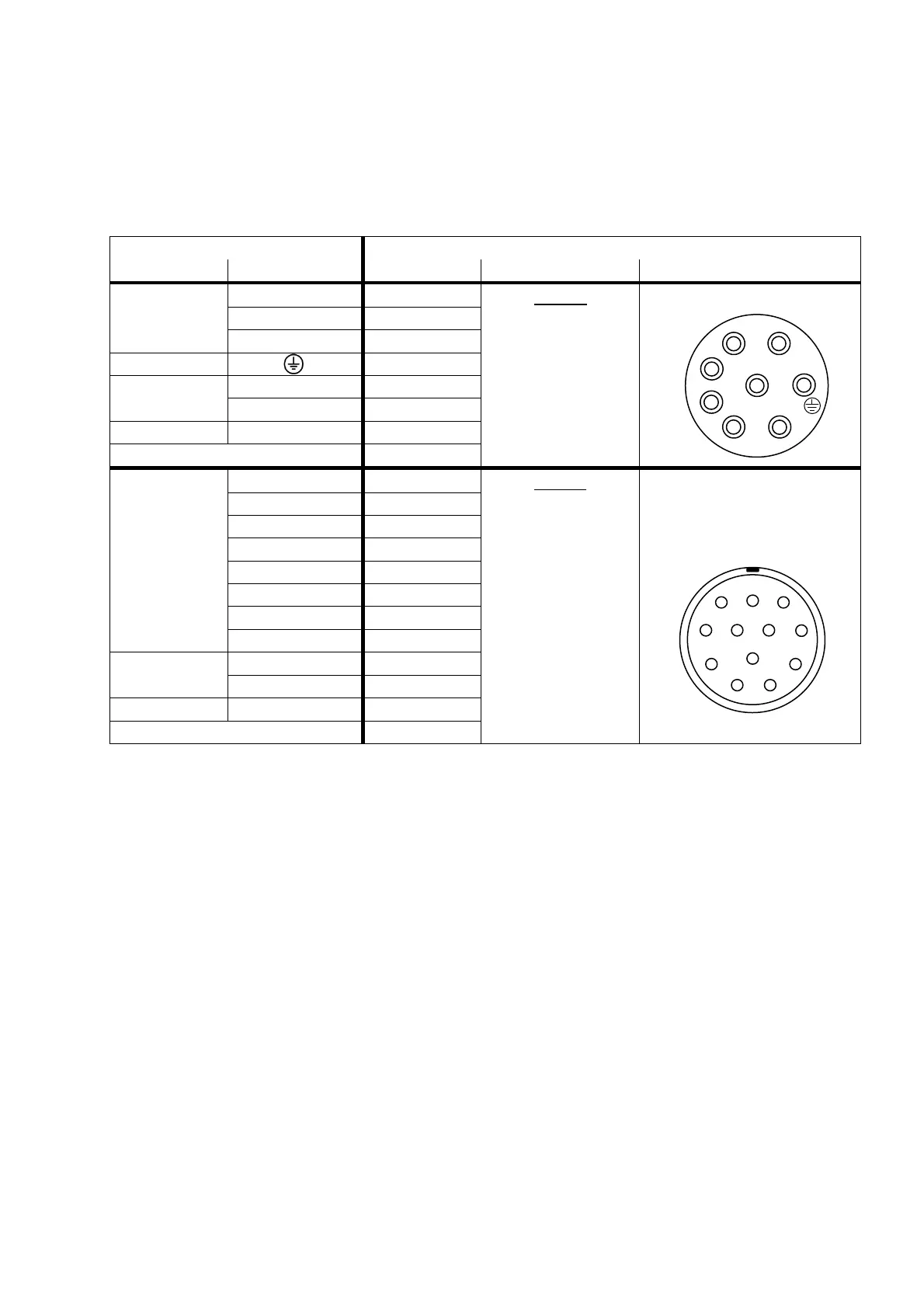

Figure 5: Hiperface-port-KTY on signal connection
s.c.: shield connection
(1) brake optional; see nameplate
Schematic: view of the contact side
D
3
1
C
4
B
A
2
3
6
8
4
5
1
2
7
9
12
11
10
P
