13.3 Outdoor unit
13.3.1 AWHP 4.5 MR

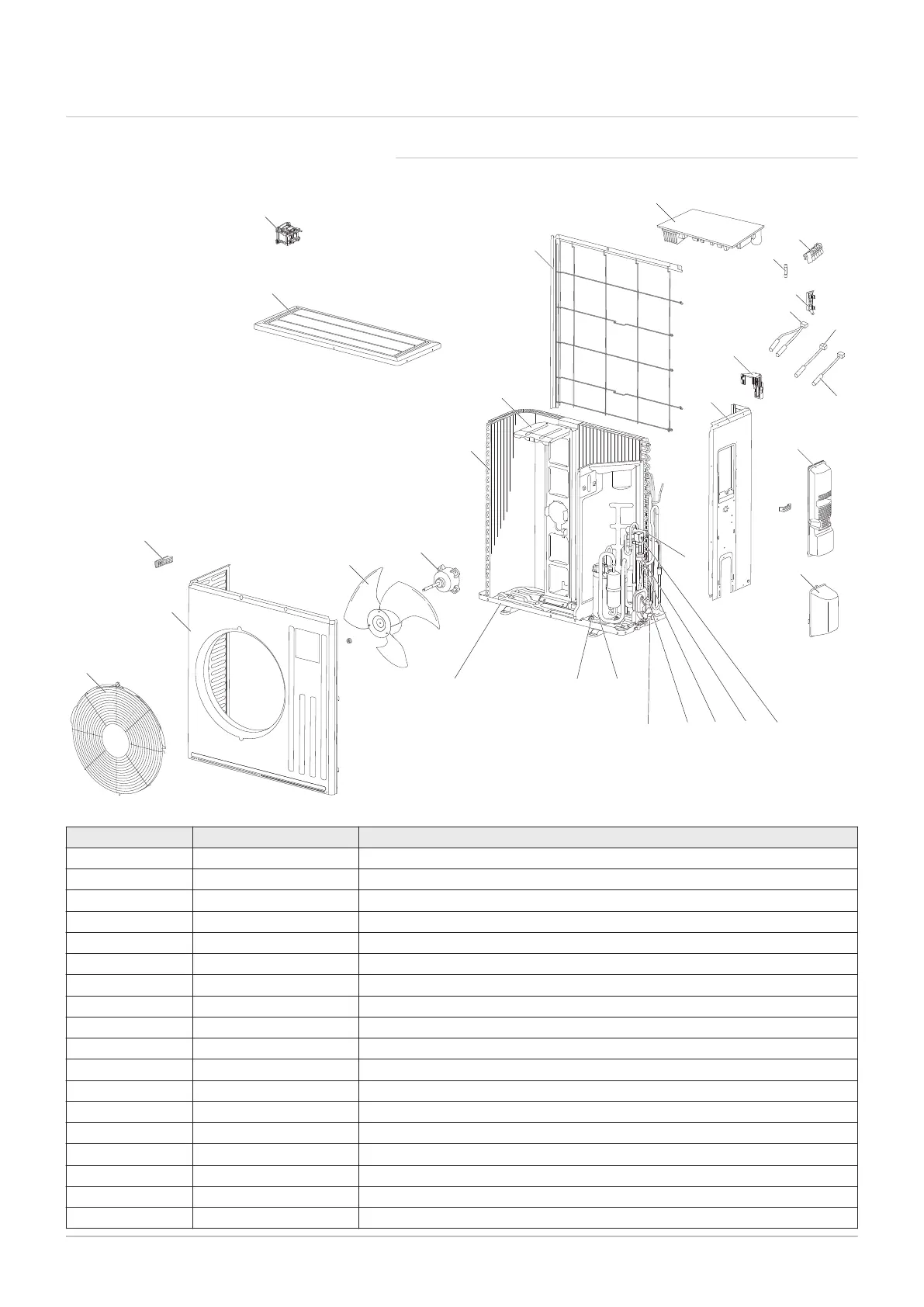

Fig.92
24
23
18
14 1715
13
16
31
32
29
30
22
28
27
26
25
21
20
32
1
2
3
4
5
6
7
1
9
MW-1000573-2
12
9
Tab.105
Marker Reference Description
1 7652649 Top panel
2 7652667 Coil (evaporator/condenser)
3 7652668 Fan motor
4 7652669 Fan rotor
5 7652670 Grip
6 7652671 Front panel
7 7652672 Fan grate
9 7652673 Base frame
12 7652674 Compressor anti-vibration mount kit
13 7652675 SNB130FGBMT compressor
14 7652676 1/2" stop valve (gas) Ø 12.7 mm
15 7652677 1/4" stop valve (hydraulic) Ø 6.35 mm
16 7652678 Expansion valve
17 7652679 LEV expansion valve coil
18 7652680 21S4
solenoid valve coil
19 7652681 4-way valve
20 7652682 Stop valve access panel
21 7652684 Electrical supply access panel
