13 Spare parts
13.1 General
If inspection or maintenance work reveals the need to replace a heat
pump component, use only recommended spare parts and equipment.
Caution
Only genuine spare parts may be used.
Important
To order a spare part, give the reference number shown on the
list.
13.2 Indoor unit
13.2.1 Casing

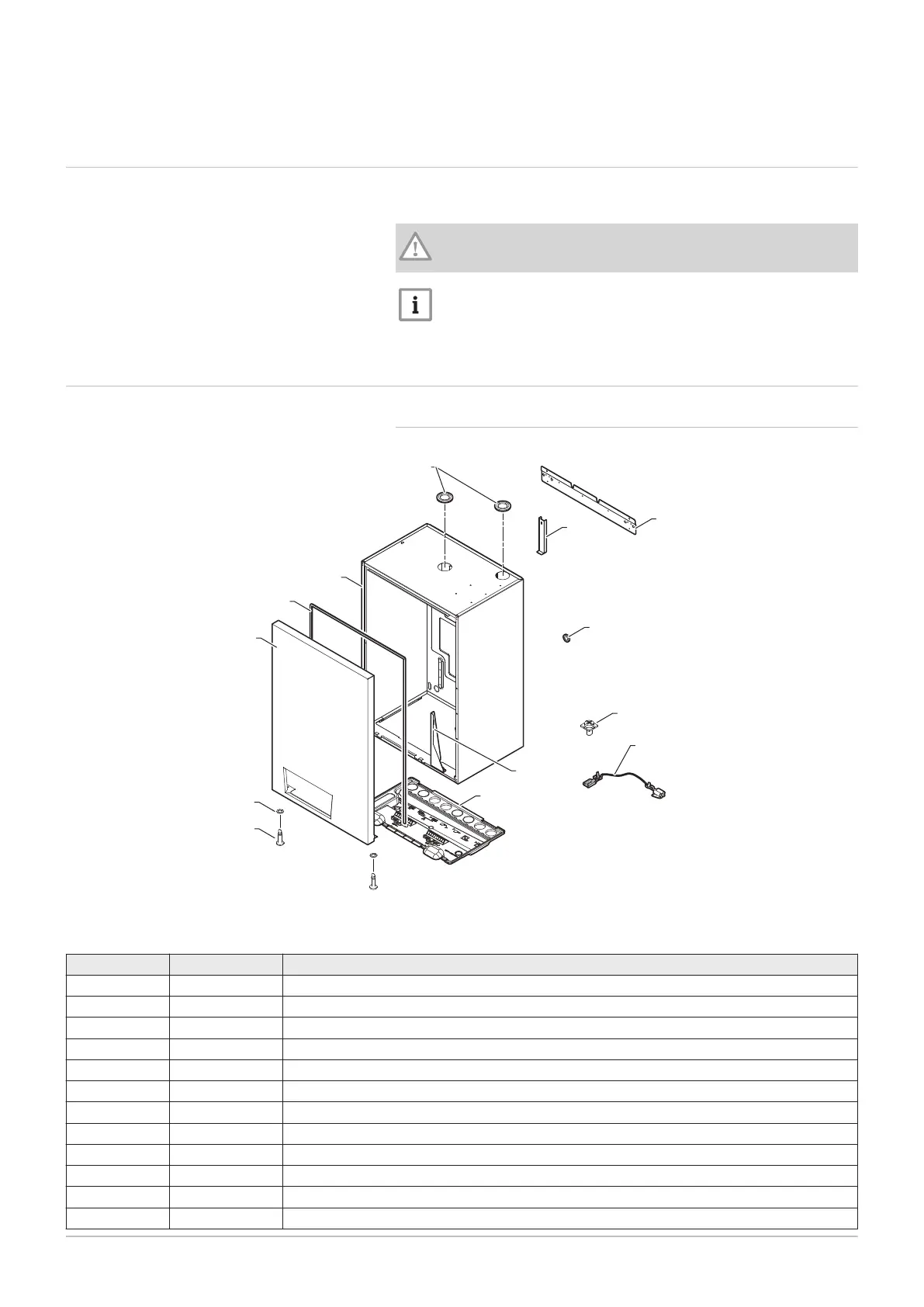

Fig.88
MW-3000616-3
2
6
8
14
13
5
7
3
1
9
10
11
12
Tab.101
Markers Reference Description
1 300025324 Assembled casing
2 300025281 Casing bottom
3 55125 Pipe feed
4 55125 Pipe feed for electrical back-up
5 7666862 Tank blocking plate
6 200020022 Blocking piece for control panel
7 300027772 Casing cross-bar support
8 300025063 Diaphragm cable grommet, dg-pvc 21/e1
9 7683389 Front panel
10 49826 Silicon leak-tightness profile 9 x 7.4
11 S101403 Quarter-turn screw
12 117010 Retaining ring
13 Spare parts
96 7762758 - v05 - 19082020
