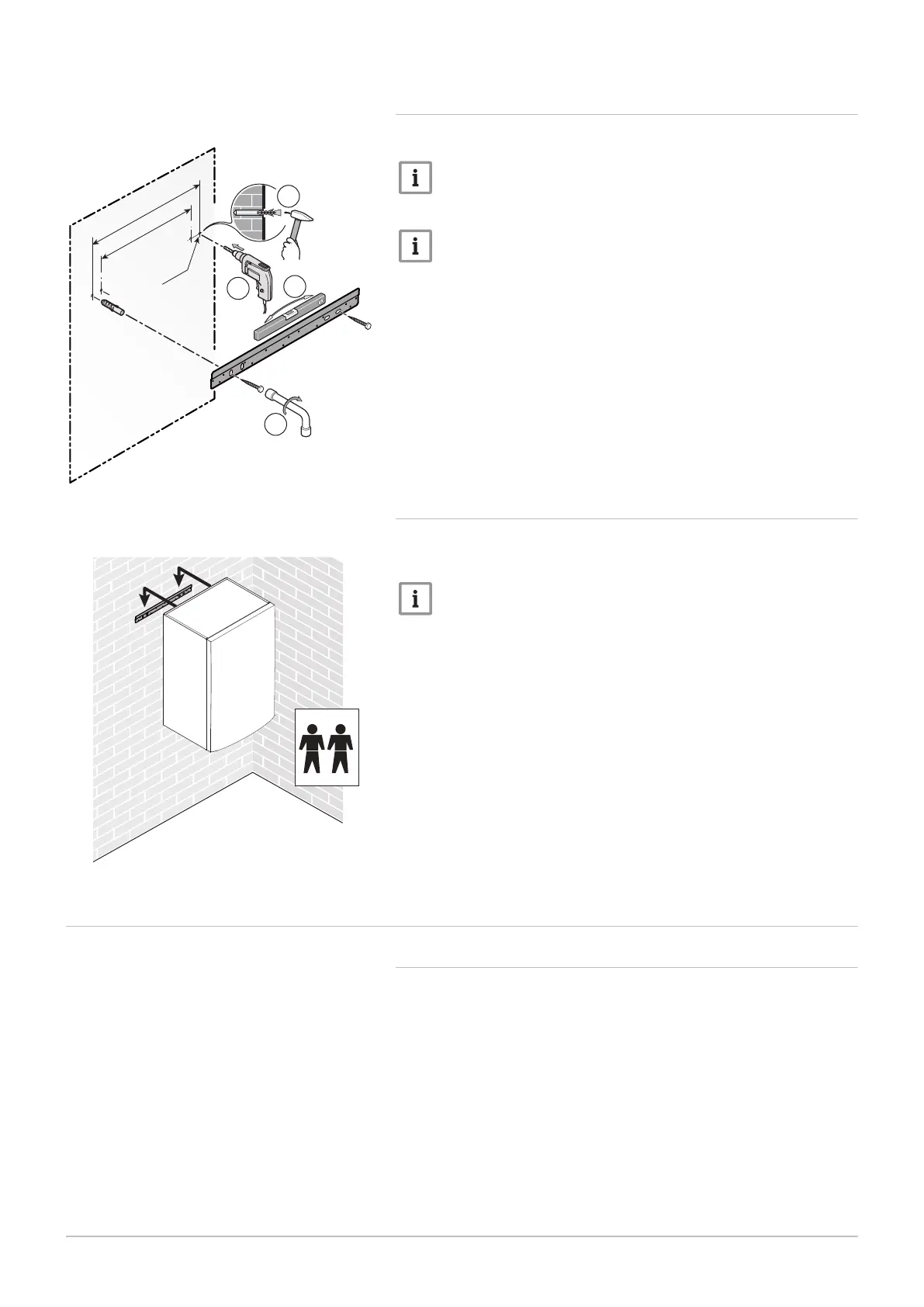

6.4.2 Fitting the assembly rail
1. Drill 2 holes with a diameter of 8 mm.
Important
Extra holes are provided in case one or other of the standard
locating holes prevents the correct location of the plug.
Important
Check that the wall is able to bear the weight of the indoor unit.
2. Put the plugs in place.
3. Fix the mounting rail to the wall using the hexagonal head screws
provided for this purpose. Set the level using a spirit level.
6.4.3 Mounting the unit on the wall
1. Position the indoor unit above the mounting rail so that it rests snugly
against it.
Important
If necessary, use suitable lifting equipment.
2. Gently lower the indoor unit.
6.5 Putting the outdoor unit in place
6.5.1 Allowing sufficient space for the outdoor unit
Minimum distances from the wall are necessary in order to guarantee
optimum performance.
Fig.20
MW-1001197-2
2
3
1
3
557.5
ø 8
457.
5
Fig.21
6 Installation
28 7762758 - v05 - 19082020
