7219708 - 01 (04/15) EcoBlue System 31
Before Installation 5
5.3.6 Clearances

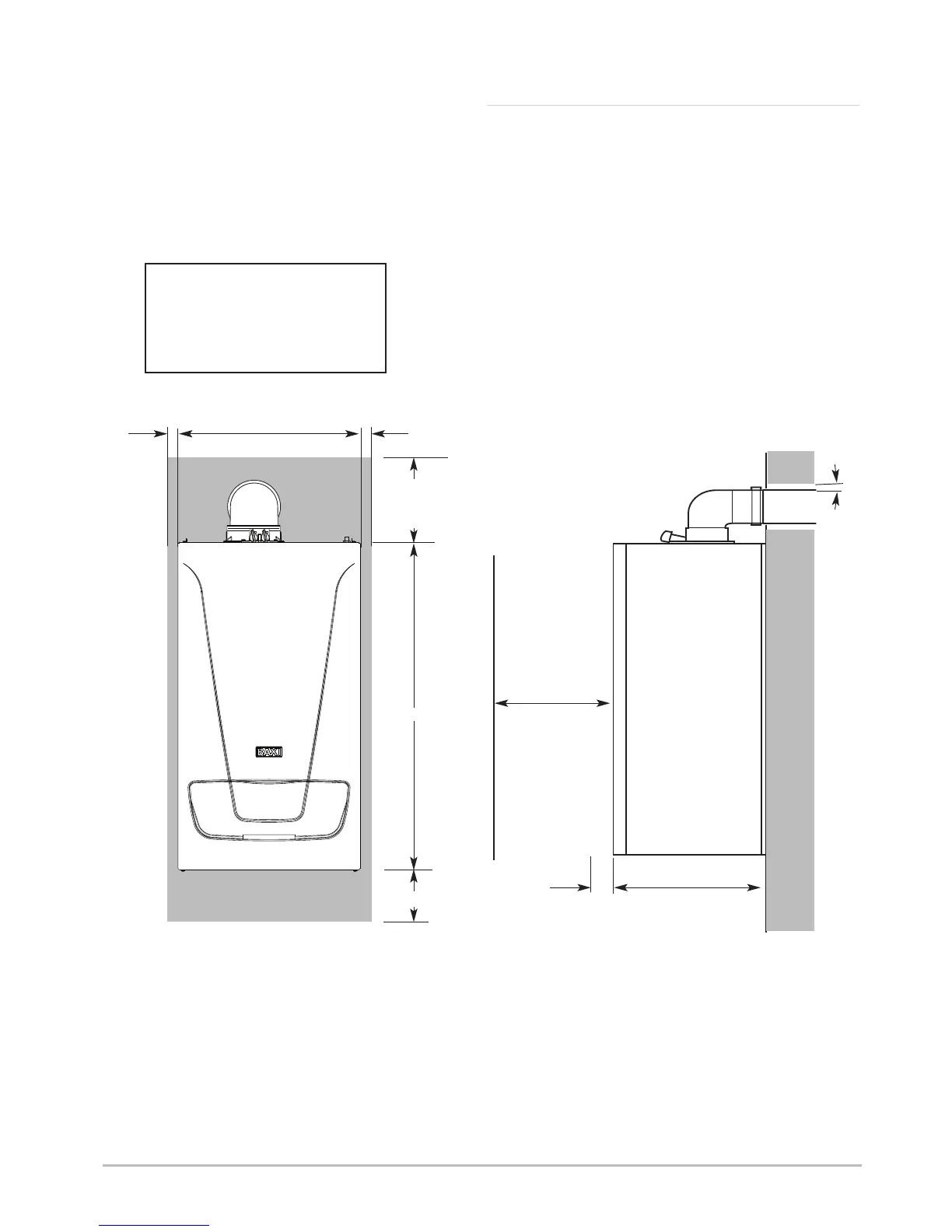

1. A flat vertical area is required for the installation of the boiler.
2. These dimensions include the necessary clearances around
the boiler for case removal, spanner access and air movement.
Additional clearances may be required for the passage of pipes
around local obstructions such as joists running parallel to the
front face of the boiler.
*This is MINIMUM recommended dimension. Greater clearance
will aid installation and maintenance.
150mm* Min
700mm
390mm
175 mm Min (300mm
Min if using 80/125mm
flueing system)
5mm Min
5mm Min
450mm Min
For Servicing
Purposes &
Operating the
Controls
In Operation
5mm Min
At least
1.5°
295mm
Fig.7
*This is MINIMUM
recommended dimension.
Greater clearance will aid
installation and maintenance.
See Section 14.1
‘32 Model Supplement’
for dimensions specific
to the 32 model
