13 Spare Parts
13 Spare Parts
A
B
C
D
F
K
O
P
M
Q
R
E
V
S
U
13.1 General
1. If, following the annual inspection or maintenance any part of
the boiler is found to need replacing, use Genuine Baxi Spare
Parts only.

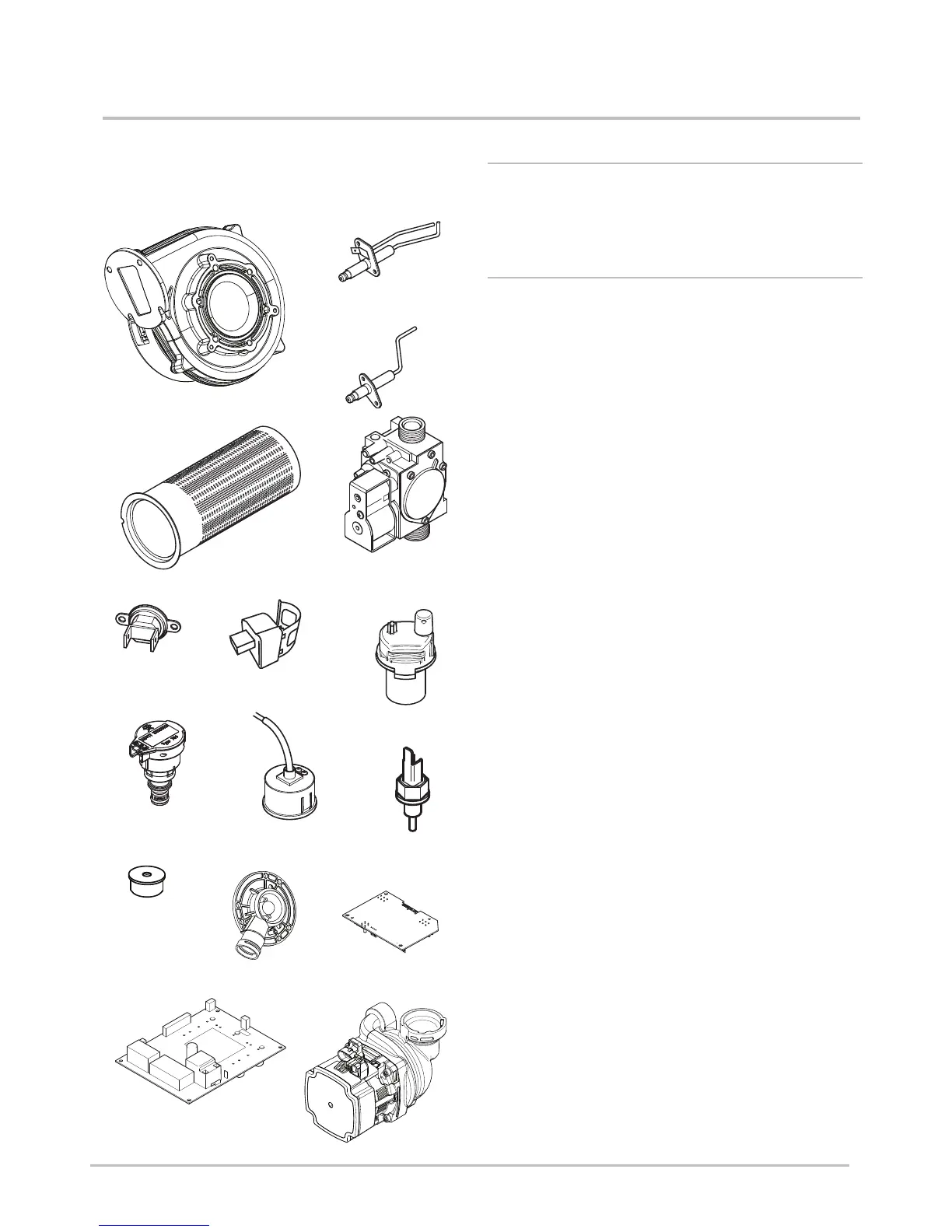

13.2 Spare Parts List
W
Key Description Manufacturers
No.
No. Part No.
A Fan 720768101
B Burner - 12/15/18/24 7212447
Burner - 28 7212449
Burner - 32 7212448
C Spark Ignition Electrode 720767301
D Flame Sensing Electrode 12/15 720767201
Flame Sensing Electrode 18/24/28/32 7211855
E Gas Valve 7214341
F Safety Thermostat 720765301
K Pump 7220533
M Heating Flow/Return Sensor 720747101
O Pump Automatic Air Vent 720777601
P Hydraulic Pressure Switch 720778001
Q Heating Pressure Gauge 7212896
R Flue Sensor 720851401
S PCB - 12 ErP 7222713
PCB - 15 ErP 7222714
PCB - 18 ErP 7222715
PCB - 24 ErP 7222716
PCB - 28 ErP 7222717
PCB - 32 ErP 7222718
U Ø3.8 Gas Nozzle Injector - 12 7212975
Ø4.2 Gas Nozzle Injector - 15/18 7212976
Ø5.0 Gas Nozzle Injector - 24 7211862
Ø5.6 Gas Nozzle Injector - 28 7214344
Ø6.0 Gas Nozzle Injector - 32 7212533
V Air/Gas Venturi - 12 7212977
Air/Gas Venturi - 15/18 7212978
Air/Gas Venturi - 24/28 7211858
Air/Gas Venturi - 32 7211859
W Boiler Control HMI PCB 7211868
