7219708 - 01 (04/15) EcoBlue System 41
Installation 6

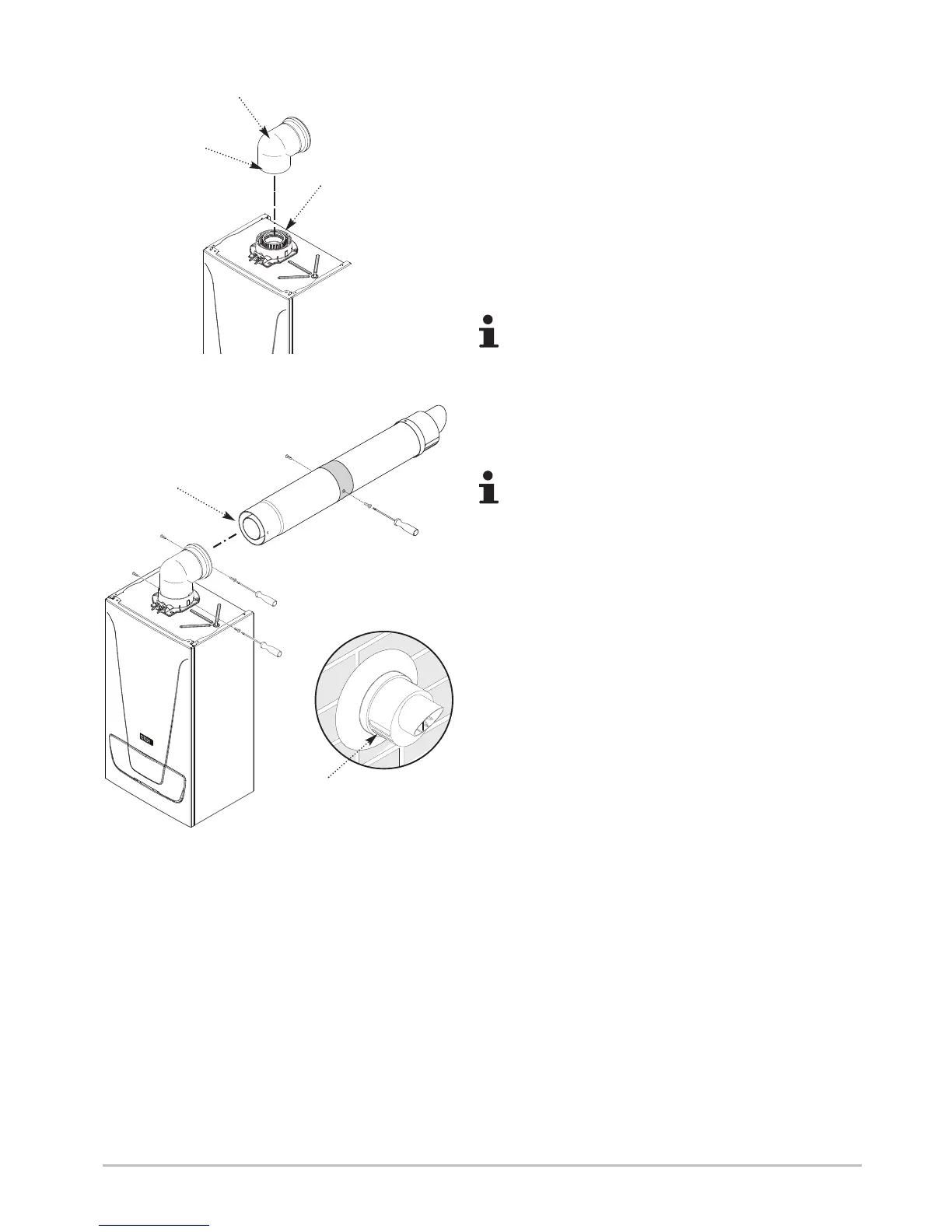

10. Remove the flue elbow and insert the flue through the hole
in the wall. Fit the flue trims if required, and refit the elbow to the
boiler adaptor, ensuring that it is pushed fully in. Secure the
elbow with the screws supplied in the boiler fitting kit (Fig. 29).
11. Draw the flue back through the wall and engage it in the
elbow. It may be necessary to lubricate to ease assembly of the
elbow and flue (Fig. 30).
12. Ensure that the terminal is positioned with the slots to the
bottom (Fig. 31). Secure to the elbow with the screws supplied
with the telescopic flue (Fig. 30).
It is essential that the flue terminal is fitted as shown to
ensure correct boiler operation and prevent water
entering the flue.
13. Make good between the wall and air duct outside the
building, appropriate to the wall construction and fire rating.
14. If necessary fit a terminal guard (see Section 5.3.11).
There must be no part of the air duct (white tube)
visible outside the property.
Slots at bottom
Fig. 30
Fig. 31
Adaptor
Apply the lubricant
supplied for ease of
assembly (do not
use any other type).
Ensure elbow is
fully engaged into
boiler adaptor
Fig. 29
Boiler Elbow
Apply the lubricant
supplied for ease of
assembly (do not use
any other type).
Ensure Flue is fully
engaged into Elbow
