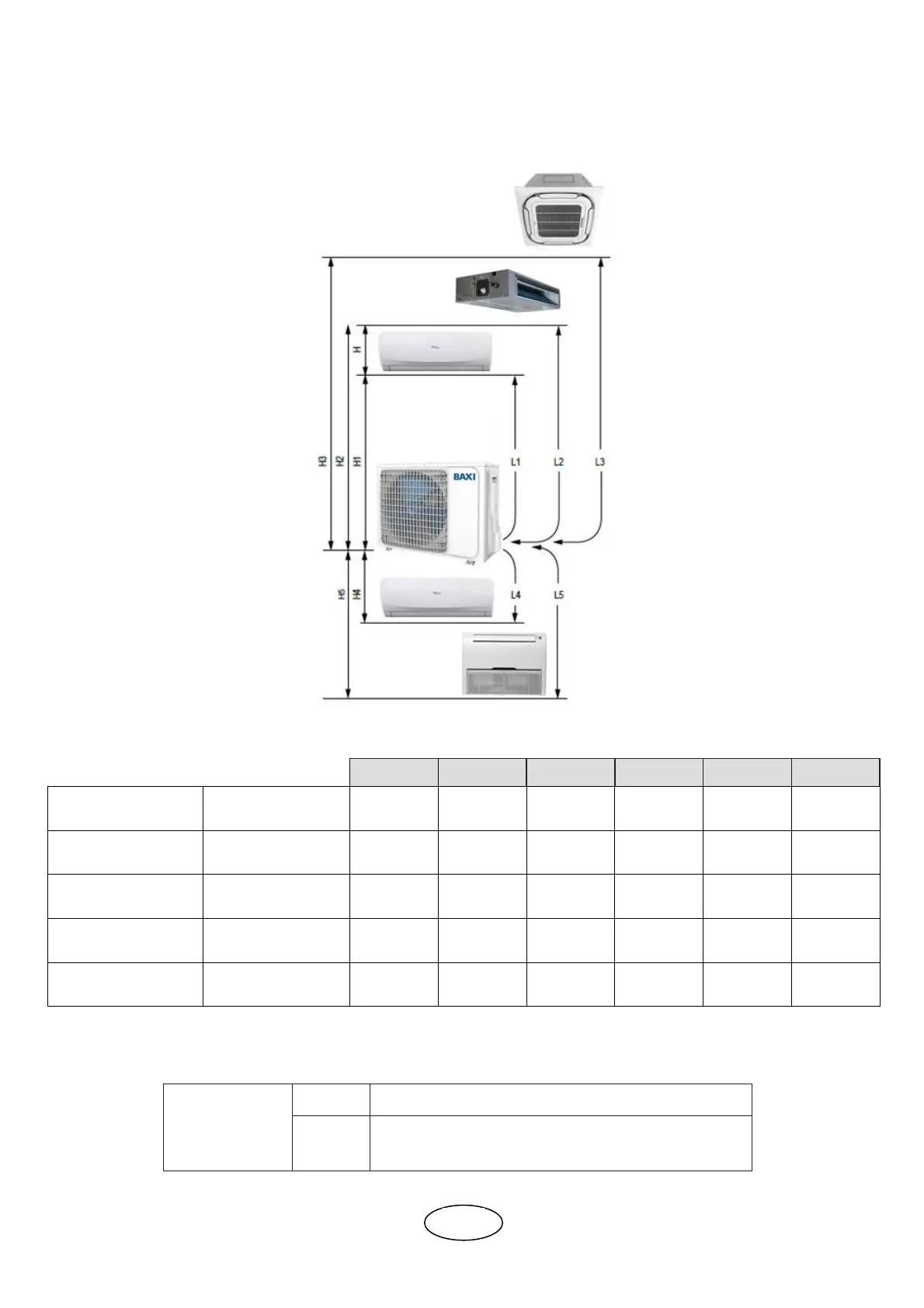

Length of refrigerant connections
Note: All the requirements below should be met at the same time:
LSGT40-2M
LSGT50-2M
LSGT60-3M
LSGT70-3M
LSGT100-4M
LSGT125-5M
Maximum piping
length to each IDU
L1,L2,L3,L4,L5 (m)
25
25
30
30
35
35
Maximum total piping
length to all IDU units
L1+L2+L3+L4+L5 (m)
40
40
60
60
80
80
Maximum height
between ODU & IDU
H1,H2,H3,H4,H5 (m)
15
15
15
15
15
15
Maximum height
between IDUs
H (m)
10
10
10
10
10
10
Meters of pre-charge
P (m)
15
15
22,5
22,5
30
37,5
Refrigerant adjustment: lf total pipe length exceeds P, additional refrigerant (R32) charge is
required. (The outdoor unit is charged with refrigerant for total pipe length up to P meters).
Pipe length
≤P m
No additional charge required
>P m
An additional charge required:
20 g/m x (refrigerant piping length (m) - P)
