6.1. CONNECTING THE PIPING
 The method for connecting the piping is the same for both units, indoor and outdoor.
 Connect the pipes to the unit. Tighten until the connection becomes firm and secure.

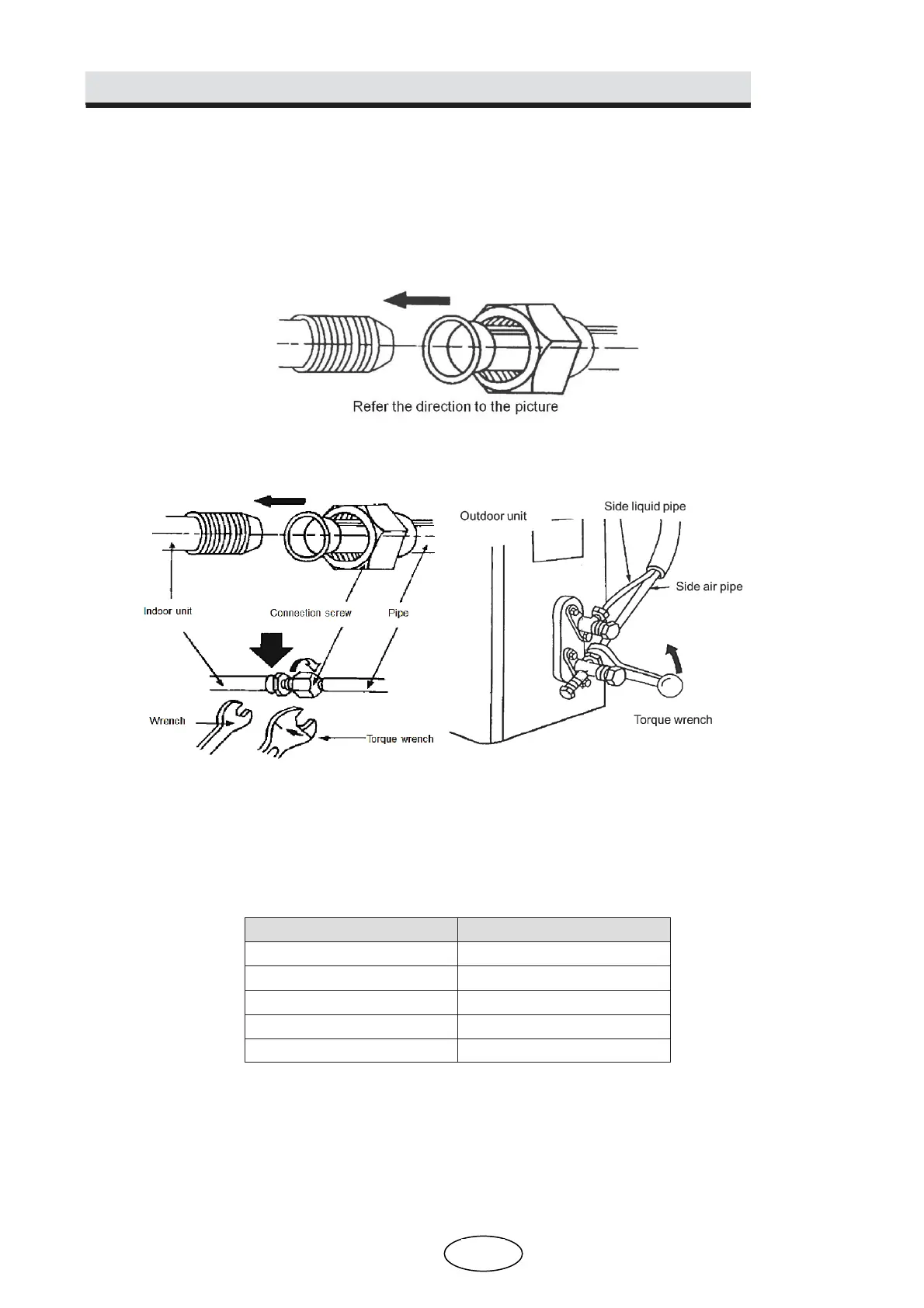

Follow the directions shown in the figure.
 Focusing on the center of the pipe, tighten the screw firmly.
 Tighten the conical nuts as shown in the figure by applying the corresponding torque
according to the diameter of the pipe.
PIPE DIAMETER
TORQUE
6.35 mm (1/4")
15-19 N*m
9.52 mm (3/8")
35-40 N*m
12.70 mm (1/2")
50-60 N*m
15.88 mm (5/8")
62-76 N*m
19.05 mm (3/4")
98-120 N*m
