7.1. POWER AND CONNECTION WIRING
The connection cables must comply with the specifications listed in the table below.
OUTDOOR UNIT MODEL
LSGT40-2M
LSGT50-2M
LSGT60-3M
LSGT70-3M
LSGT100-4M
LSGT125-5M
CONNECTION CABLE
SPECIFICATIONS
3x1.5 mm
2
+E
3x1.5 mm
2
+E
3x1.5 mm
2
+E
3x1.5 mm
2
+E
3x1.5 mm
2
+E
3x1.5 mm
2
+E
POWER CABLE
SPECIFICATIONS
2x2.5 mm
2
+E
2x2.5 mm
2
+E
2x2.5 mm
2
+E
2x4.0 mm
2
+E
2x4.0 mm
2
+E
2x4.0 mm
2
+E

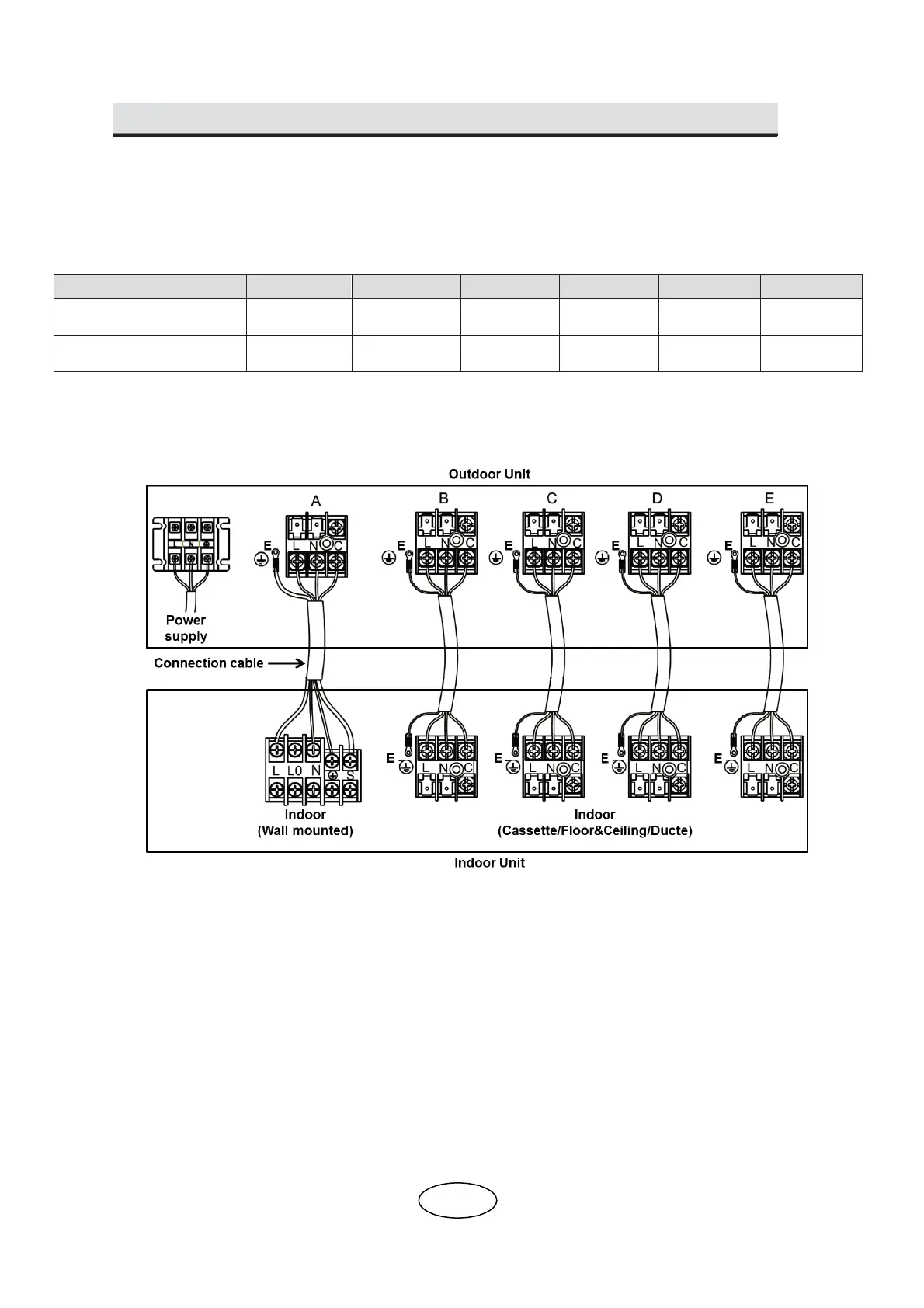

- Connect the power supply to the outdoor unit and conduct the wring connection as
shown on the below diagram:
 N.B.
- The connection wire of indoor units should be connected to the corresponding
terminal board; otherwise it will cause the unit failure or even damage the units.
- The diagram below is just an example of a 5x1 outdoor units connected. Wall,
floor/ceiling, cassette and duct can be connected to any of the outdoor unit terminal
boards.
- Connect the earth wire correctly, otherwise will cause the malfunction of some
electrical component and shock or fire indeed.
- Don't reverse the power polarity.
- Must fix the screw nail of the firmly wire, then drag the wire lightly, confirmation
whether it's firmly.
