baxter AK 98 - Fluid Part Components

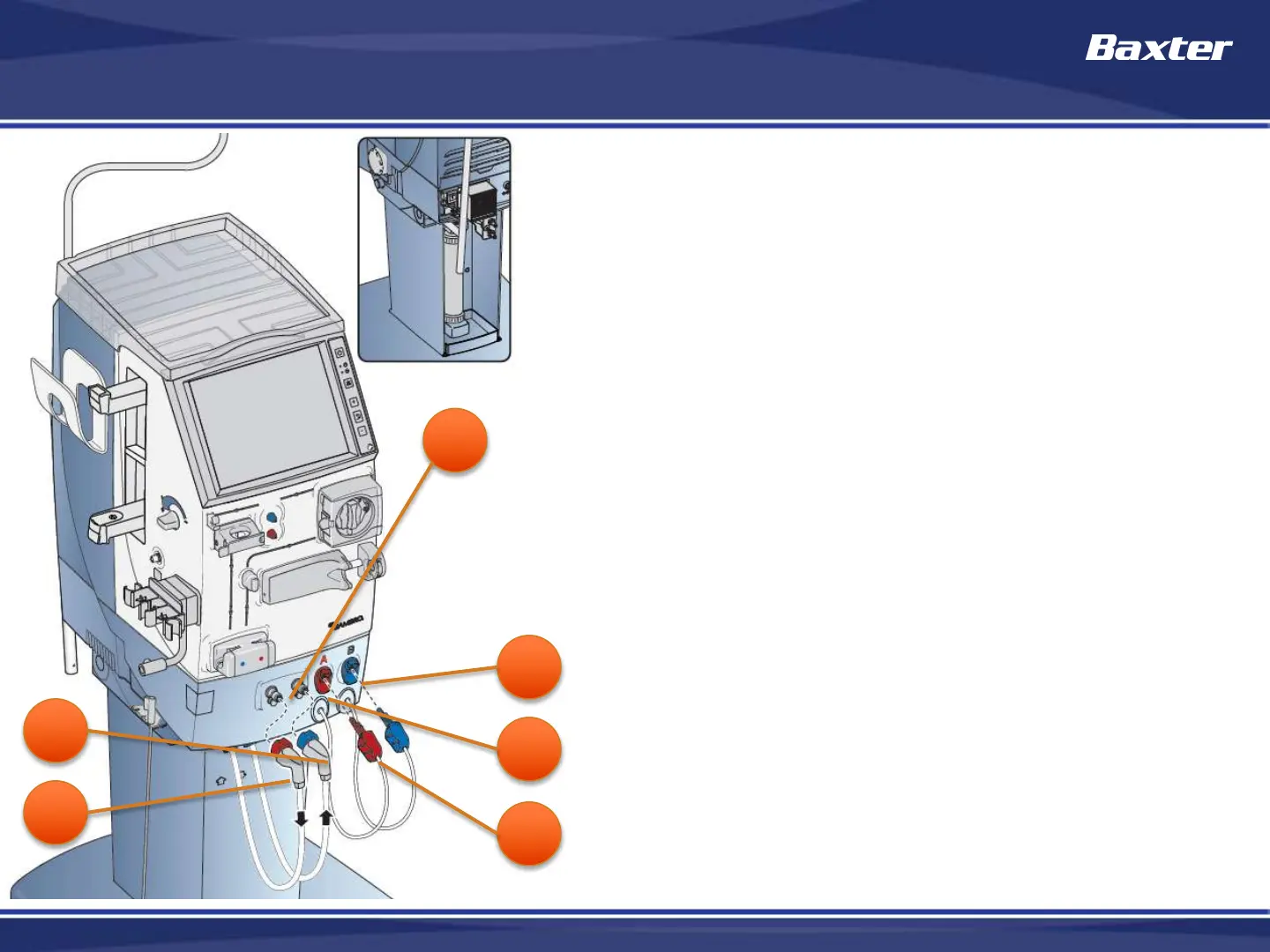

Machine external components – fluid part
4/29/20
6
1. Safety couplings for dialysis fluid tubes
2. Dialysis fluid tube from machine to
dialyzer (blue)
3. Dialysis fluid tube from dialyzer to
machine (red)
4. Stand-by port for red concentrate
connector
5. Stand-by port for blue concentrate
connector
6. Concentrate connector, red
1
2
3
4
5
6
