– 27 –
3. Lift up on bottom plate and remove from the four shoulder bolts. Remove bottom plate from oven
cavity. See gure 2.
4. Lift up on rack the top plate of the rack has cleared the locator pins. Slide the oven rack toward
yourself and out of baking chamber. See gure 3.
5. To reinstall oven rack, reverse removal instructions.

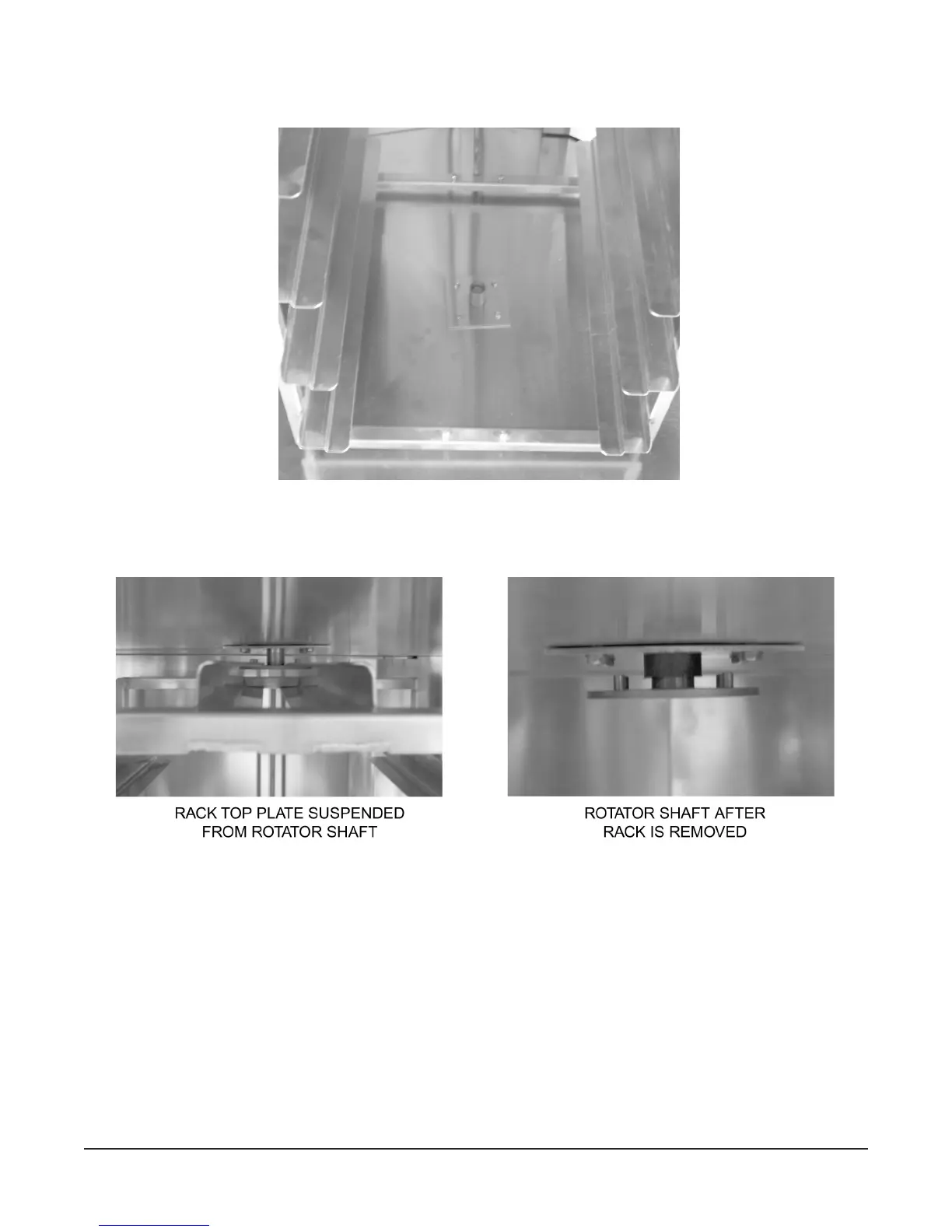

Fig. 2
Fig. 3
