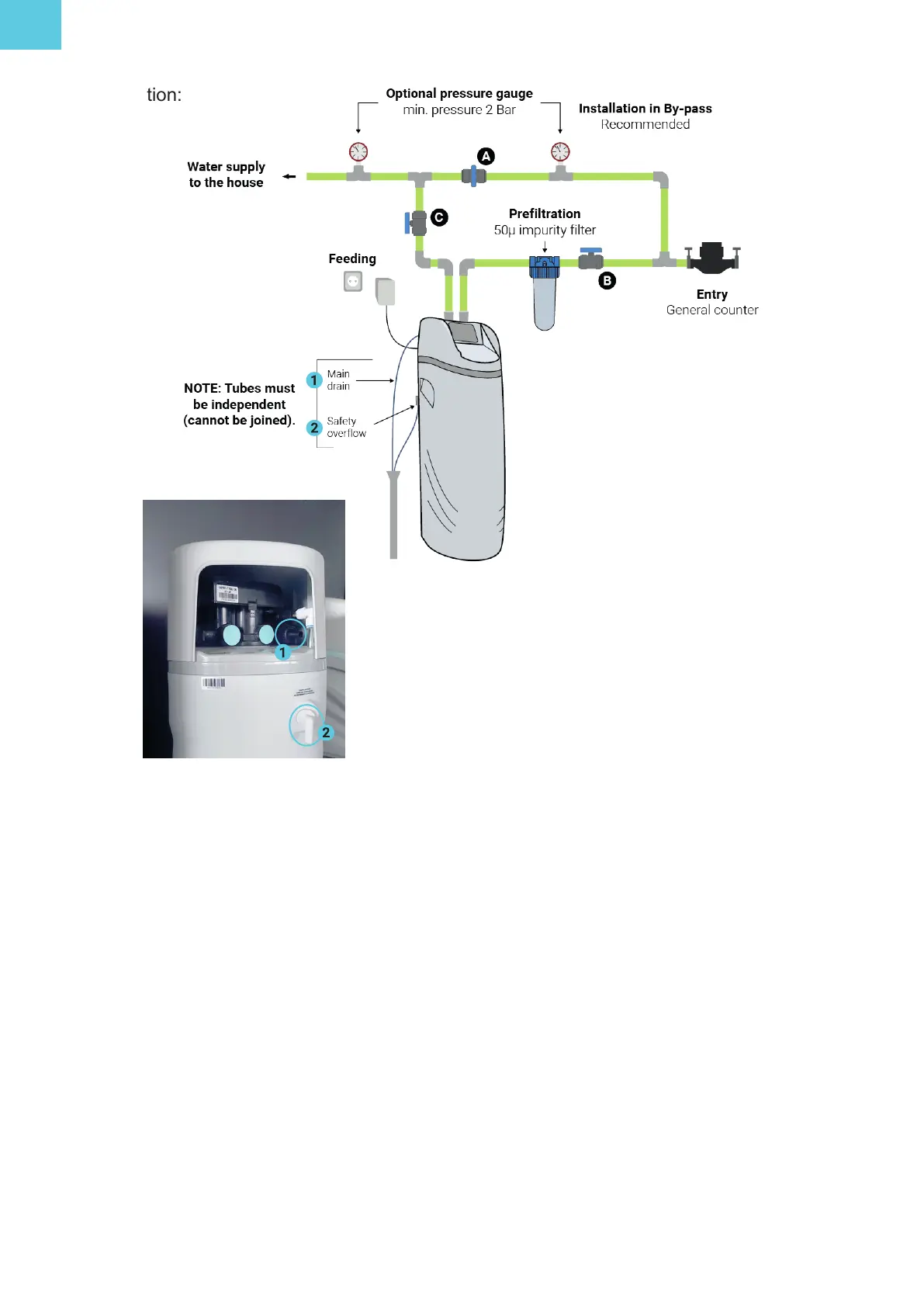

Illustration: Install 3 ball valves to connect the control valve and the inlet and outlet pipes.
Valve A is connected between the inlet and outlet. Valve B is connected to the inlet of the
control valve. The C valve is connected to the outlet of the control valve. When the resin
tank needs to be repaired, you will need to open valve A and close valves B and C. When
using the equipment, you must close valve A and open valves B and C.
- The drain connection of the valve must be a maximum of 2 m above it. The optional
overow line should be above the drain. It is forbidden to install a water shut-o󰀨 system in
the drainage lines.
- Each pipe must be supported on an independent xed support, preventing the control
valve from being damaged by the weight of the pipes.
- Please make sure that the drain and overow lines do not connect to each other,
and are close to the drain so that wastewater ows quickly.
Installation:
