BY-PASS PLACEMENT DETAIL
Screw the 2 pieces that are placed in the By-
Pass. They are held by pressure clips; remove the
clips and release the 2 pieces to screw them into
the inlet and outlet with their gasket (do not put
Teon).
Remember to
connect the meter
cable. Make sure the
cable reaches the
end of the anchor.
When the equipment is electrically connected, the rst thing that will appear on the screen is the type of valve
(69P3) and then it changes to -00-, in this position it is held for approximately 20 seconds.
Finally, place the By-Pass: It is placed under pressure (it is recommended to put lubricant in the joints).
Make sure that the turbine is in place (it can
accidentally fall when handling the by-pass).

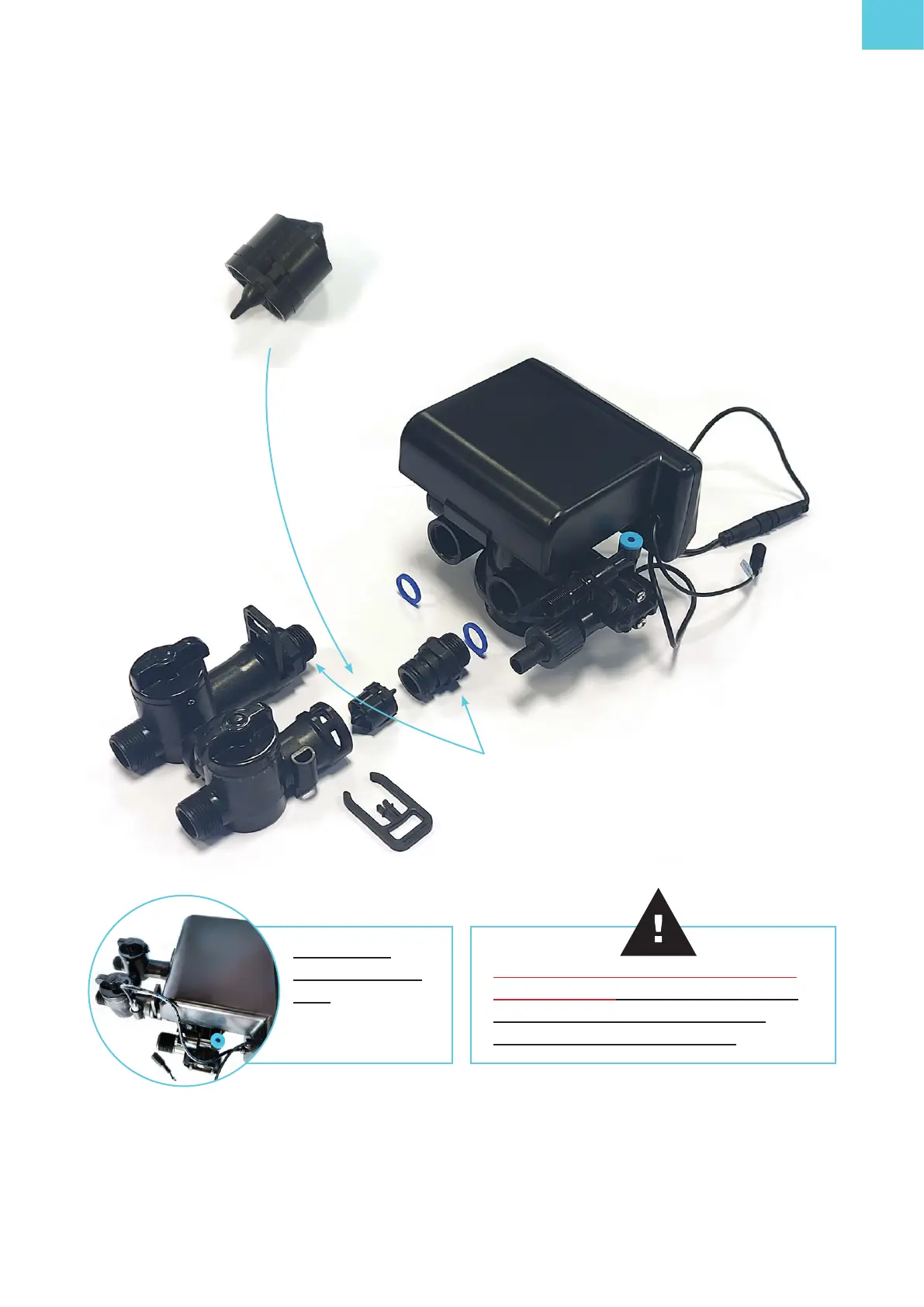

First of all, disassemble the by-pass and separate the components.
By-pass
Clip
Valve
Turbine
* It is forbidden to put Teon or any other
bonding material (in case of using Teon,
or any other material, the system will
automatically be out of warranty).
