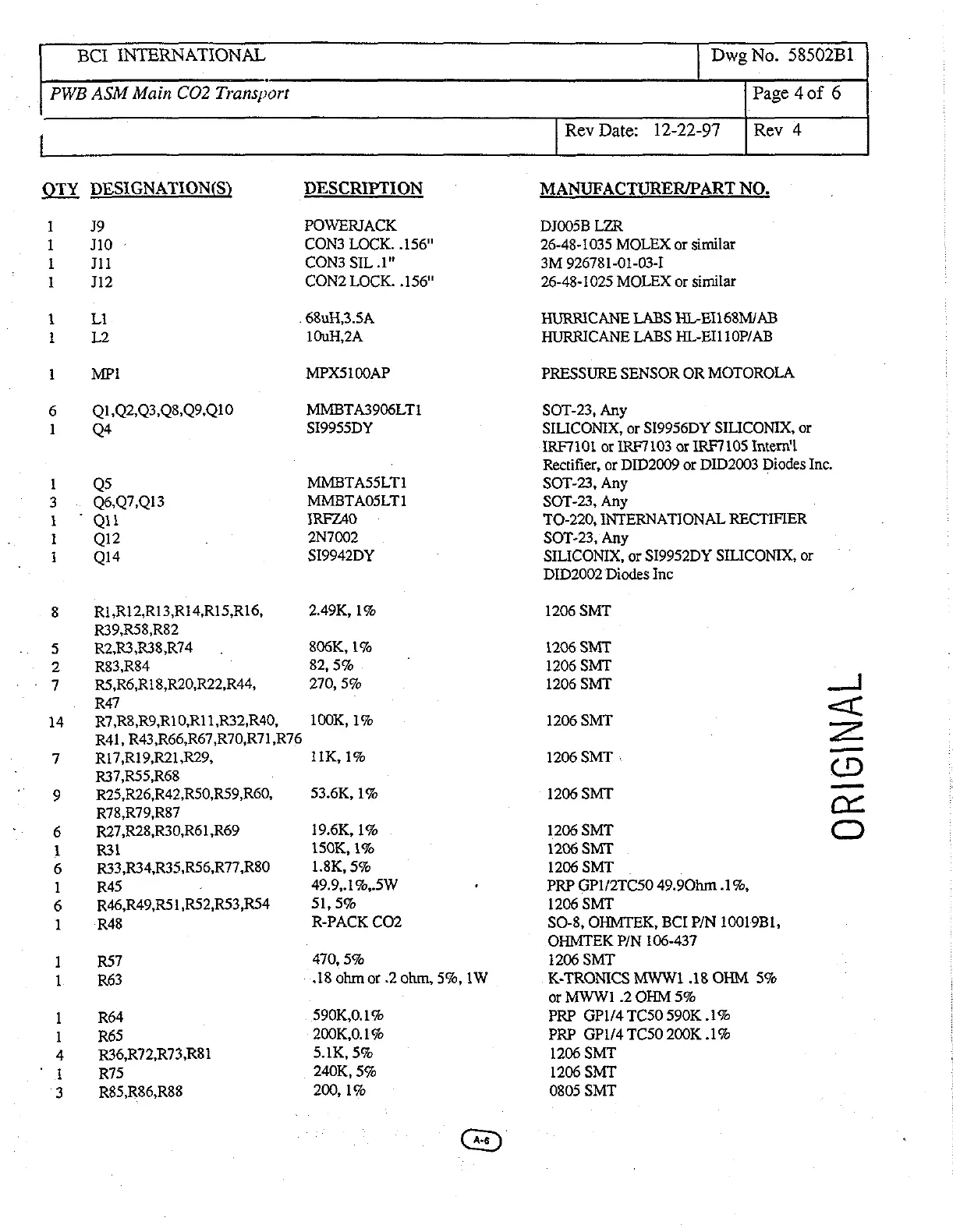

BCI INTERNATIONAL
Dwg No. 58502B1
PWB ASM Main CO2 Transport Page 4 of 6
| Rev Date: 12-22-97 Rev 4
QTY DESIGNATION(S) DESCRIPTION MANUEACTURER/PART NO.
I 19 POWERJACK DJ005B LZR
1 no - CON3 LOCK. .156" 26-48-1035 MOLEX or similar
1 ni CON3 SIL.1" 3M 926781-01-03-I
1 12 CON2 LOCK. .156" 26-48-1025 MOLEX or similar
1 τι . 680H,3.5A HURRICANE LABS HL-EI168M/AB
1 12 10uH,2A HURRICANE LABS HL-EI110P/AB
1 MPI MPX5100AP PRESSURE SENSOR OR MOTOROLA
6 Q1,Q2,Q3,Q8,Q9,Q10 MMBTA3906LTI SOT-23, Any
1 04 SI9955DY SILICONIX, or SI9956DY SILICONIX, or
IRF7101 or IRF7103 or IRF7105 Intern'l
・ Rectifier, or DID2009 or DID2003 Diodes Inc.
1 Q5 MMBTASSLTI SOT-23, Any
3 Q6,Q7,Q13 MMBTAOSLT1 SOT-23, Any
1 Qu JRFZ40 TO-220, INTERNATIONAL RECTIFIER
1 Q12 2N7002 SOT-23, Any
i 014 $19942DY SILICONIX, or $19952DY SILICONIX, or
DID2002 Diodes Inc
8 R1,R12,R13,R14,R15,R16, 2.49K, 1% 1206 SMT
R39,R58,R82
5 R2,R3,R38,R74 806K, 1% 1206 SMT
2 R83,R84 82, 5% 1206 SMT
7 RS,R6,R18,R20,R22,R44, 210, 5% 1206 SMT ~
R47 <
14 R7,R8,R9,R10,R11,R32,R40, 100K, 1% 1206 SMT
R41, R43,R66,R67,R70,R71,R76 =
7 RI7,RI9,R21,R29, 11K, 1% 1206 SMT TR
R37,R55,R68 CD
9 R25,R26,R42,R50,R59,R60, 53.6K, 1% 1206 SMT ニン
R78,R79,R87 oz
6 R27,R28,R30,R61,R69 19.6K, 1% 1206 SMT O
1 R31 150K, 1% 1206 SMT
6 R33,R34,R35,R56,R77,R80 1.8K, 5% 1206 SMT .
1 R45 . 49.9,.1%,.5W PRP GP1/2TC50 49.90hm .1%,
6
R46,R49,R51,R52,R53,R54
51,
5%
1206
SMT
1 R48 R-PACK CO2 SO-8, OHMTEK, BCI P/N 10019B1,
OHMTEK P/N 106-437
1 R57 470, 5% 1206 SMT
1 R63 „18 ohm or .2 ohm, 5%, W K-TRONICS MWWI .18 OHM 5%
or MWWI .2 OHM 5%
R64 590K,0.1% PRP GP1/4 TC50 590K .1%
R65 200K,0.1% PRP GP1/4 TCS0 200K .1%
R36,R72,R73,R81 5.1K, 5% 1206 SMT
R75 240K, 5% 1206 SMT
R85,R86,R88 200, 1% 0805 SMT
