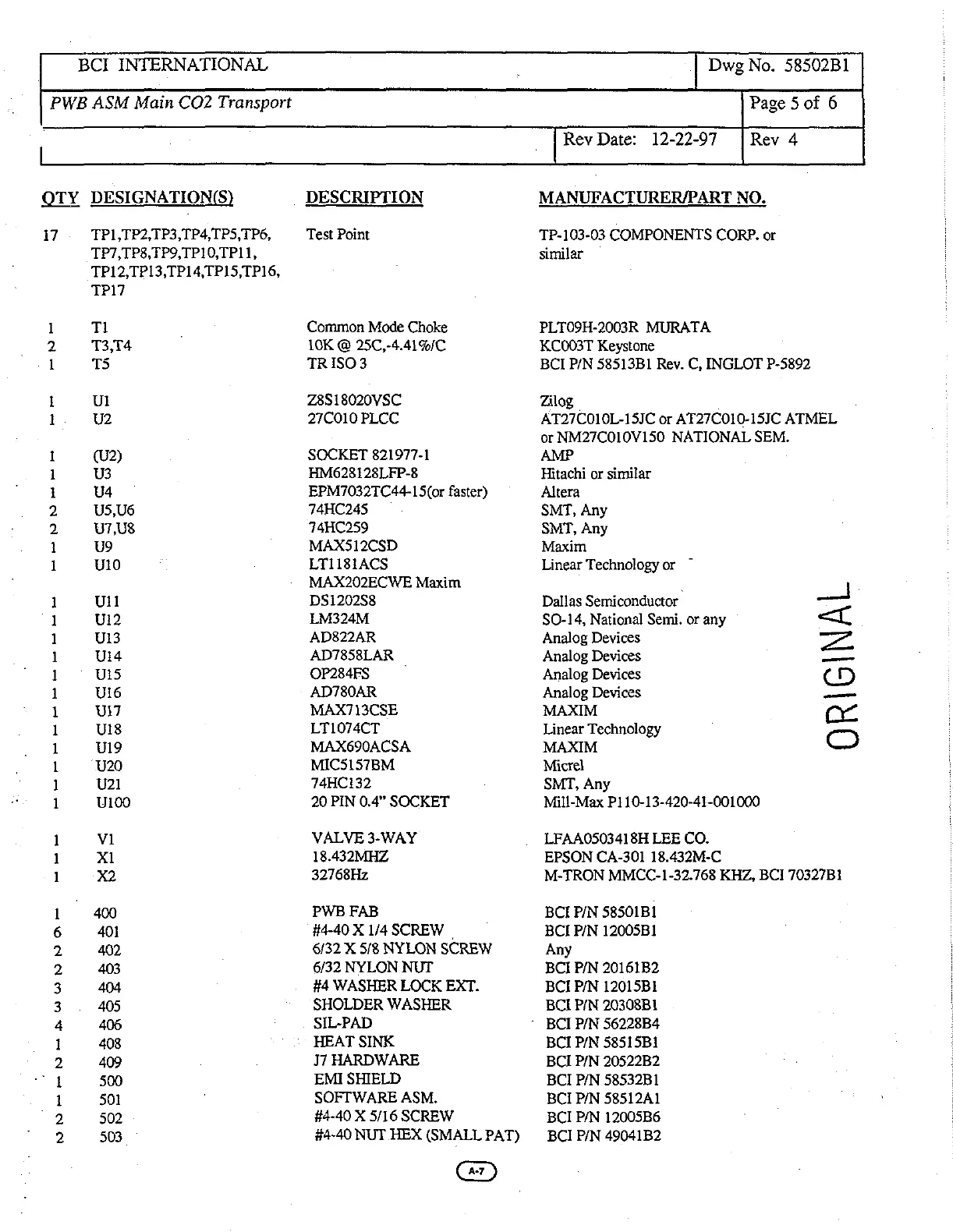

BCI INTERNATIONAL
Dwg No. 58502B1
CD
PWB ASM Main CO2 Transport Page 5 of 6
Rev Date: 12-22-97 | Rev 4
l
QTY DESIGNATION(S) DESCRIPTION MANUFACTURER/PART NO.
17 TP1,TP2,TP3,TP4,TP5,TP6, Test Point TP-103-03 COMPONENTS CORP. or
TP7,TP8,TP9,TP10,TP11, similar
TP12,TP13,TP14,TP15,TP16,
TP17
1 TI Common Mode Choke PLTO9H-2003R MURATA
2 T3,T4 10K © 25C,-4.41%/C KC003T Keystone
1 TS TRISO 3 BCI P/N 58513B1 Rev. C, INGLOT P-5892
1 Ul Z8S18020VSC Zilog
1 U2 27C010 PLCC AT27CO10L-15JC or AT27C010-15JC ATMEL
or NM27C010V150 NATIONAL SEM.
1 (02) SOCKET 821977-1 AMP
1 U3 HM628128LFP-8 Hitachi or similar
1 U4 EPM7032TC44-1 Stor faster) Altera
2 US,U6 74HC245 SMT, Any
2 U7,U8 74HC259 SMT, Any
1 U9 IMAXS12CSD Maxim
1 U10 LT1181ACS Linear Technology or ©
MAX202ECWE Maxim 、 A .
1 Ull DS1202S8 Dallas Semiconductor
1 UR LM324M $0-14, National Semi. or any <<
1 Ul3 AD322AR Analog Devices =
1 014 AD7858LAR Analog Devices —
1 UiS OP284FS 」 Analog Devices cD
1 016 AD780AR Analog Devices ーー 一
1 UI? MAX713CSE MAXIM oc
1 018 LT1074CT Linear Technology
1 U19 MAX690ACSA MAXIM O
1 U20 MICS157BM Micrel
1 U21 74HC132 SMT, Any
1 U100 20 PIN 0.4” SOCKET Mill-Max P110-13-420-41-001000
1 VI VALVE 3-WAY LFAA0503418H LEE CO.
1 XI 18.432MHZ EPSON CA-301 18.432M-C
1 X2 32768Hz M-TRON MMCC-1-32.768 KHZ, BCI 70327B1
1 400 PWB FAB BCI P/N 58501B1
6 401 #4-40 X 1/4 SCREW | BCI P/N 12005B1
2 402 6/32 X 5/8 NYLON SCREW Any
2 403 6/32 NYLON NUT BCI P/N 20161B2
3 404 #4 WASHER LOCK EXT. BCI P/N 12015B1
3 405 SHOLDER WASHER BCI P/N 20308B1
4 406 SIL-PAD BCI P/N 56228B4
1 408 HEAT SINK BCI P/N 58515B1
2 409 J7 HARDWARE BCI P/N 20522B2
da 500 EMI SHIELD BCI P/N 58532B1
1 501 SOFTWARE ASM. BCI P/N 58512A1
2 502 #4-40 X 5/16 SCREW BCI P/N 12005B6
2 503 #4-40 NUT HEX (SMALL PAT) BCI P/N 49041B2
