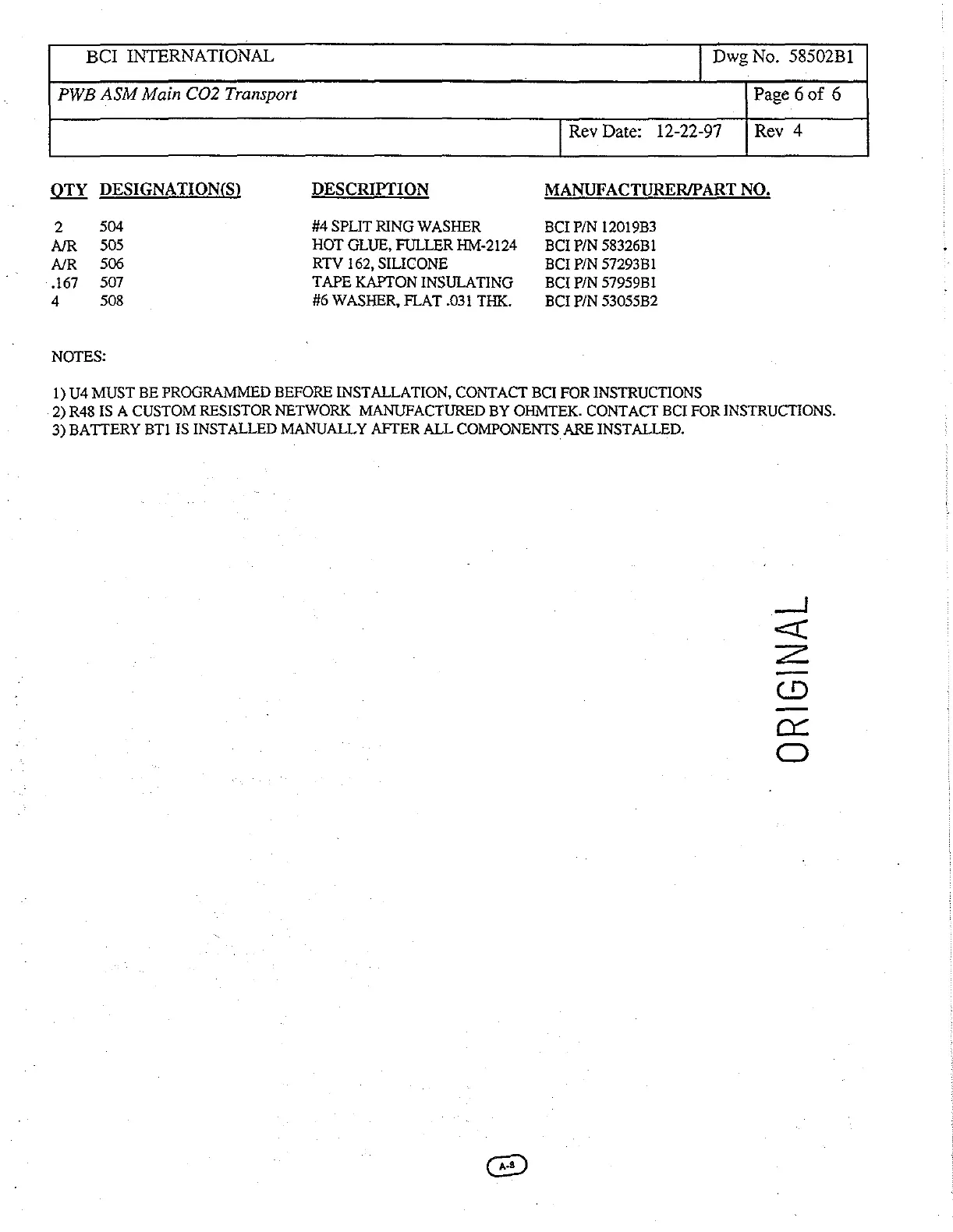

BCI INTERNATIONAL Dwg No. 58502B1
PWB ASM Main CO2 Transport Page 6 of 6
Rev Date: 12-22-97 Rev 4
QTY DESIGNATION(S) DESCRIPTION MANUFACTURER/PART NO.
2 504 #4 SPLIT RING WASHER BCI P/N 12019B3
AR 505 HOT GLUE, FULLER HM-2124 BCI P/N 58326B1
AR 506 RTV 162, SILICONE BCI P/N 57293B1
.167 507 TAPE KAPTON INSULATING BCI P/N 57959B1
4 508 #6 WASHER, FLAT .031 THK. BCI P/N 53055B2
NOTES:
1) U4 MUST BE PROGRAMMED BEFORE INSTALLATION, CONTACT BCI FOR INSTRUCTIONS
. 2) R48 IS A CUSTOM RESISTOR NETWORK MANUFACTURED BY OHMTEK. CONTACT BCI FOR INSTRUCTIONS.
3) BATTERY BT1 IS INSTALLED MANUALLY AFTER ALL COMPONENTS ARE INSTALLED.
ORIGINAL
