BDCOM GP3600-08 GPON Hardware Installation Manual
- 12 -
3.3 Connecting the Port
3.3.1 Connecting the Console Port
BDCOM GP3600-08 GPON has a Console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard RJ45 plug. After you connect the console port to the serial port of PC through
a console cable, you can configure and monitor BDCOM GP3600-08 GPON by running
a terminal emulation software, such as super Windows terminal. The cable is provided
according to the host. The communication parameters of the terminal serial port can be
set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the
value from 1 to 8.

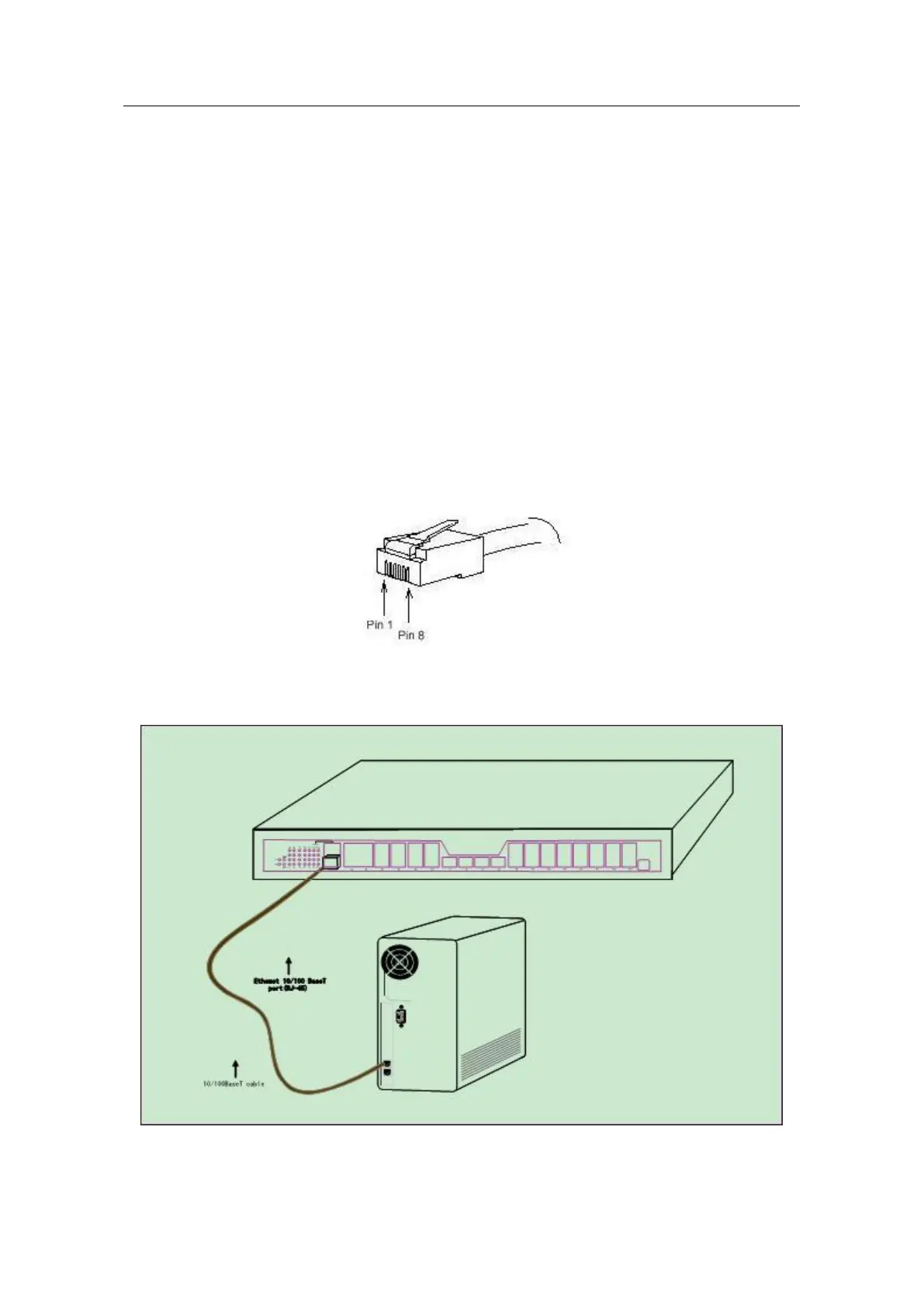

Figure 3- 3 RJ-45 connector of the console port
Figure 3-4 Connecting the console port of BDCOM GP3600-08 GPON and the computer
