Bdcom GP3600-08 GPON User Manual

BDCOM GP3600-08 GPON Hardware Installation Manual
- 17 -
3
Receiving the normal phase of the data
RXD1+
Input
4
Sending the normal phase of the data
TXD2+
Output
5
Sending the paraphase of the data
TXD2-
Output
6
Receiving the paraphase of the data
RXD1-
Input
7
Receiving the normal phase of the data
RXD2+
Input
8
Receiving the paraphase of the data
RXD1-
Input
The direct-through or cross network cable has the function of auto-identification, so the
five classes of direct-through/cross network cables can be used to connect other
Ethernet devices.

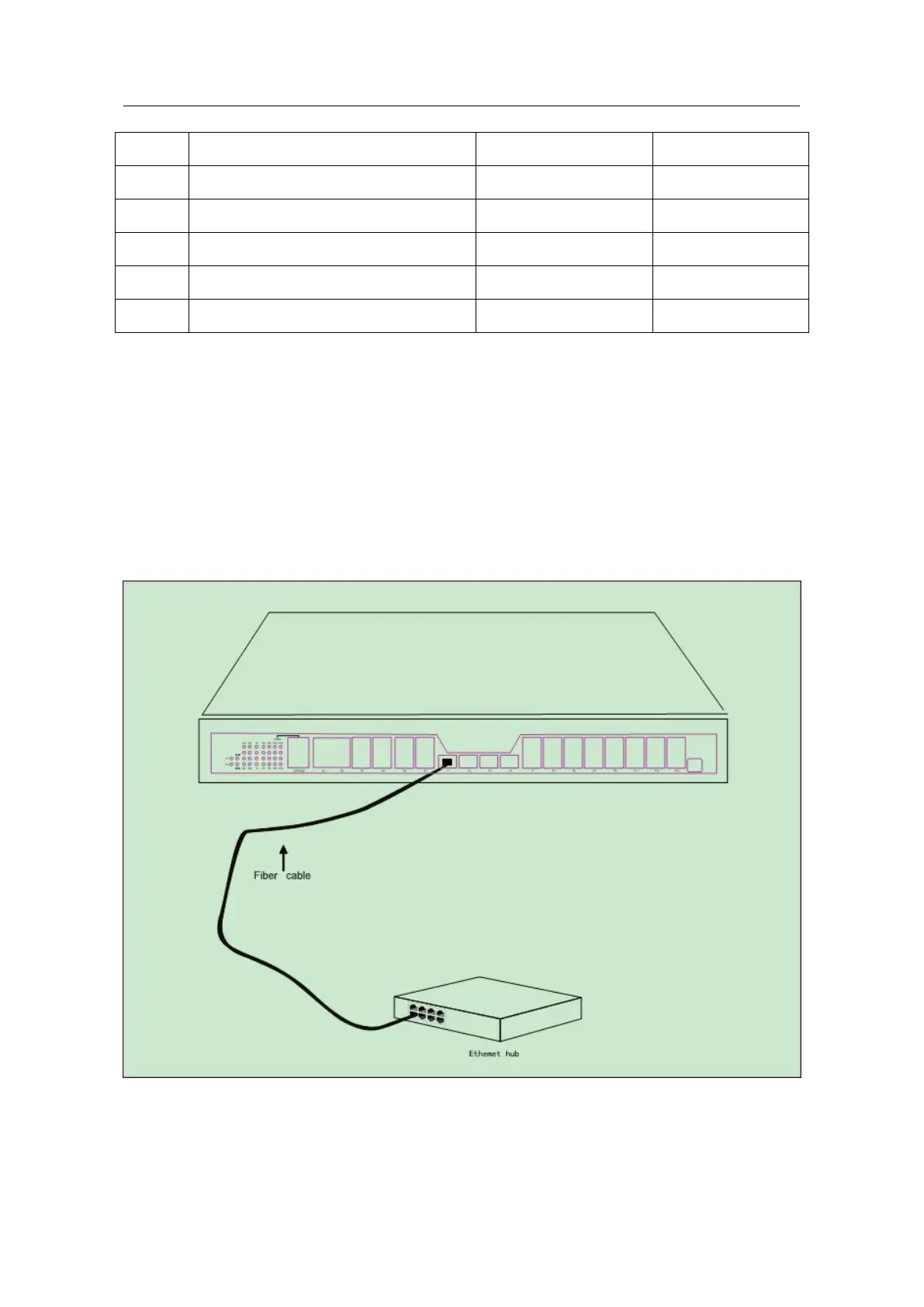

3.3.5 Connecting 10GE Ethernet Optical Ports
BDCOM GP3600-08 provides with 4 fixed 10GE optical ports (T1~T4). On the right side
is the LINK/ACT indicators. If the indicator is always on, the system is linked normally; if
the indicator flickers, the data is forwarded through the port. To use the optical port, you
need connect it to the SFP optical module, and then to other Ethernet terminal devices
through an optical fiber.
