Bdcom S1010-8P-120 User Manual

( S1006-4P-65)
Turn on the switch
Plug in the nega ve connector of the provided power cord into the power socket of the device,
and the posi
ve connector into a power outlet . A er the device is powered on, it begins the Power-
On Self-Test. The PWR LED indicator will light on all the
me.

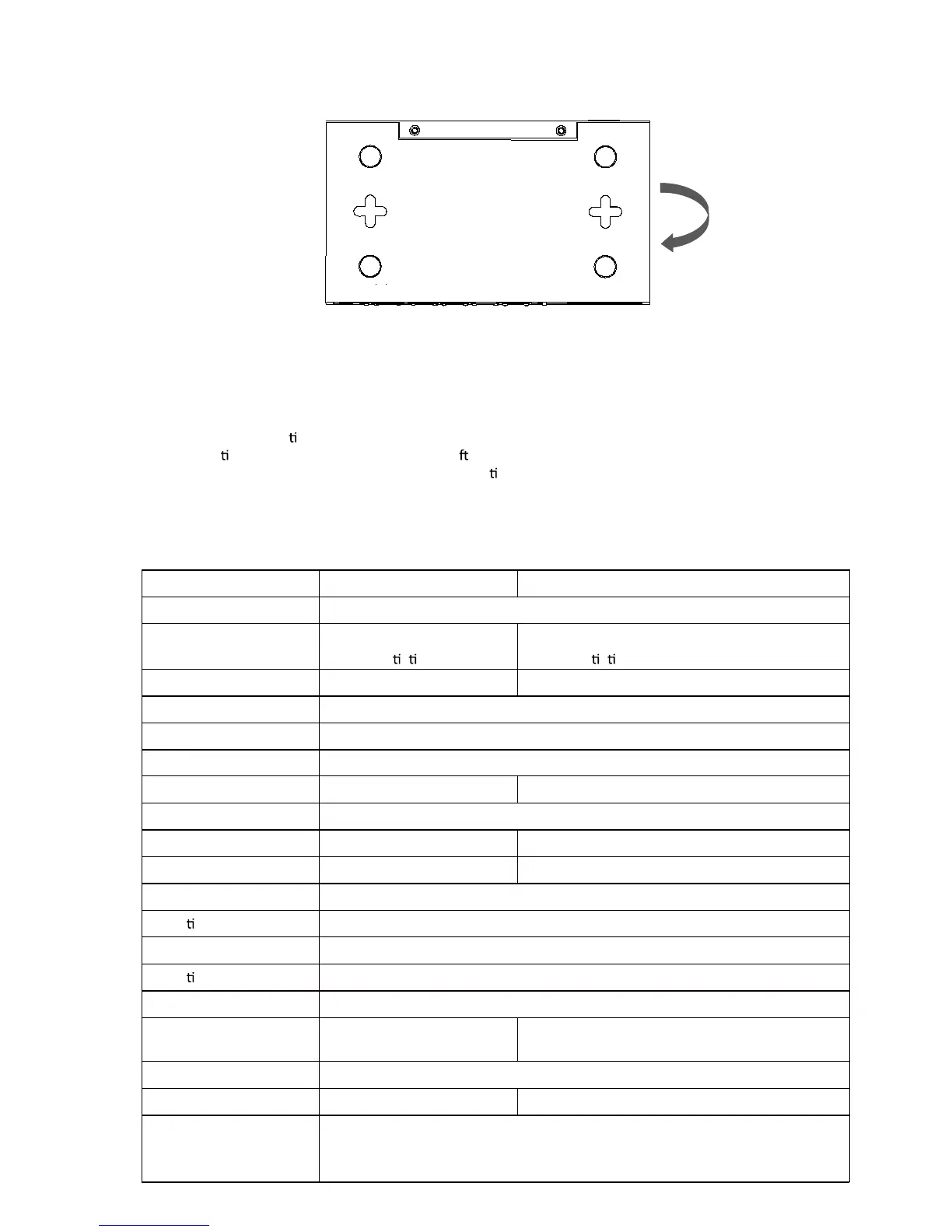

Appendix
Specification
Model S1010-8P-120 S1006-4P-65
Standard IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Port 10*10/100Mbps
Auto-Nego a on RJ45 Port
6*10/100Mbps
Auto-Nego a on RJ45 Port
PoE Port Port1~8 Port1~4
PoE Power Output 32W Max
PoE Power on RJ-45 Mode A 1/2(+) 3/6(-)
VLAN and CCTV Support
PoE total 120W 60 W
Forwarding Mode Storage-and-Forward
Switching Capacity 2G 1.2 G
Forwarding Rate 1.488Mpps 0.89Mpps
Input Power Supply AC 100-240V 50/60Hz
Opera on Temperature 0℃ ~40℃
Storage Temperature -40 ℃ ~70℃
Opera on Humidity 10%~90%RH non-condensing
Storage Humidity 5%~90%RH non-condensing
MAC Address Table 8K, Auto-learning, Auto-aging 2K, Auto-learning, Auto-aging
Fan Fanless
Dimensions（L*W*H) 220*150*44mm 160*93*32mm
Network Media(cable)
10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
100BASE-FX:MMF,SMF
6
