AR6201 - RT6201 - RCU6201 - AR6203

DV 14307.03 Issue 1 09/2013 Page 2-39

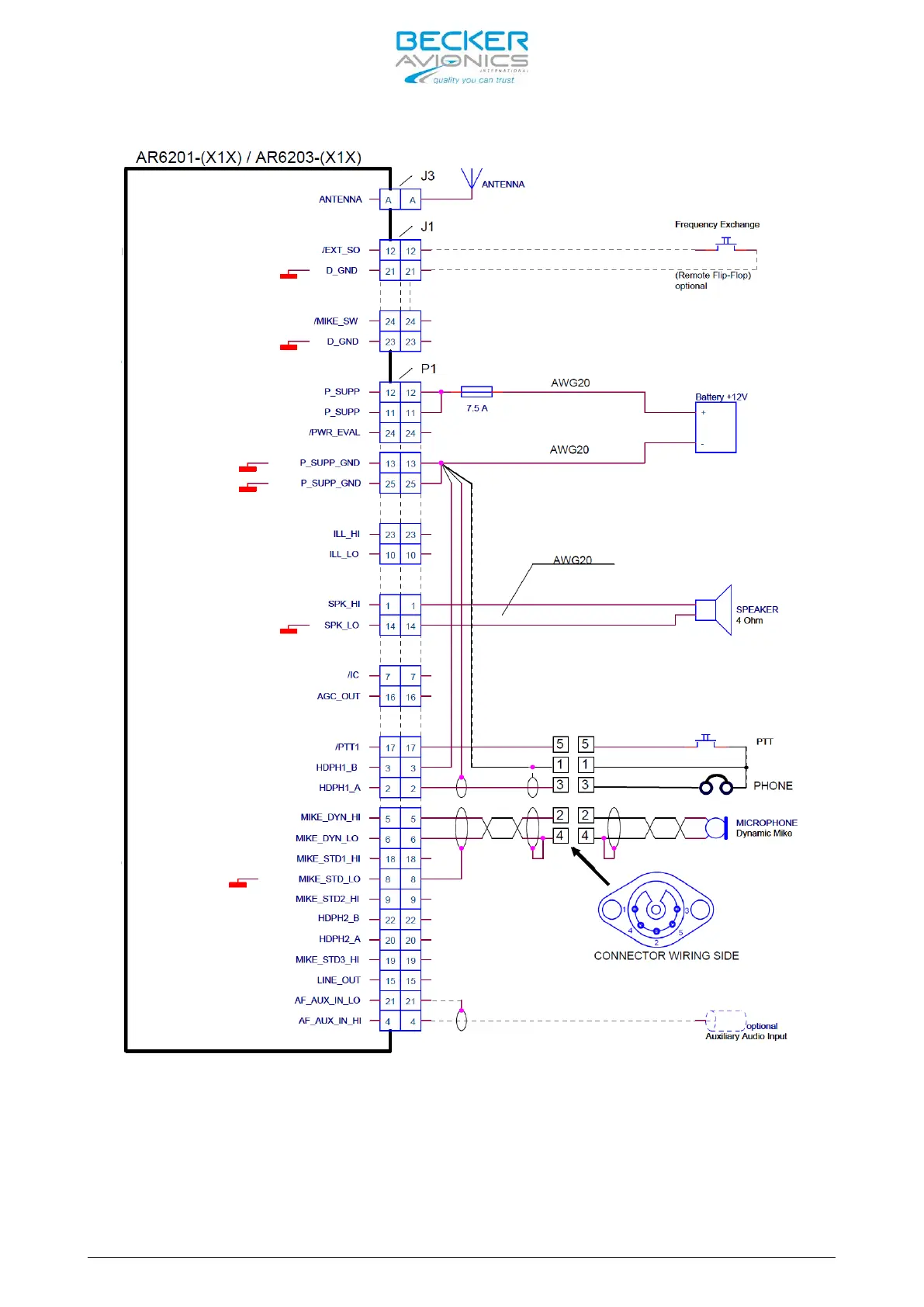

Figure 2-20: Typical Wiring for Single Seat Glider (5-pol DIN Jack)

Note: Frequency Exchange Switch is optional
