AR6201 - RT6201 - RCU6201 - AR6203

Page 2-50 DV 14307.03 Issue 1 09/2013

Installation Wiring Diagram

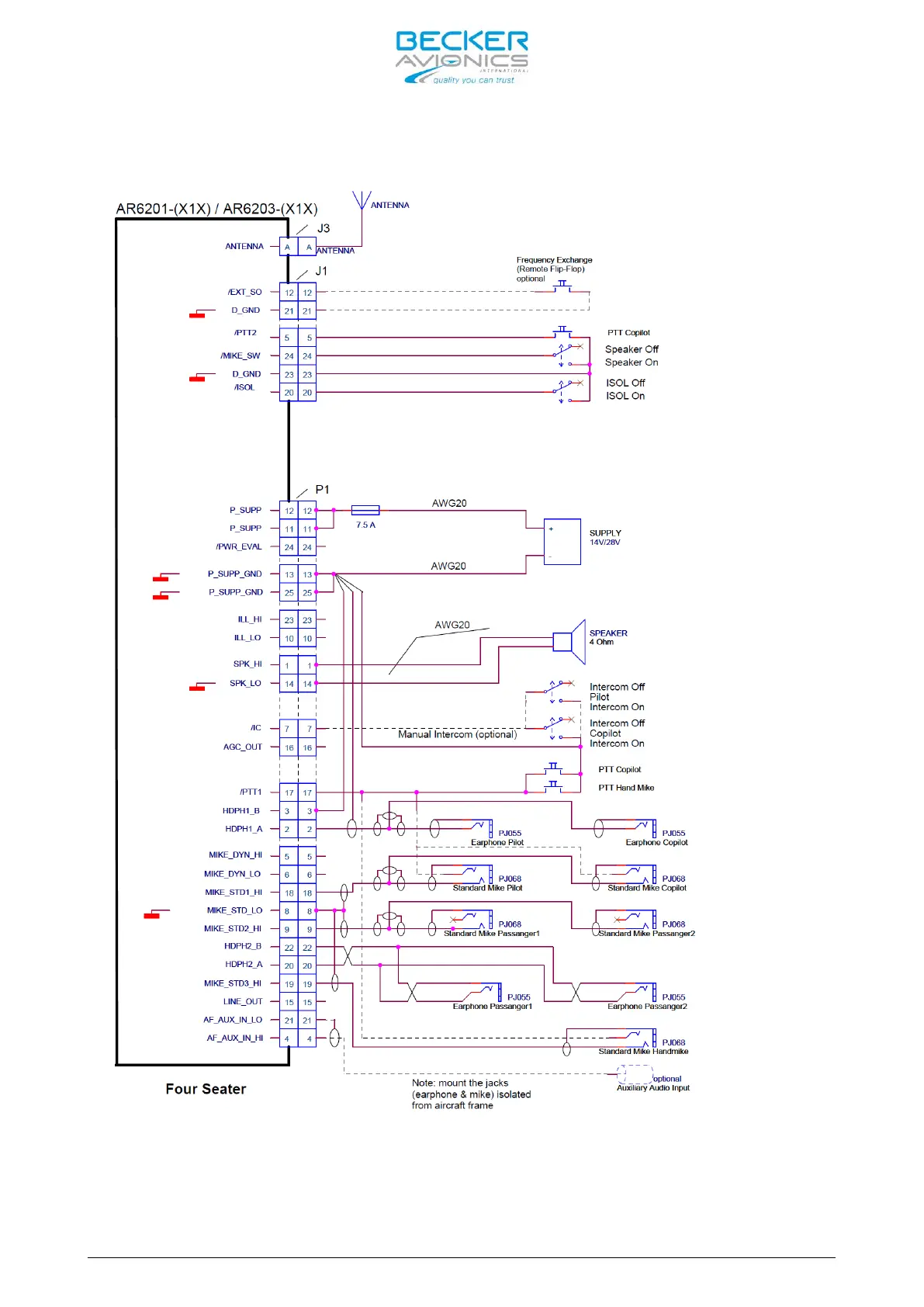

Figure 2-25: Typical Wiring for Aircraft with Four Seats (no TANDEM)
