AR6201 - RT6201 - RCU6201 - AR6203

Page 2-56 DV 14307.03 Issue 1 09/2013

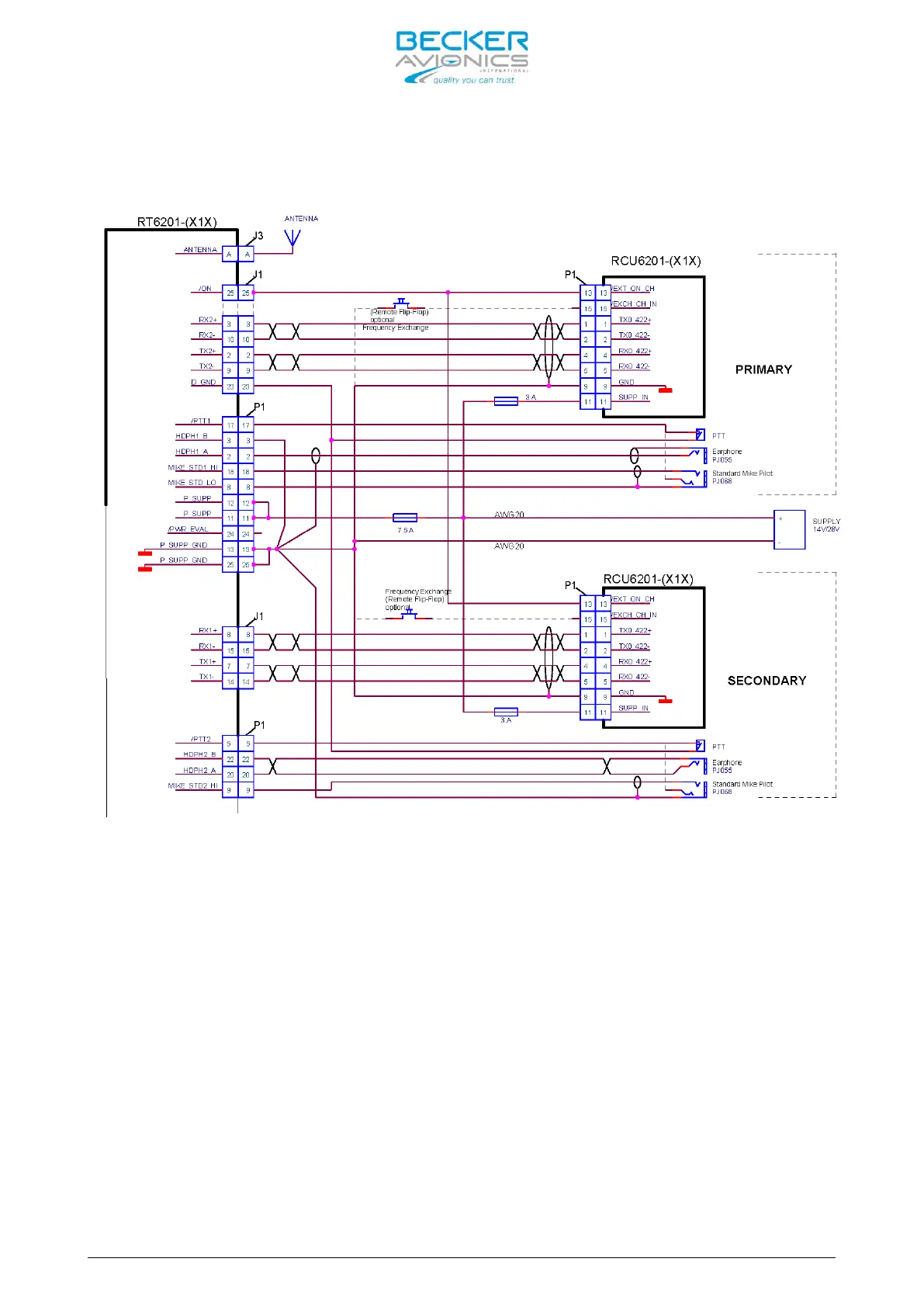

Installation Wiring Diagram

Figure 2-29: Typical Wiring for Twin Seat with RT6201 Tandem Configuration

Note: Setup configuration only via Primary RCU
