Operating Instructions
18
2
Assembly instructions
The assembler must check in advance that the resistance of the brickwork and/or the
roller shutter box or sunshade system meets requirements (torque of the drive plus
weight of the shutter curtain).
Caution
Electrical connections may only be carried out by a qualified electrician.
Prior to assembly, the power supply should be disconnected. Please give
the enclosed connection information to the electrical fitter carrying out
the work.

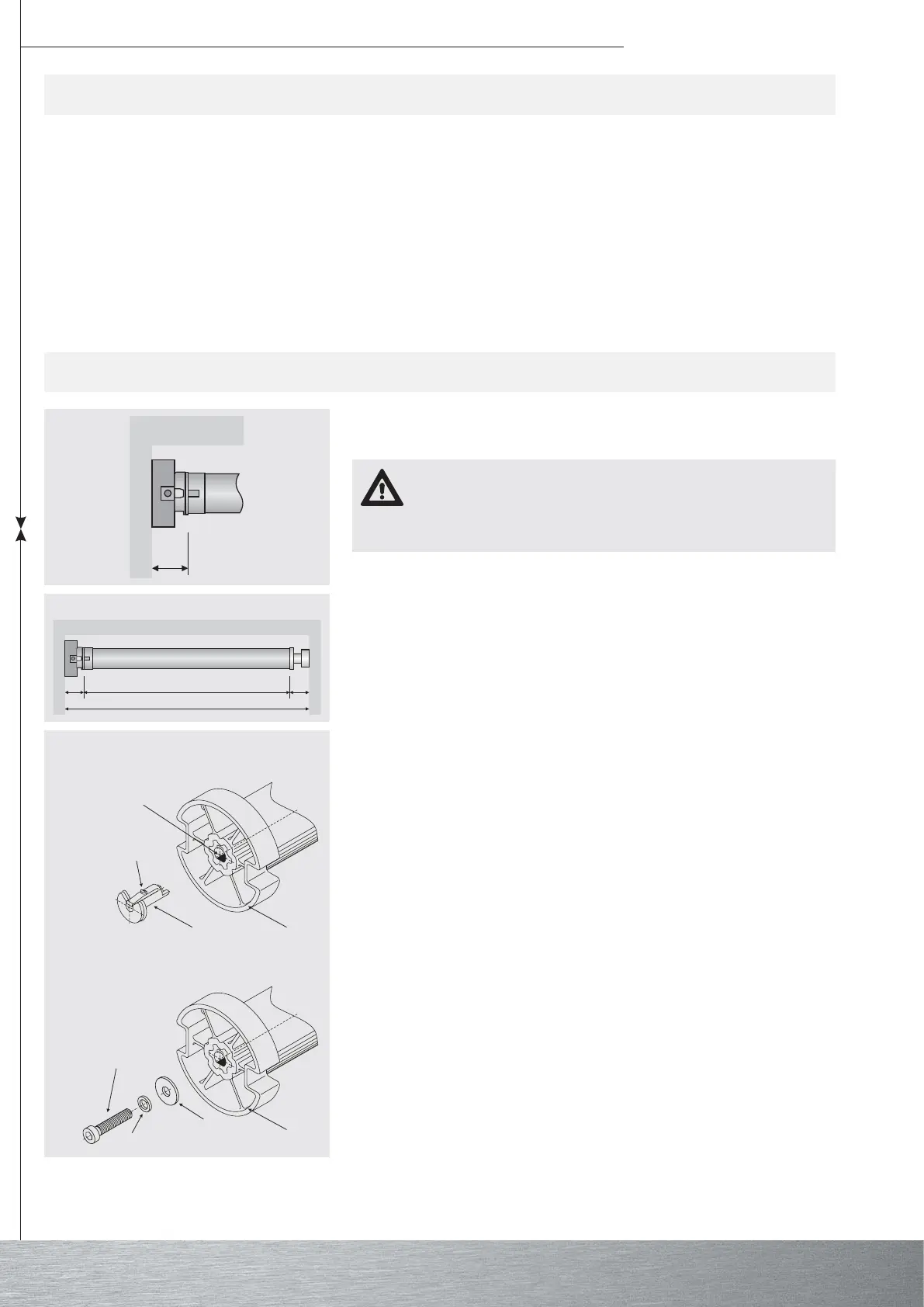

1. Establish the room required at the side for mounting (M) of the head piece, thrust
bracket and motor bracket (Fig. 1), in order to calculate the required length of roller
tube. The internal dimension of the roller shutter box or sunshade system (X) minus
the overall length of wall bracket+head piece (M) and thrust bracket (T) gives the
length (L) of the roller tube:
L=X-(T+M) (Fig. 2).
Measure the distance from the wall bracket and connecting head since this can vary
according to the combination of motor and bracket.
2. Then fix wall and thrust bracket.
Please observe the following when assembling the drive:
• Assembly of the drive adapter with locking device for the R8/17PS(+) to
R20/17PS(+) drives:
You can see how to insert the locking device from its shape. When inserting the
locking device, ensure that the catch locks into place. You will hear a click. Check
that the locking device is in position properly by pulling on the drive adapter (Fig. 3).
• Assembly of the drive adapter with screw connection for the R30/17PS(+) to
R120/11PS(+) drives:
Here the drive is fixed with an M6x12 screw. It is secured with a plain washer for M6
and a suitable toothed washer (Fig. 3).
1
M
M L
X
G
3
R8/17PS(+) to R20/17PS(+)
Self-locking hole
Location lug
Drive adapter with safety catch
M6x12 screw
Plain washer
Toothed lock washer
R30/17PS(+) to R120/11PS(+)
Drive adapter
Drive adapter
Observance of the instructions
Tubular drives of the types R8/17PS - R120/11PS are designed for operating awnings, screens and winter garden shades only.
Use in coupled systems is only possible if all subsystems are fully synchronised and reach the end limits at the same time.
Tubular drives of the types R8/17PS+ - R120/11PS+ are specially designed for operating cassette awnings with higher requirements for closing
(accurate closing of the cassette) and industrial roller shutters and roller shutter grilles.
If the controls and drives are used for other purposes than those specified above, or if modifications are made to the equipment, which affect the
safety of the system, then the manufacturer or supplier will not accept any liability for possible injuries or damages occurred to persons or to
property, nor for any consequential damages.
For operation or possible repair of the system, these operating instructions must be adhered to. In the event of improper handling, the manufac-
turer or supplier will not accept liability for possible injuries or damages occurred to persons or to property, nor for any consequential damages.
