Becker TLF 2.250 - Checking and Changing Vanes

Checking and Changing Vanes

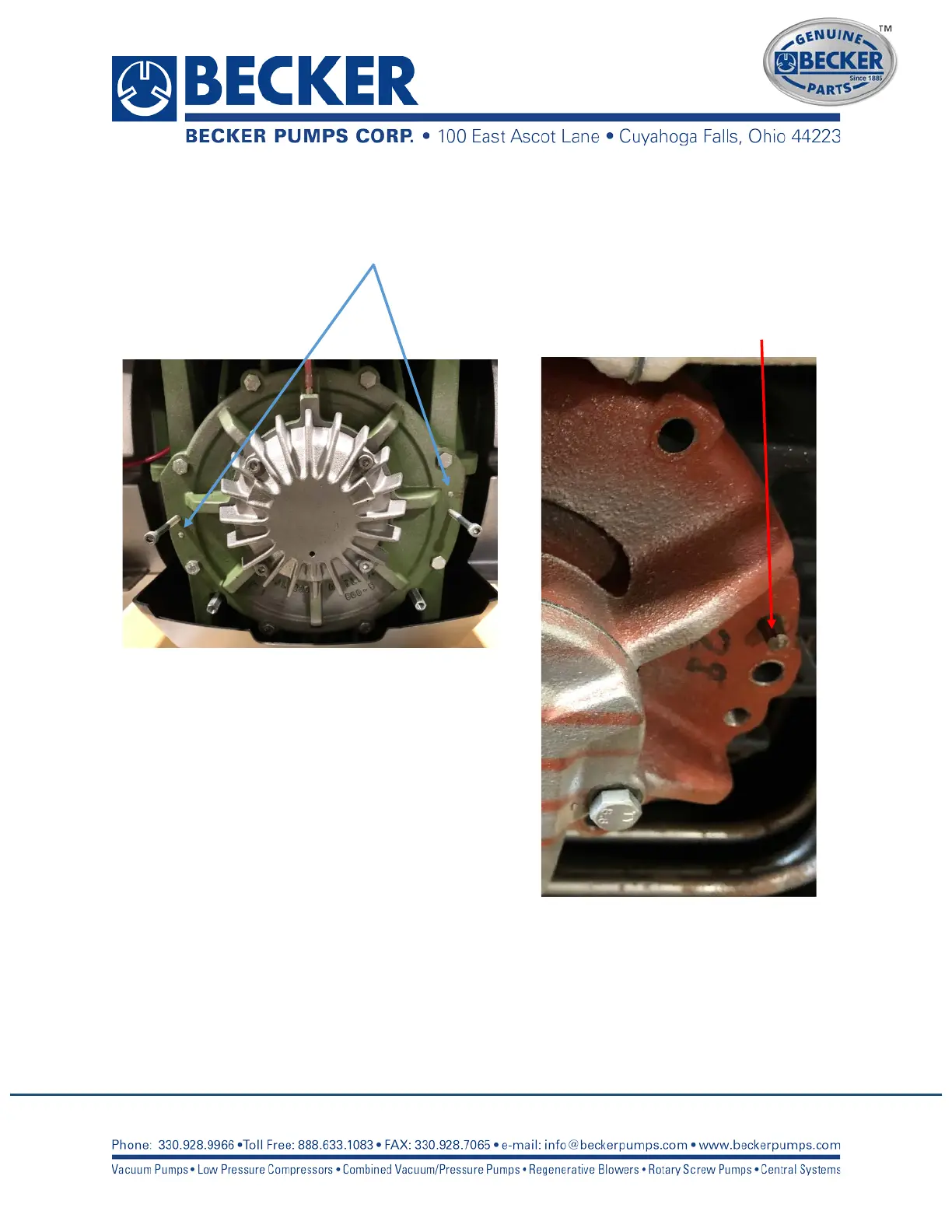

1. Align the guide pins back up and insert them into the tolerance holes.
2. Take care when installing. If the pins are not inserted correctly, the internal components may contact!
Incorrect!
3. Insert all of the End-shield bolts back and fasten the end-shield onto the housing.
4. Install the plastic air guide cover back on to the unit.
