Instruction Manual – Model AF Oil Burner
Beckett
Service & maintain burner

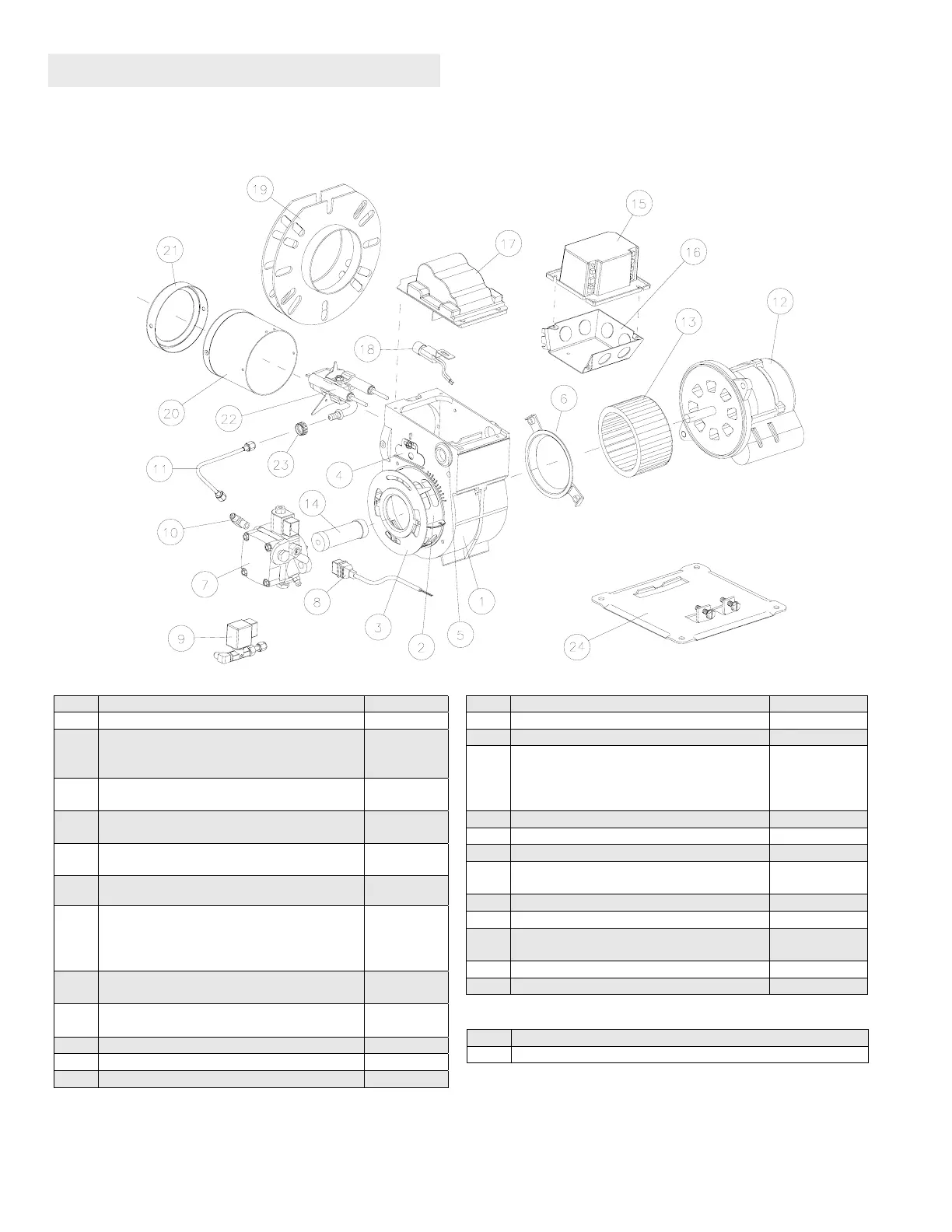

Replacement parts
SK9462D
Item Description Part Number
1 Burner housing assembly 5624B
2
(Note 1)
Air band assembly – 8 slot
Screw 10-24 x ½”
Nut 10-24 square
5151501
4198
4150
3
(Note 1)
Air shutter – 8 slot
Screws 10-24 x 5/16”
3494
4292
4
(Note 1)
Escutcheon plate
Screw 10-32 x 5/16”
3493
4292
5
(Note 1)
Hole plug 2139
6
(Note 1)
Air inlet bell (Note 2) 31841
7 Pump A2VA7116 (Suntec)
A2EA6520N621L (CleanCut)
BFPH071N1161 (Danfoss)
Mounting screws 1/4-20 x 7/8”
2460U
21844U
21391U
4189U
8 Valve cordset (for 21844 pump)
PD Timer delay cordset (for 21844 pump)
21807U
21887U
9 Solenoid valve kit (non-delay)
Solenoid valve kit (includes PD Timer cordset)
2182602U
2182604U
10 Pump elbow 2256
11 Connector tube assembly – 8” 5394
12 Motor - PSC 21805U
Item Description Part Number
13 Blower wheel (use only RWB replacement) 2459U
14 Coupling 2454
15 Primary R7184A – interrupted ignition
Control R7184B – valve-on delay
R7184P – valve-on / motor-off delay
R7184P -- with alarm contacts
7455
7456
7457
7458
16 Electrical box 5770
17 Igniter – includes gaskets 51771U
18 Cad cell detector 7006U
19 Flange – universal, adjustable, incl. gasket
Gasket only
5432
3616
20 Air tube combination – see Table 1, page 2 Specify
21 Heat shield kit – ceramic or fiber Specify
22 Electrode kit F head air tubes up to 9”
F head air tubes longer than 9”
5780
5782
23 Splined nut 3666
24 Pedestal kit 5685
Note 1 These items are included in the 5624B burner housing assembly
Note 2 Factory installed.
Please do not remove from burner!
10
