Product Description
Product Description
Appropriate Use
The CP79xx Control Panel is designed for industrial application in machine
and plant engineering. An aluminum housing contains a TFT display,
touch-screen/ pad (optional), and a PC keyboard (optional). The panel is
installed via the 4 mounting holes in the backplane or the mounting arm
system adapter (optional).
The DVI/USB extension technology integrated in the CP79xx “Economy”
DVI/USB Control Panel enables remote Panel operation at a distance of up
to 50 m from the PC via a standard cable.
Do not use the Control Panel in areas of explosive hazard!
DANGER
The Control Panel must not be used where there is a risk of explosion.

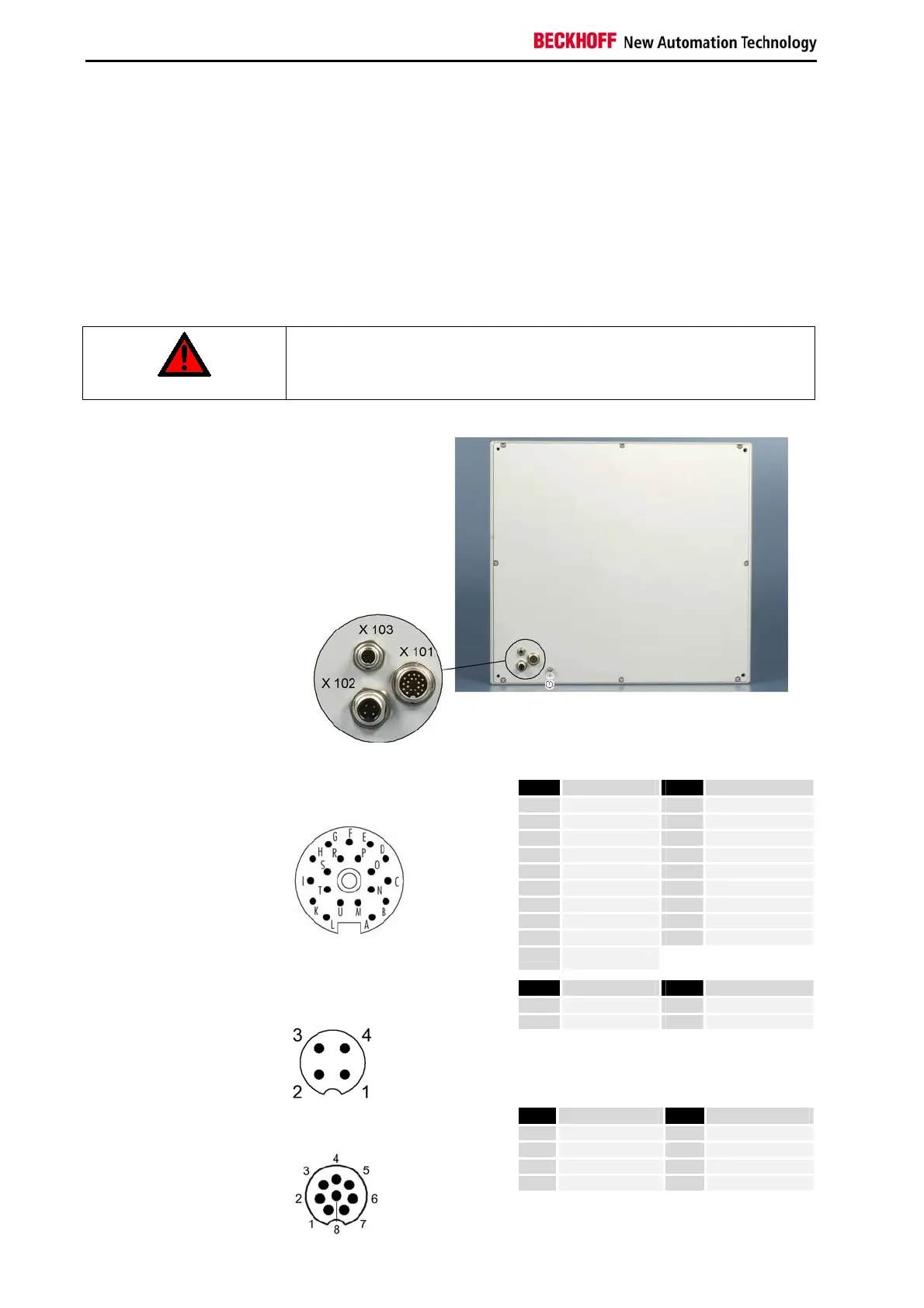

Connections
Control Panel CP79xx
connections
Pin assignment
Pin Signal Pin Signal
A Shield L IN_TMDS_C+
B IN_TMDS_2+ M GND
C GND N IN_TMDS_2-
D IN_TMDS_1- O IN_TMDS_1+
E GND P GND
F IN_TMDS_0- R IN_TMDS_0+
G GND S HPD_DVI
H + 5V_DVI T GND
I GND U IN_TMDS_C-
X 101
DVI-Extended input
SG 19-pole M16 built-in-PCB-sold. IP67
BINDER (BINDER 09-0463-90-19
prod. 723 M16X0,75)
view solder connection sided
K I2C-CLK
Pin Signal Pin Signal
1 + 24V 3 GND
2 NC 4 NC
X 102
Power supply
SG 4-pole M12 built-in-PCB-sold. IP67
BINDER (BINDER 09-3431-90-04
prod. 763 M12X1)
view solder connection sided
Pin Signal Pin Signal
1 +5V USB 5 RB TRN IN DM
2 BR RCV- N DM 6 RB TRN IN DP
3 BR RCV IN DP 7 +15V USB E
4 GND USB 8 GND USB
X 103
USB-Extended input
SG 8-pole M9 built-in-PCB-sold. IP67
BINDER (BINDER 09-0427-30-08
prod. 712 M9X0,5)
view solder connection sided
6 CP79xx
