Appendix
EL28xx-xxxx 155Version: 2.2
6.4 Firmware compatibility - passive terminals
The passive terminals [}73] ELxxxx terminal series have no firmware to update.
6.5 Restoring the delivery state
To restore the delivery state for backup objects in ELxxxx terminals, the CoE object Restore default
parameters, SubIndex 001 can be selected in the TwinCAT System Manager (Config mode) (see Fig.
Selecting the Restore default parameters PDO)

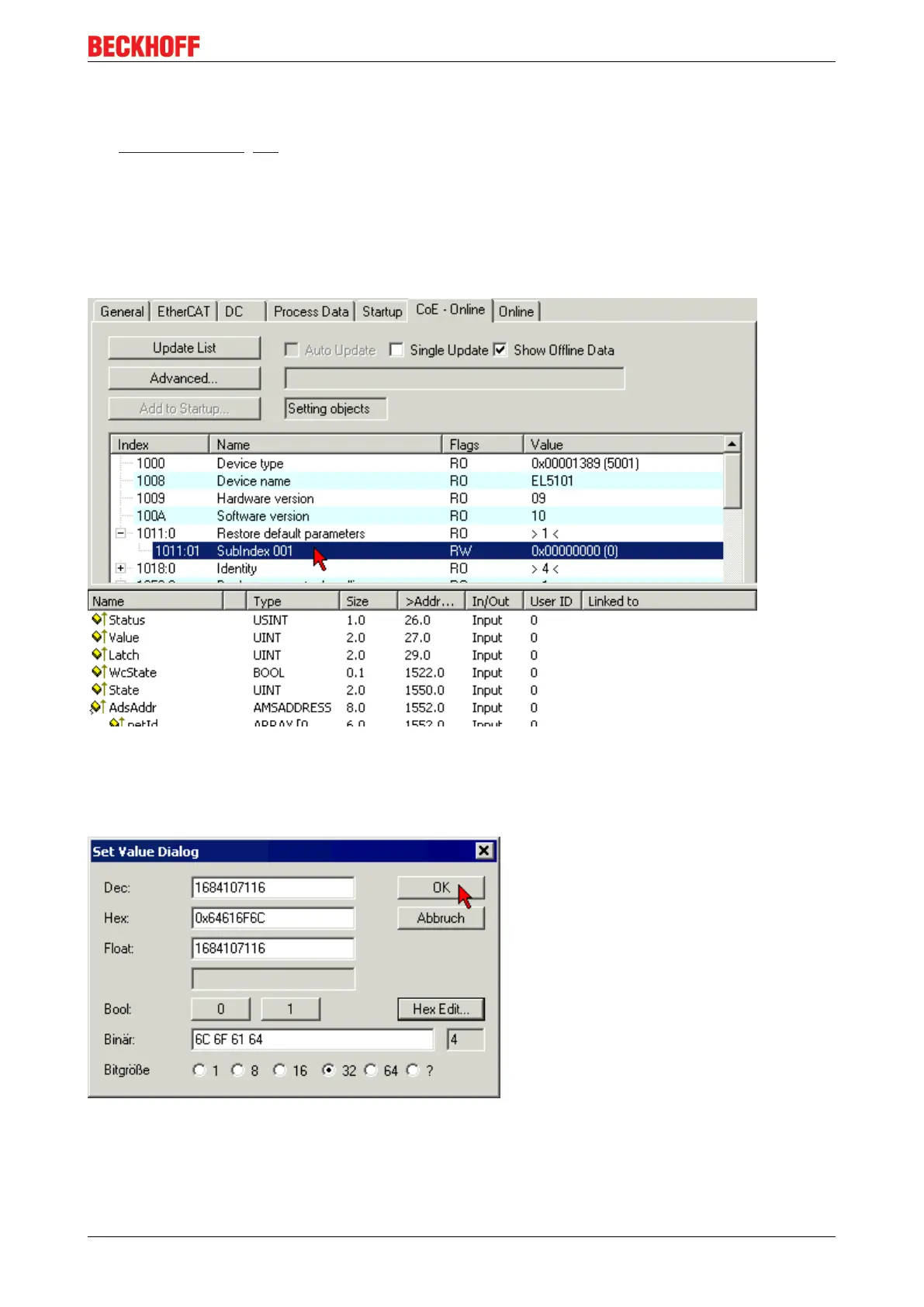

Fig.167: Selecting the "Restore default parameters" PDO
Double-click on SubIndex 001 to enter the Set Value dialog. Enter the value 1684107116 in field Dec or the
value 0x64616F6C in field Hex and confirm with OK (Fig. Entering a restore value in the Set Value dialog).
All backup objects are reset to the delivery state.
Fig.168: Entering a restore value in the Set Value dialog
