Beckhoff EL28 Series User Manual

Product overview
EL28xx-xxxx 25Version: 2.2
2.3.3 Pin assignment and LEDs

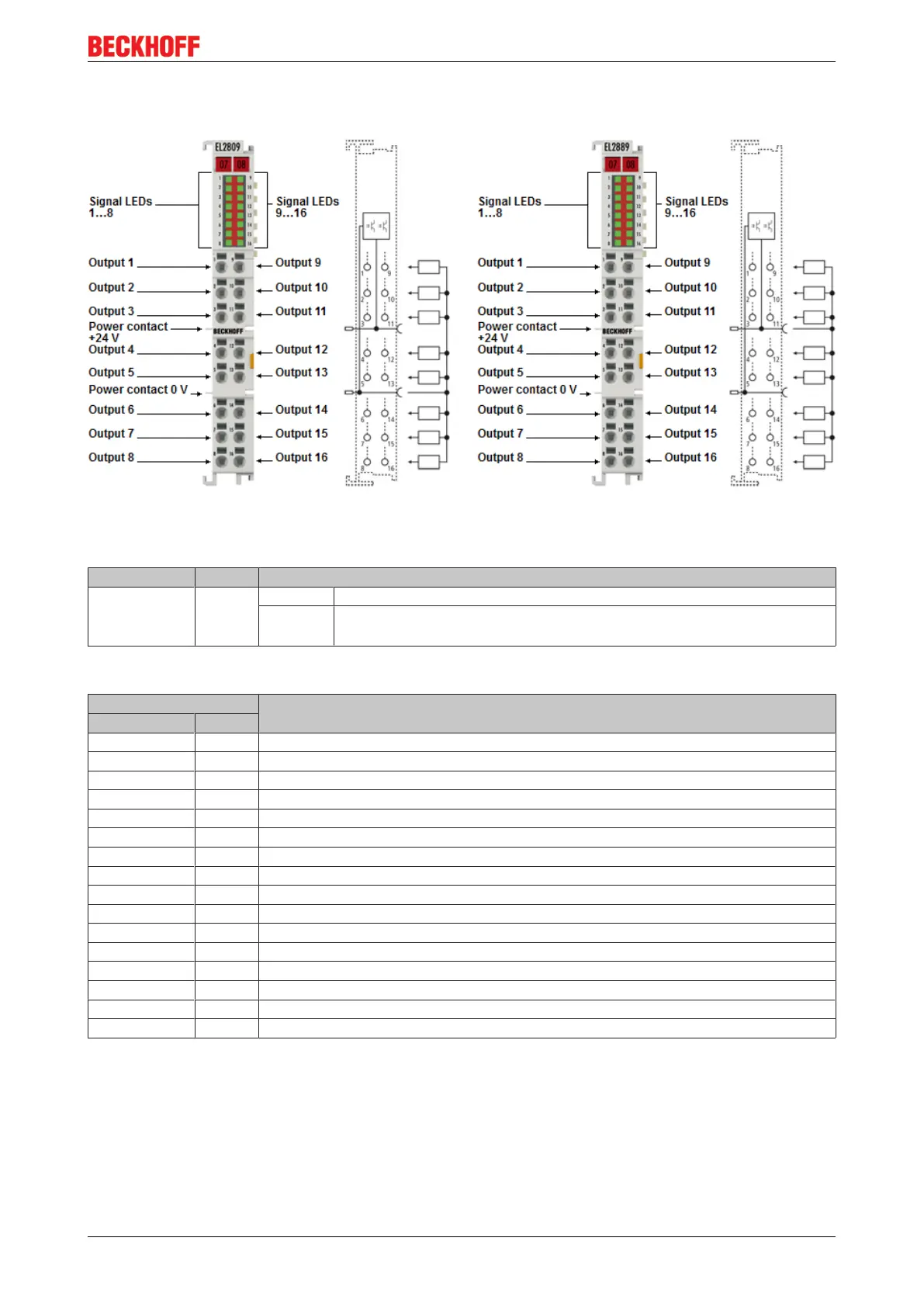

Fig.17: EL2809, EL2889
EL2809, EL2889 LEDs
LED Color Meaning
OUTPUT 1- 16 green off No output signal
on • Output signal 24V
DC
 (EL2809)
• Output signal 0 V (EL2889)
EL2809, EL2889 pin assignment
Terminal point Description
Name No.
Output 1 1 Output 1
Output 2 2 Output 2
Output 3 3 Output 3
Output 4 4 Output 4
Output 5 5 Output 5
Output 6 6 Output 6
Output 7 7 Output 7
Output 8 8 Output 8
Output 9 9 Output 9
Output 10 10 Output 10
Output 11 11 Output 11
Output 12 12 Output 12
Output 13 13 Output 13
Output 14 14 Output 14
Output 15 15 Output 15
Output 16 16 Output 16
