Product overview
EL28xx-xxxx26 Version: 2.2
2.4 EL2872, EL2872-0010
2.4.1 Introduction

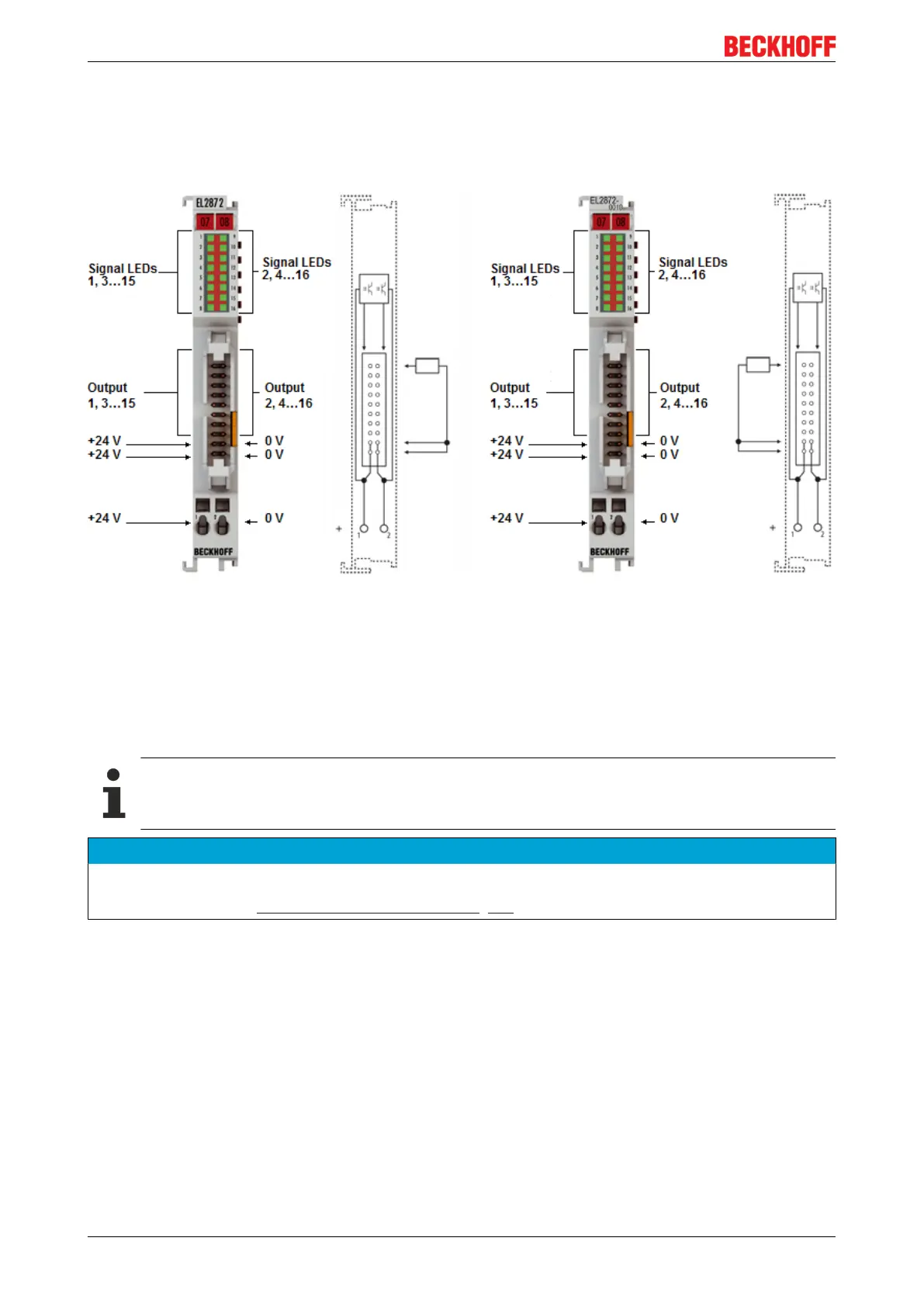

Fig.18: EL2872, EL2872-0010
HD EtherCAT Terminals, 16 digital output channels, 24V
DC
, 0.5A
The EL2872-00x0 digital output terminal offers a very compact design with its 16 channels. A 20-pin
connector enables the secure connection of plug connectors using insulation displacement contact, as is
usual for ribbon cables and special round cables. This significantly simplifies the wiring of many channels.
State-of-the-art output drivers guarantee minimum power dissipation. 16 LEDs display the logical signal
states of the outputs.
Supply voltage for the operation of the terminal
The 24V
DC
supply voltage must be connected to terminal points 1 and 2 for the operation of the ter-
minal!
NOTE
Watchdog settings
Please refer to section "Notes for setting the watchdog [}53]".
