Beckhoff EL28 Series User Manual

Product overview
EL28xx-xxxx 31Version: 2.2
2.5.3 Pin assignment and LEDs

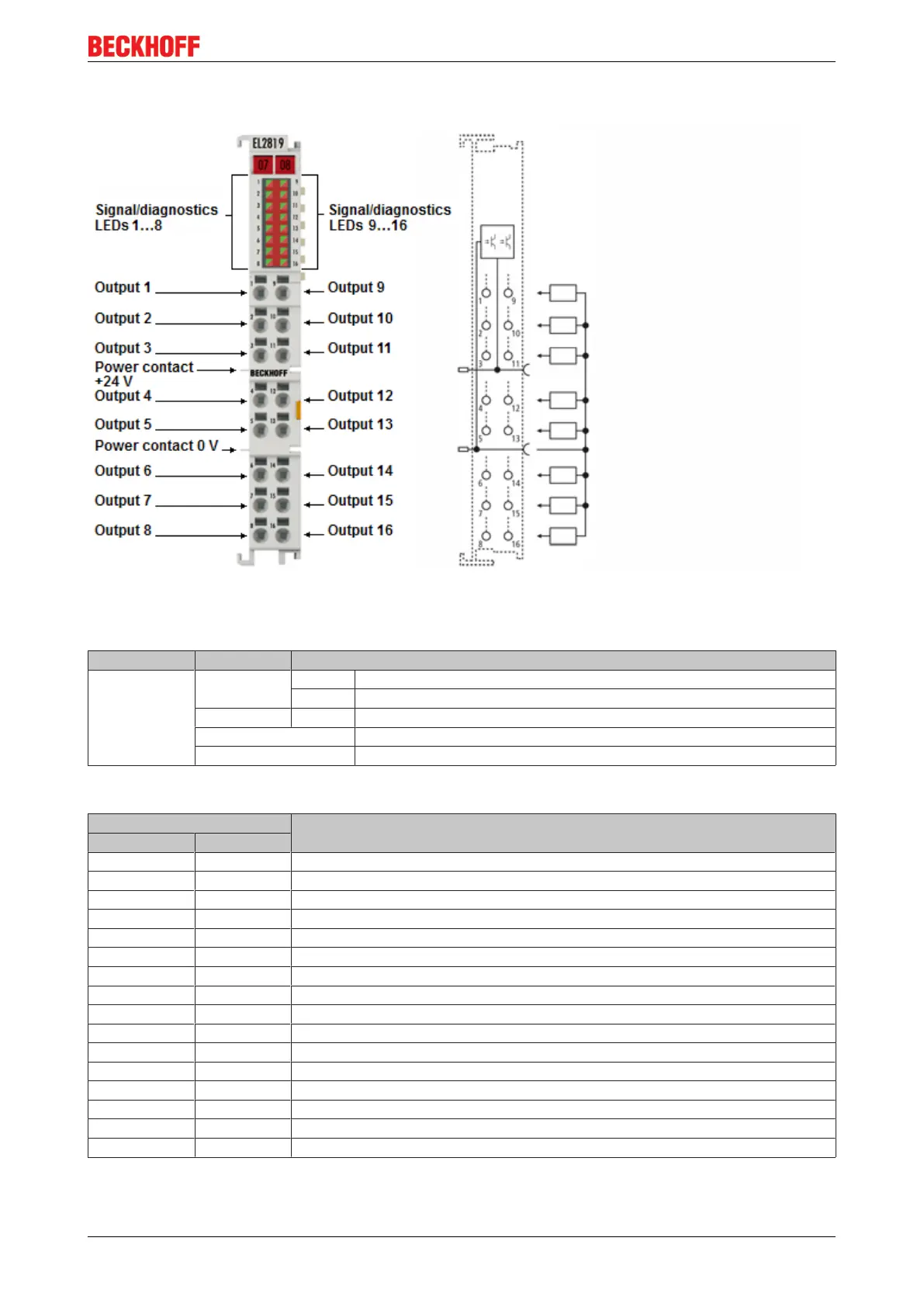

Fig.22: EL2819
EL2819 - LEDs
LED Color Meaning
OUTPUT 1- 16 green off No output signal
on Output signal 24V
red on ERROR: Overcurrent / Overtemperature
Flashing red ERROR: Short circuit to 24V
red / green alternating ERROR: Open Load
EL2819 - Pin assignment
Terminal point Description
Name No.
Output 1 1 Output 1
Output 2 2 Output 2
Output 3 3 Output 3
Output 4 4 Output 4
Output 5 5 Output 5
Output 6 6 Output 6
Output 7 7 Output 7
Output 8 8 Output 8
Output 9 9 Output 9
Output 10 10 Output 10
Output 11 11 Output 11
Output 12 12 Output 12
Output 13 13 Output 13
Output 14 14 Output 14
Output 15 15 Output 15
Output 16 16 Output 16
