Product overview
EL28xx-xxxx28 Version: 2.2
2.4.3 Pin assignment and LEDs

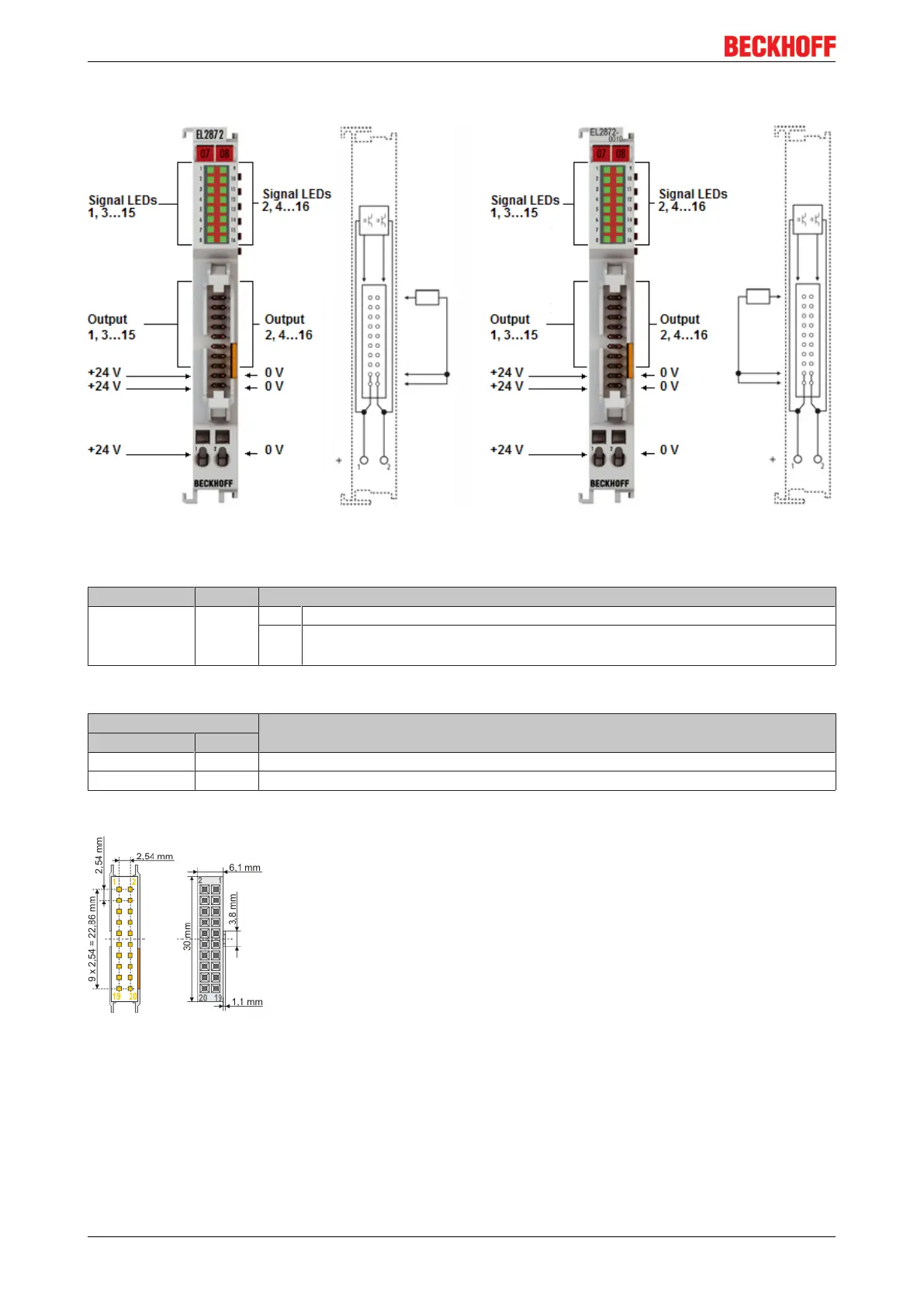

Fig.19: EL2872, EL2872-0010
EL2872, EL2872-0010 - LEDs
LED Color Meaning
OUTPUT 1- 16 green off No output signal
on • 24V
DC
output signal at the respective output (EL2872-0000)
• 0V output signal at the respective output (EL2872-0010)
EL2872, EL2872-0010 - Pin assignment
Terminal point Description
Name No.
+24V 1 + 24V
DC
0V 2 0V
Contact pin strip
Fig.20: Dimensions of the 20-pin contact strip of the terminal and the matching spring contact strip; for
connections see Contact assignment
