Beckhoff KL2 Series User Manual

Product overview
KL2xxx and KS2xxx20 Version: 3.0.0
2.4.2 KL2404 - LEDs and connection

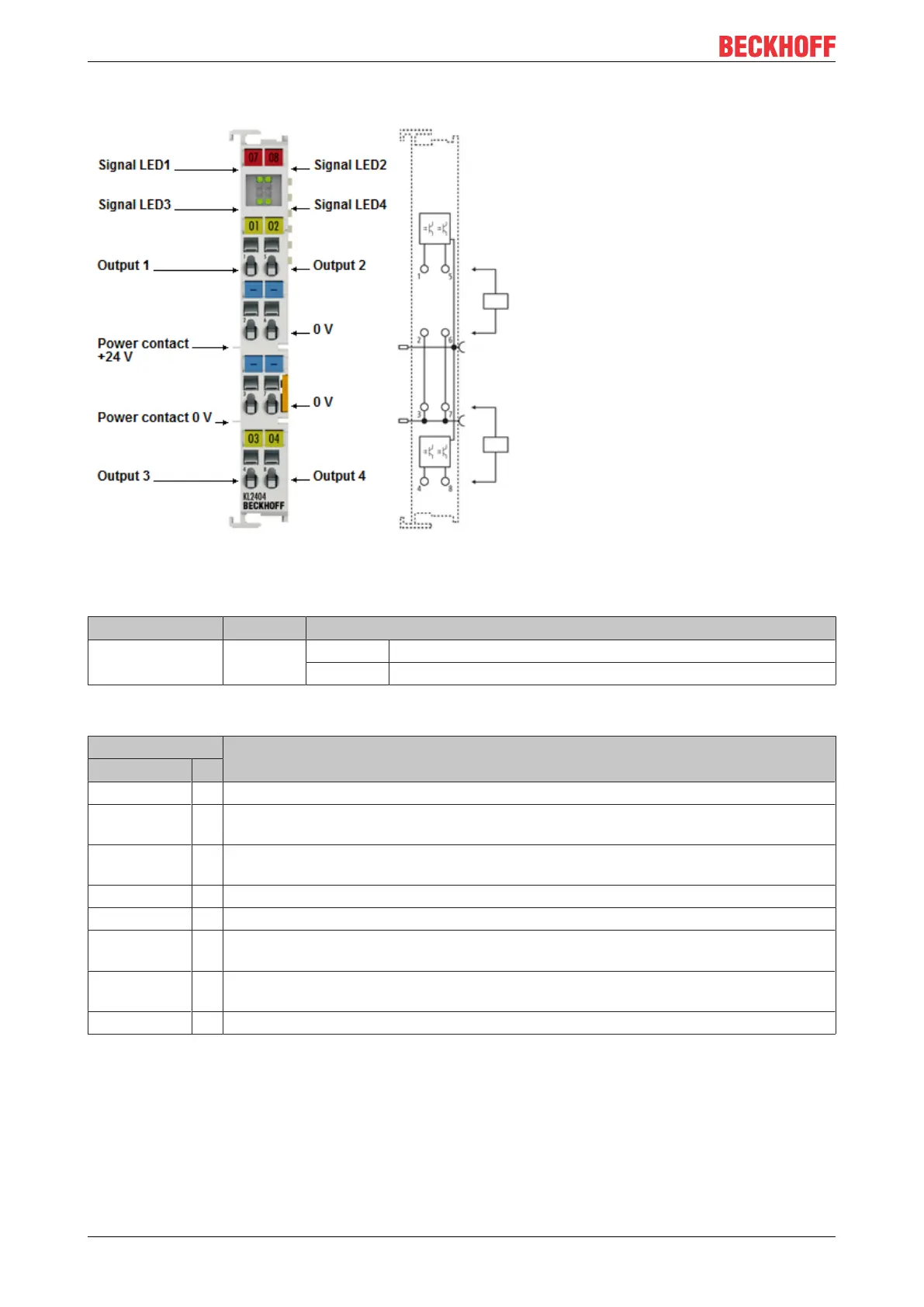

Fig.13: KL2404 - LEDs and connection
KL2404 - LEDs
LED Color Meaning
Signal LEDs 1 - 4 green off Signal voltage "0"
on Signal voltage "1"
KL2404 - Connection
Terminal point Description
Name No.
Output1 1 Output 1
0V 2 Ground for output1 (internally connected to terminal point3, 6, 7 and negative power
contact)
0V 3 Ground for output3 (internally connected to terminal point2, 6, 7 and negative power
contact)
Output3 4 Output 3
Output2 5 Output 2
0V 6 Ground for output2 (internally connected to terminal point2, 3, 7 and negative power
contact)
0V 7 Ground for output4 (internally connected to terminal point2, 3, 6 and negative power
contact)
Output4 8 Output 4
