Product overview
KL2xxx and KS2xxx24 Version: 3.0.0
2.5.2 KL2408 - LEDs and connection

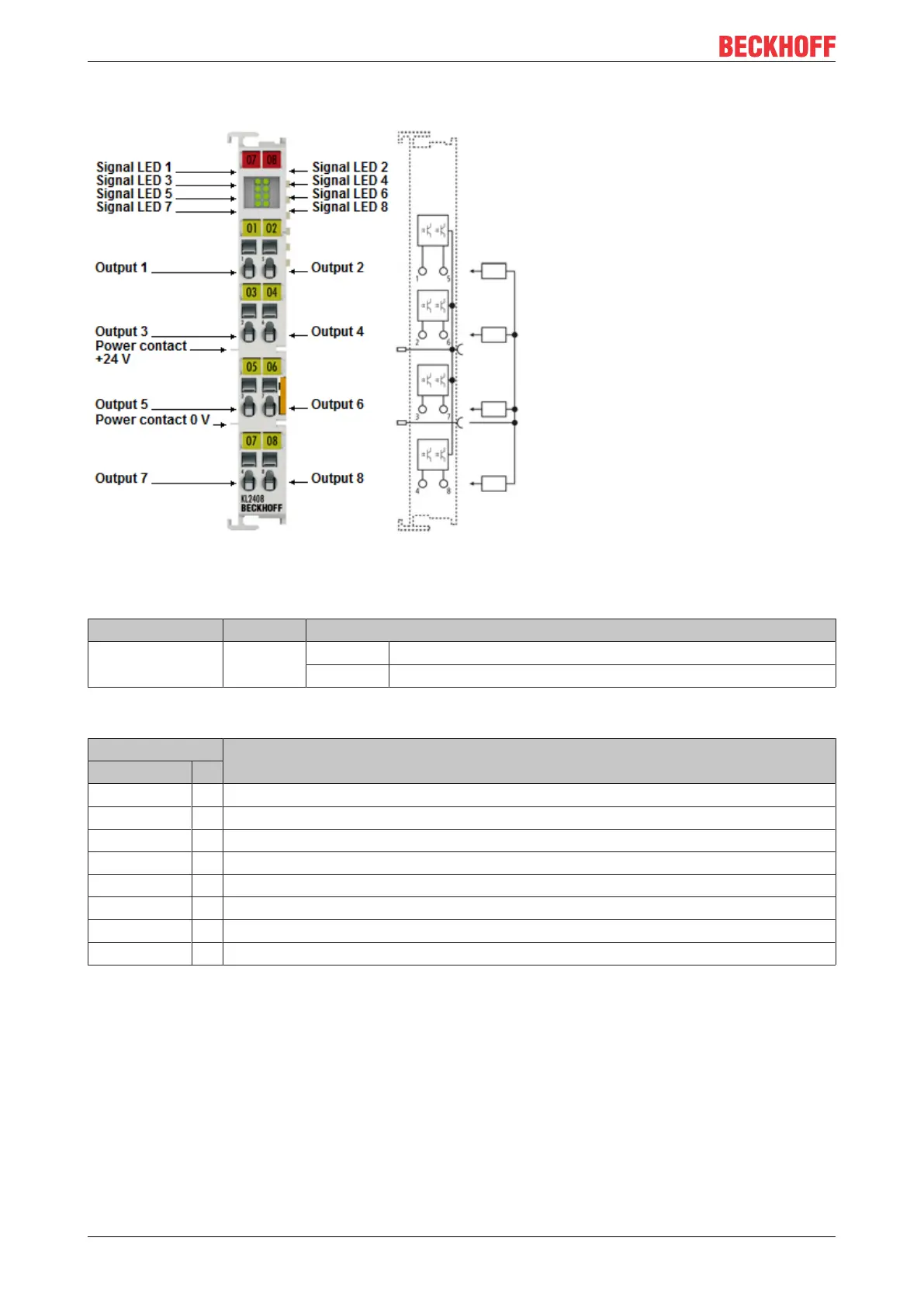

Fig.17: KL2408 – 8-channel digital output terminal, 24 V
DC
, 0.5 A
KL2408 - LEDs
LED Color Meaning
Signal LED 1 - 8 green off Signal voltage "0"
on Signal voltage "1"
KL2408 - Connection
Terminal point Description
Name No.
Output1 1 Output 1
Output3 2 Output3
Output5 3 Output5
Output7 4 Output7
Output2 5 Output2
Output4 6 Output4
Output6 7 Output6
Output8 8 Output8
