Product overview
KL2xxx and KS2xxx 25Version: 3.0.0
2.5.3 KL2488 - LEDs and connection

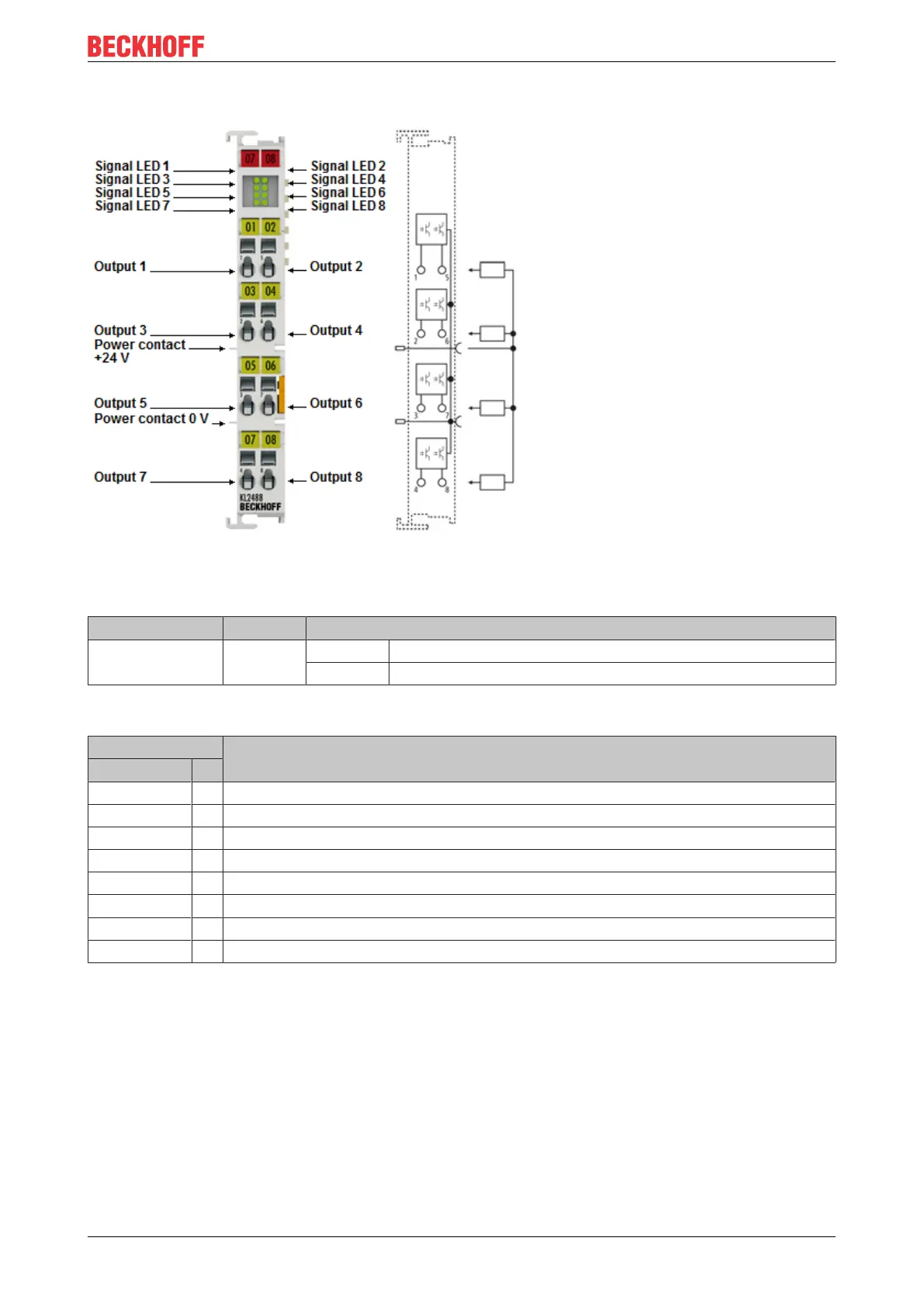

Fig.18: KL2488 – 8-channel digital output terminal, 24 VDC, 0.5A, ground switching
KL2488 - LEDs
LED Color Meaning
Signal LED 1 - 8 green off Signal voltage "0"
on Signal voltage "1"
KL2488 - Connection
Terminal point Description
Name No.
Output1 1 Output 1
Output3 2 Output3
Output5 3 Output5
Output7 4 Output7
Output2 5 Output2
Output4 6 Output4
Output6 7 Output6
Output8 8 Output8
