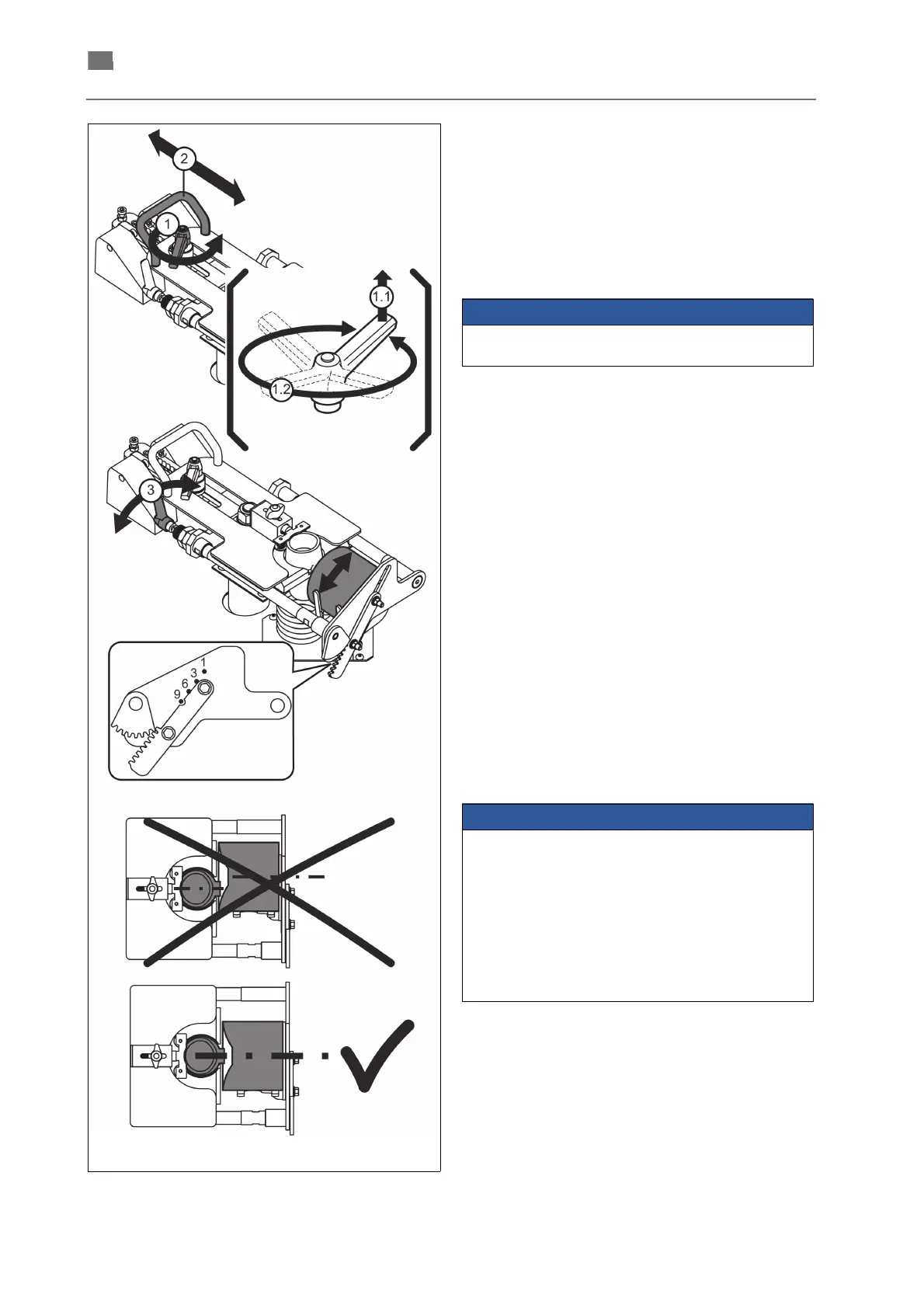

4. Unlock the slider. Turn the clamping lever (1)
counterclockwise for this purpose. The lever
position can be changed individually, see note.
5. The slider can only be moved with the handle
(2).
6. Use the adjustment lever (3) to properly align
the mould; the mouth of the ingot mould must
be aligned with the center of the crucible outlet.
The specified mould size can be seen on the
toothed bar.
If necessary, raise the clamping lever first (1.1)
and then rotate it (1.2).
Caution!
If the mould is not properly installed, the alloy
may splash into the unit instead of flowing into the
mould after melting and releasing the cast!
Note: The rotation direction is counterclockwise
Center align the pouring spout of the crucible
inside the casting funnel!
