5
FOOT CONTROLLER FCV100
The FCV100 can be operated via an 12 V DC power adapter
or with a 9 V battery (Type 6LR91). If you use a battery and
the power adapter at the same time, the FCV100 draws no
power from the battery.
3. BATTERY INSTALLATION & REPLACEMENT
To access the battery compartment, please follow the instructions:
1. Loosen the latch screw on the underside of the FCV100 and
remove the base.
2. Remove the old battery and replace it with a new one.
3. Reattach the base.
+ Remember to unplug the jacks when the unit is not
being used so as to conserve battery life.
4. CONNECTIONS

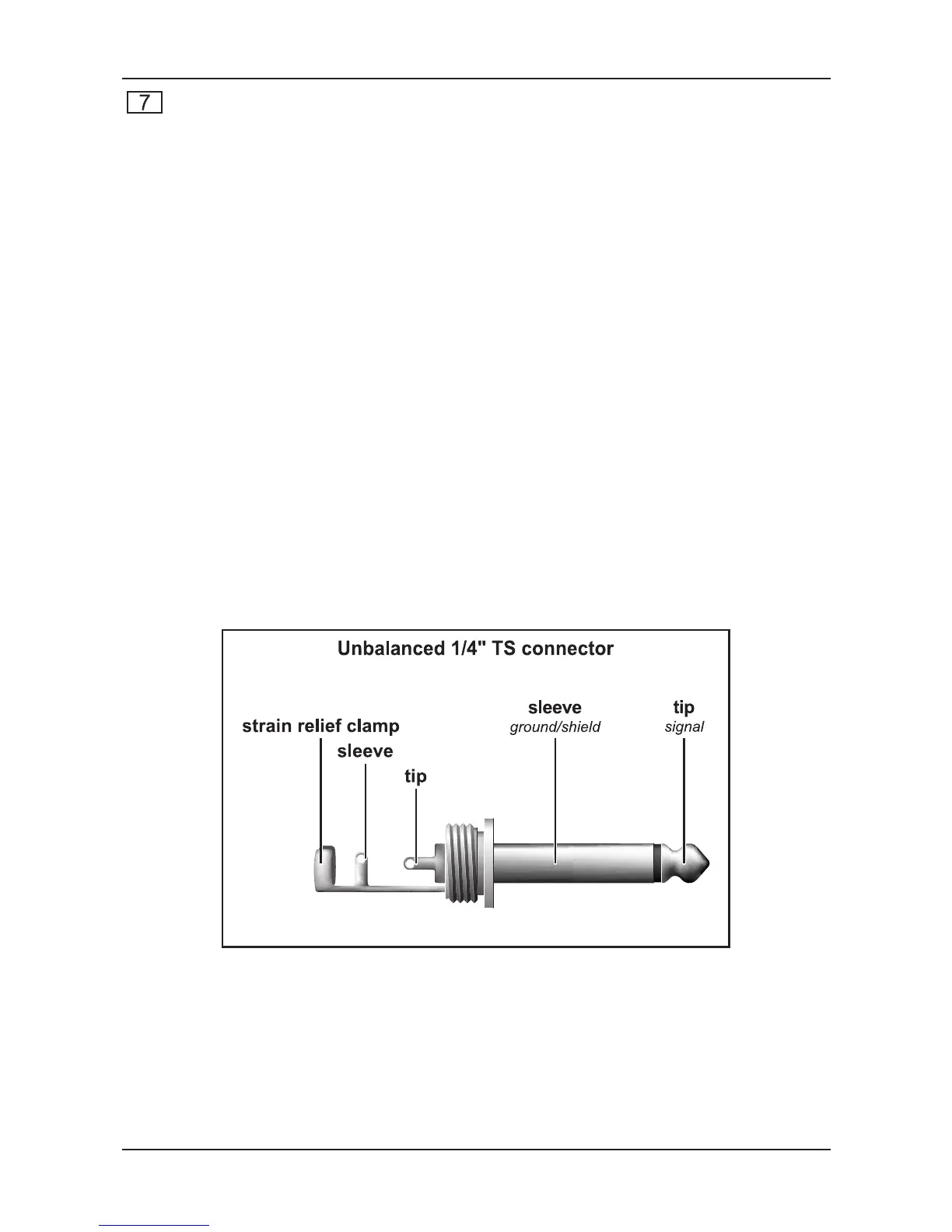

Fig. 4.1: 1/4" TS connector
4. CONNECTIONS
