20 VIRTUALIZER 3D FX2000 User Manual
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3

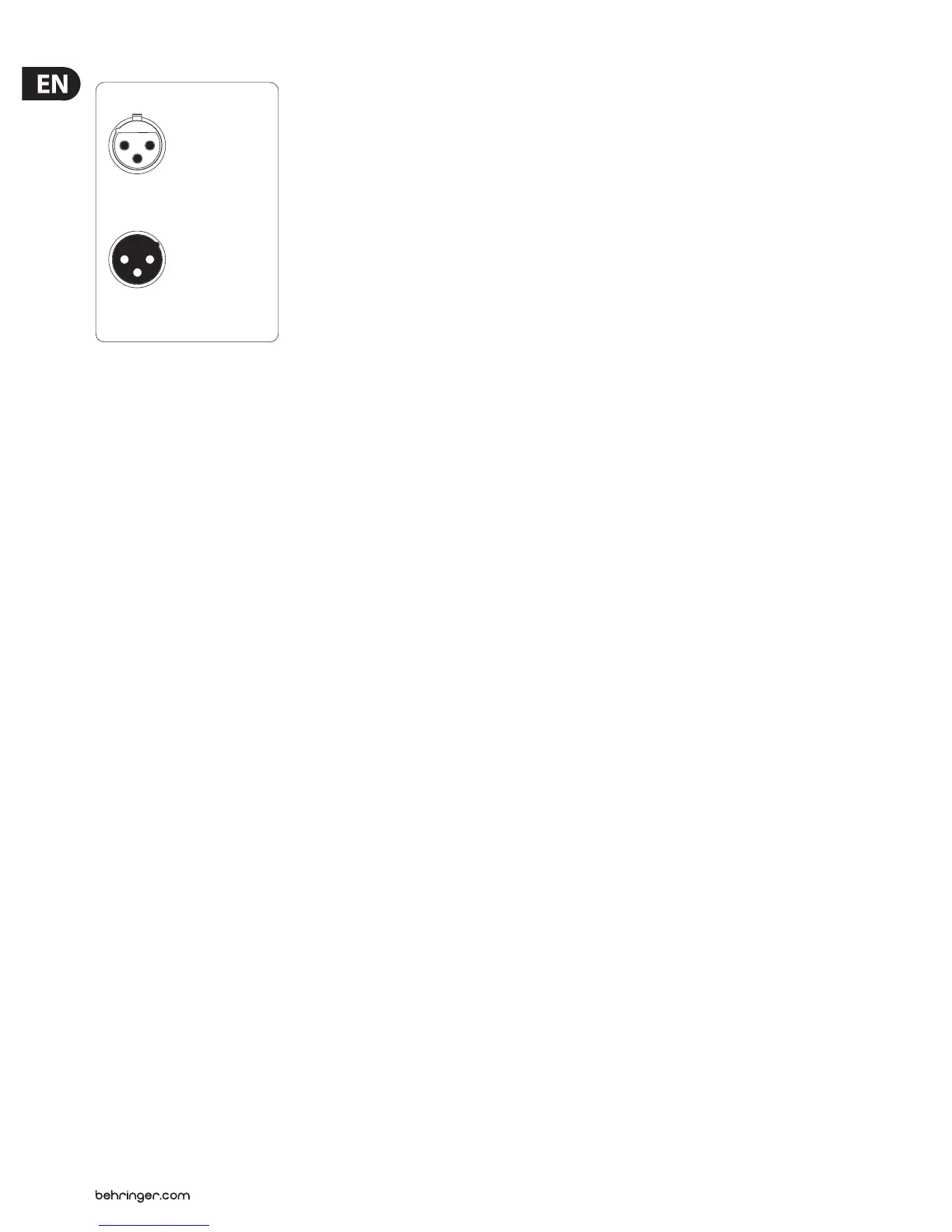

Balanced use with XLR connectors
Fig. 6.1: Dierent plug types
6.3 MIDI connections
The MIDI connectors at the rear panel of the unit are equipped with
internationally standardized 5 pin DIN sockets. You’ll need a MIDI cable to
connect the VIRTUALIZER 3D with other MIDI devices. As a rule, standardready-
to-use cables can be used. With a two core shielded cable (e.g. microphone
cable) and two possible stable 180 deg. DIN plugs, you can also solder a MIDI
cable yourself: Pin 2 (middle) = shield, pin 4 and 5 (right and left of pin 2) =
Innerconductor, Pin 1 and 3 (both lying outside) remain free. MIDI cables should
not be longer than 15 meters.
MIDI IN: is used for receiving MIDI data. The receiving channel is selected in the
SETUP menu.
MIDI THRU: At the MIDI THRU socket, the MIDI data that arrive at the MIDI IN
socket can be looped through. Several VIRTUALIZER 3Ds can be linked using MIDI
THRU sockets.
MIDI OUT: Via MIDI OUT, you can send data to a connected computer or to other
VIRTUALIZER 3Ds. Program data and status information are transmitted for
signalprocessing.
6.4 Selecting the operating level
The BEHRINGER VIRTUALIZER 3D allows you to switch the internal operating level
with the Operating Level switches on the rear panel of the unit. Thus,youcan
choose between the homerecording level (-10 dBV) and the professional studio
level (+4 dBu). With this adjustment, the VIRTUALIZER 3D is adapted to the
optimal operating level. Use the input level meter on the front panel to nd the
appropriate operating level.

Behringer VIRTUALIZER 3D FX2000 Specifications

Analog Inputs and Outputs

input connectors	XLR and ¼" TRS
input impedance	80 kΩ balanced
output connectors	XLR and ¼" TRS

Power

voltage USA/Canada	120 V~, 60 Hz
voltage Europe/U.K./Australia	230 V~, 50 Hz
power consumption	15 Watts max.

System Specifications

bandwidth	20 Hz to 20 kHz, +/- 3 dB
SNR	91 dB, unweighted, 20 Hz to 20 kHz
THD	0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Weight and Dimensions

dimensions	8.54 x 1.75 x 19.01" (217 x 44.5 x 483 mm)
net weight	4.18 lbs / 1.9 kg
