3. Operation
3.1 Eects structure
1-6, 8, 9
Algorithm No.
Eects structure
7
10
11, 12
13
14
17-19, 21, 24, 26
15
IN
L
R
OUT
L
R
+
PREDELAY FILTER REVERB
IN
L
R
OUT
L
R
+
PREDELAY FILTER ER REVERB
M
I
X
E
R
IN
L
R
OUT
L
R
+
PREDELAY REVERB
IN
L
R
+
PREDELAY FILTER REVERB
GATE/
RVS
OUT
L
R
IN
L
R
OUT
L
R
+
DELAY_L
+
DELAY_R
IN
L
R
OUT
L
R
+
DELAY_L
+
DELAY_R
LP/HP
LP/HP
IN
L
R
OUT
L
R
+
EFFECT
+
DELAY_L
+
DELAY_R
FEEDBACK_DEL_L
FEEDBACK_DEL_R
IN
L
R
OUT
L
R

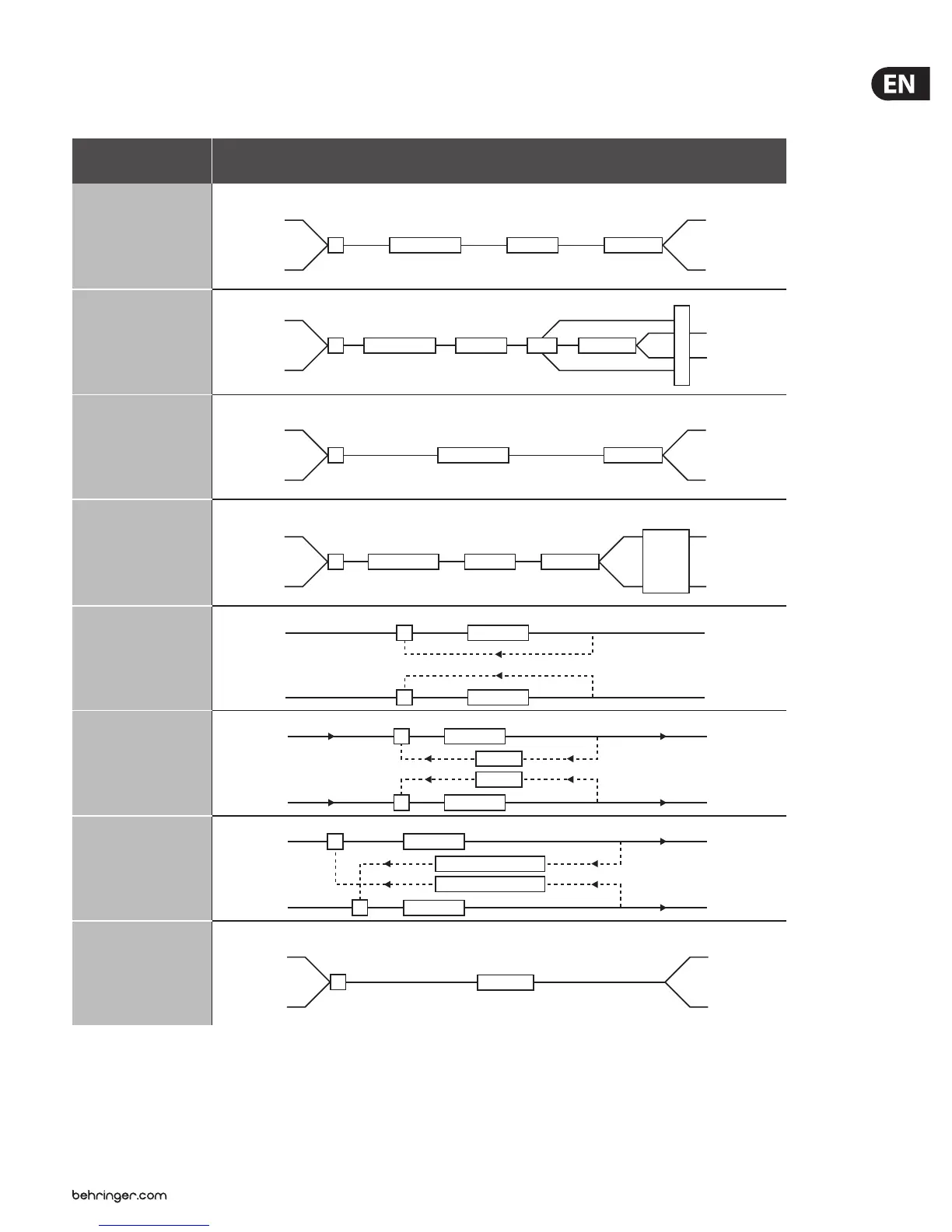

Fig. 3.1: Eects structure, part 1

Behringer VIRTUALIZER 3D FX2000 Specifications

Analog Inputs and Outputs

input connectors	XLR and ¼" TRS
input impedance	80 kΩ balanced
output connectors	XLR and ¼" TRS

Power

voltage USA/Canada	120 V~, 60 Hz
voltage Europe/U.K./Australia	230 V~, 50 Hz
power consumption	15 Watts max.

System Specifications

bandwidth	20 Hz to 20 kHz, +/- 3 dB
SNR	91 dB, unweighted, 20 Hz to 20 kHz
THD	0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Weight and Dimensions

dimensions	8.54 x 1.75 x 19.01" (217 x 44.5 x 483 mm)
net weight	4.18 lbs / 1.9 kg
