14 VIRTUALIZER 3D FX2000 User Manual
IN
L
R
OUT
L
R
+
PITCH_1
PITCH_2
PITCH_3
M
I
X
E
R
IN
L
R
OUT
L
R
+
DYNAMICS
IN
L
R
OUT
L
R
+
DYNAMICS
+
DYNAMICS
LP
HP
HP
LP
E
N
H
A
N
C
E
R
L
I
M
I
T
E
R
IN
L
R
OUT
L
R
+
DYNAMICS
FILTER
FILTER
G
A
T
E
IN
L
R
OUT
L
R
+
DYNAMICS
FILTER
FILTER
IN
L
R
OUT
L
R
+
SUBBASS
BASS ENHANCER
BASS ENHANCER
+
+
IN
L
R
OUT
L
R
EFFECT
EFFECT_L
+
IN
L
R
OUT
L
R
+
EFFECT_R
16, 20, 22, 23, 25,
28-30, 38-40,
45-48, 50, 53,
54, 57, 60
Algorithm No.
Eects structure
27
31-34
35
36
37
42-44, 59
41

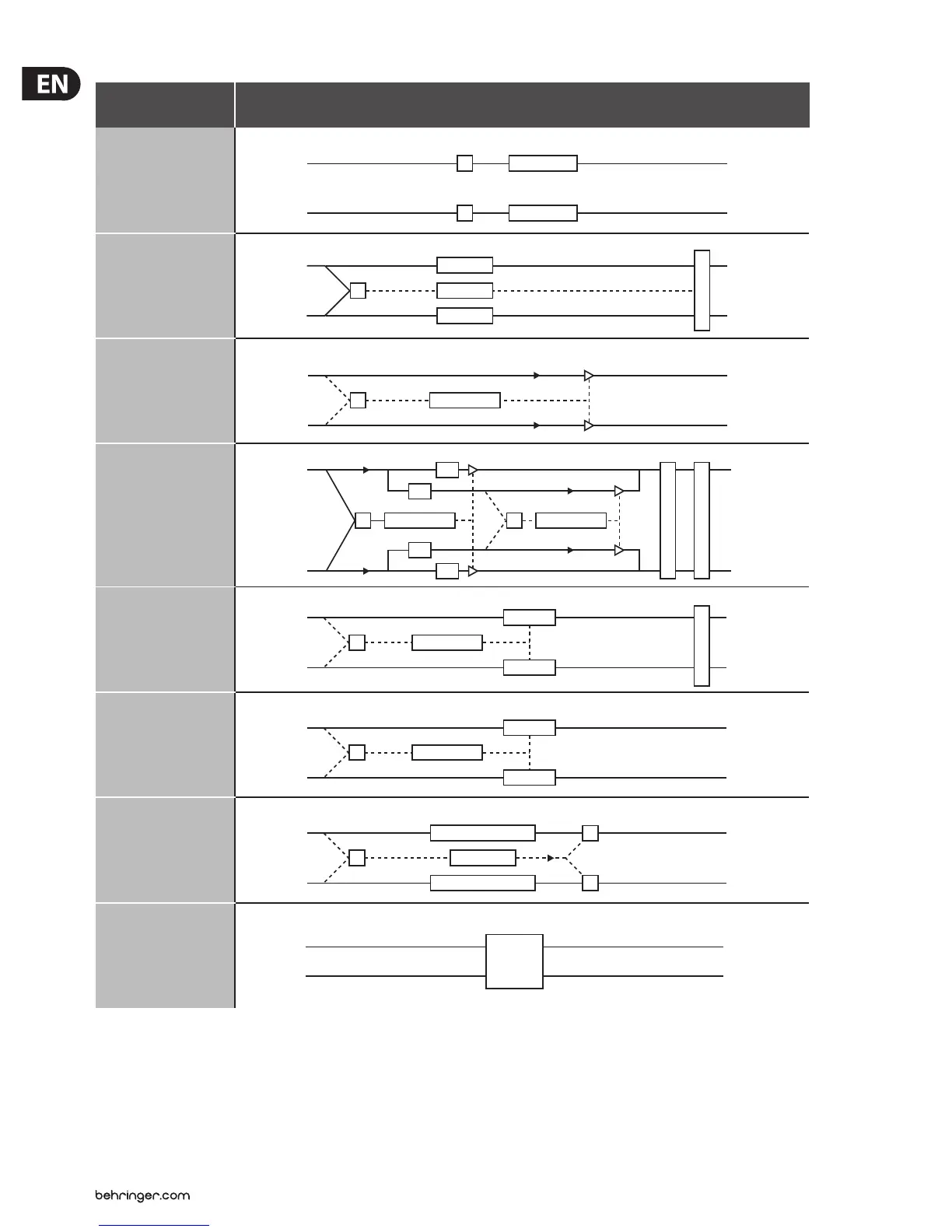

Fig. 3.2: Eects structure, part 2

Behringer VIRTUALIZER 3D FX2000 Specifications

Analog Inputs and Outputs

input connectors	XLR and ¼" TRS
input impedance	80 kΩ balanced
output connectors	XLR and ¼" TRS

Power

voltage USA/Canada	120 V~, 60 Hz
voltage Europe/U.K./Australia	230 V~, 50 Hz
power consumption	15 Watts max.

System Specifications

bandwidth	20 Hz to 20 kHz, +/- 3 dB
SNR	91 dB, unweighted, 20 Hz to 20 kHz
THD	0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Weight and Dimensions

dimensions	8.54 x 1.75 x 19.01" (217 x 44.5 x 483 mm)
net weight	4.18 lbs / 1.9 kg
