Algorithm No.

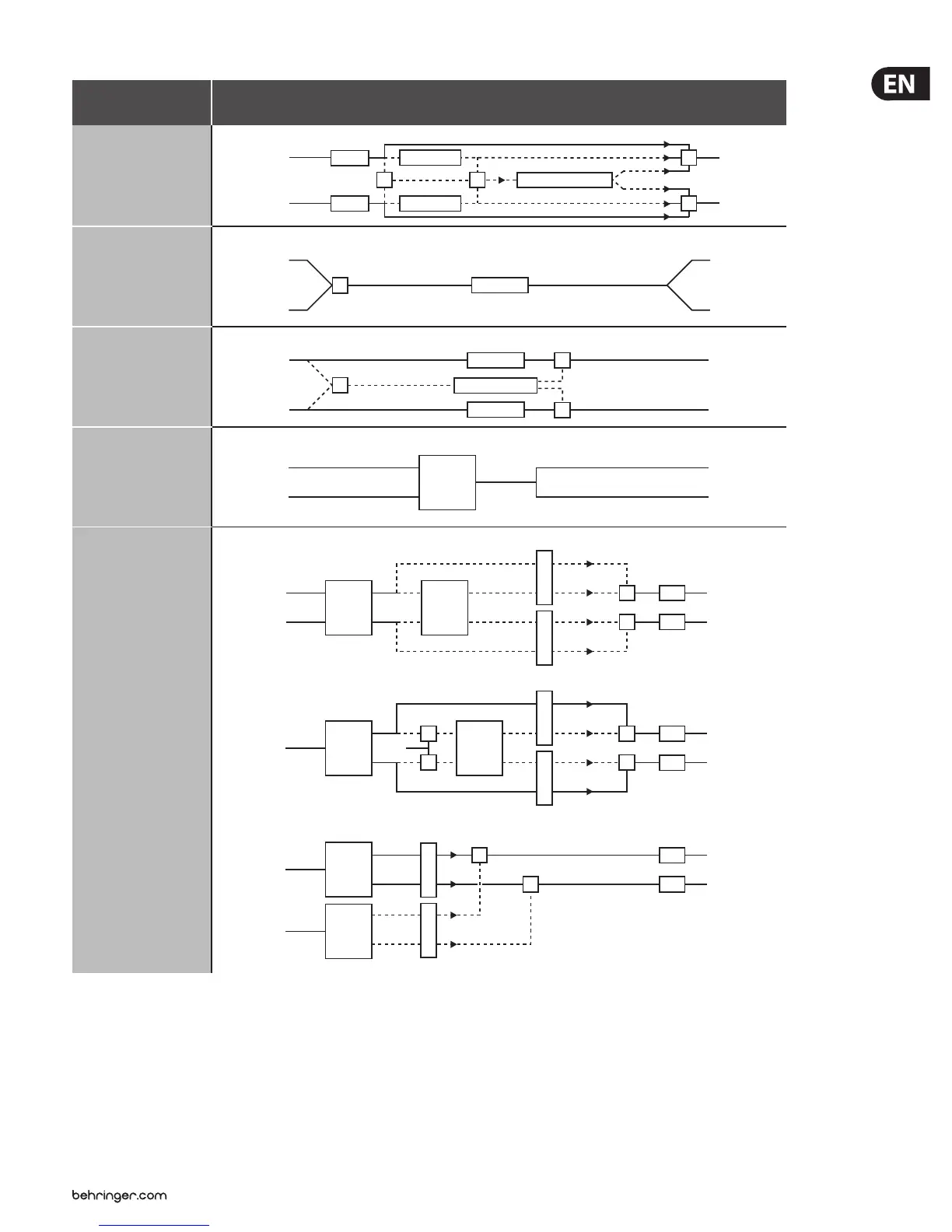

Eects structure
51, 52
55, 56
58
61-71
IN
L
R
OUT
L
R
DIST
DIST
FLANGER
FLANGER
+ +
CROSS DELAY
+
+
IN
L
R
OUT
L
R
EFFECT
+
IN
L
R
OUT
L
R
+
EFFECT
EFFECT
NOISE/CLICKS
+
+
IN
L
R
OUT
L
R
EFFECT
A) Serial 1
IN
L
R
OUT
L
R
MOD/
DELAY
REV/
DELAY
M
I
X
M
I
X
+
+
EQ
EQ
B) Serial 2
OUT
L
R
IN
L
MOD/
DELAY
REV/
DELAY
+
+
M
I
X
M
I
X
+
+
EQ
EQ
C) Parallel
IN
L
R
OUT
L
R
MOD/
DELAY
REV/
DELAY
M
I
X
M
I
X
+
+
EQ
EQ
R
Fig. 3.3: Eects structure, part 3

Behringer VIRTUALIZER 3D FX2000 Specifications

Analog Inputs and Outputs

input connectors	XLR and ¼" TRS
input impedance	80 kΩ balanced
output connectors	XLR and ¼" TRS

Power

voltage USA/Canada	120 V~, 60 Hz
voltage Europe/U.K./Australia	230 V~, 50 Hz
power consumption	15 Watts max.

System Specifications

bandwidth	20 Hz to 20 kHz, +/- 3 dB
SNR	91 dB, unweighted, 20 Hz to 20 kHz
THD	0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Weight and Dimensions

dimensions	8.54 x 1.75 x 19.01" (217 x 44.5 x 483 mm)
net weight	4.18 lbs / 1.9 kg
