Behringer XENYX 1202 User Manual

9
XENYX 502/802/1002/1202
3. INSTALLATION
3.1 Mains connection
AC POWER IN
Connect the power supply to the 3-pin mains connector on the
rear of the console. Use the AC adapter supplied to connect the
console to the mains. The adapter complies with all applicable
safety standards.
+ Please use only the power supply unit provided
with the console.
+ Never connect the XENYX to the power supply unit
while the latter is connected to the mains! First
connect the console to the power supply unit, then
connect the power supply unit to the mains.
+ Please note that both the power supply unit and
the mixing console heat up considerably during
operation. This is completely normal.

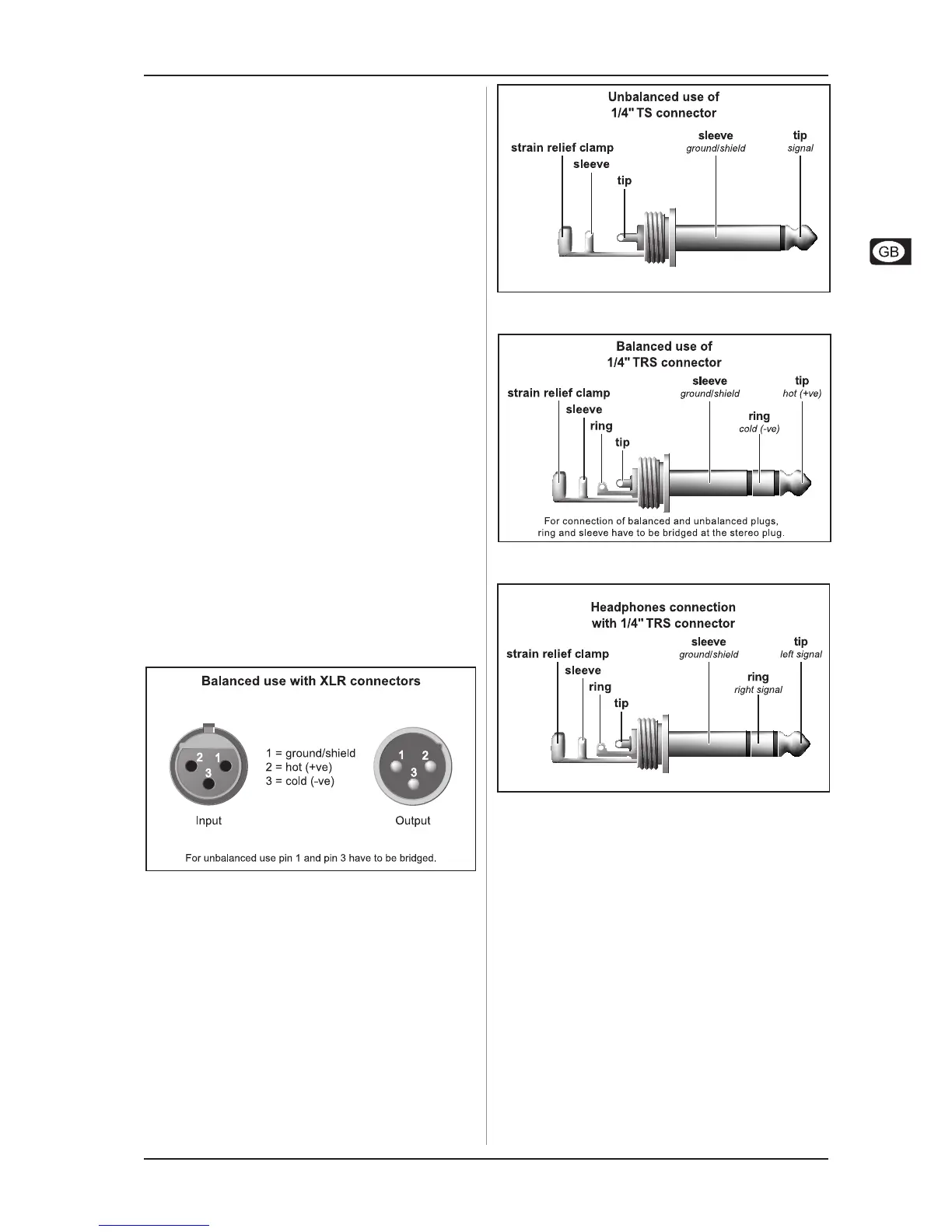

3.2 Audio connections
You will need a large number of cables for different
applications. The illustrations below show how the connectors
should be wired. Be sure to use only high-grade cables.
Please use commercial RCA cables to connect the 2-track
inputs and outputs.
You can, of course, also connect unbalanced devices to the
balanced inputs/outputs. To do this, use either mono plugs or
stereo plugs with the ring and sleeve bridged (pins 1 and 3 in the
case of XLR connectors).
+ Caution! Never use unbalanced XLR connectors
(PIN 1 and 3 connected) on the MIC input connectors
when using the phantom power supply.
Fig. 3.1: XLR connections
3. INSTALLATION
Fig. 3.2: 1/4" mono plug
Fig. 3.3: 1/4" stereo plug
Fig. 3.4: Stereo plug for headphones connection

Behringer XENYX 1202 Specifications

General

Frequency range	10 - 200000 Hz
Channels quantity	12 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	110 dB
XLR out	1
DJ mixer	-
Headphone out	Yes
Product color	Black
Power consumption (typical)	20 W

Weight and Dimensions

Depth	220 mm
Width	242 mm
Height	37 mm
Weight	2200 g
