18 XENYX X1622USB/X1832USB/X2222USB/X2442USB User Manual

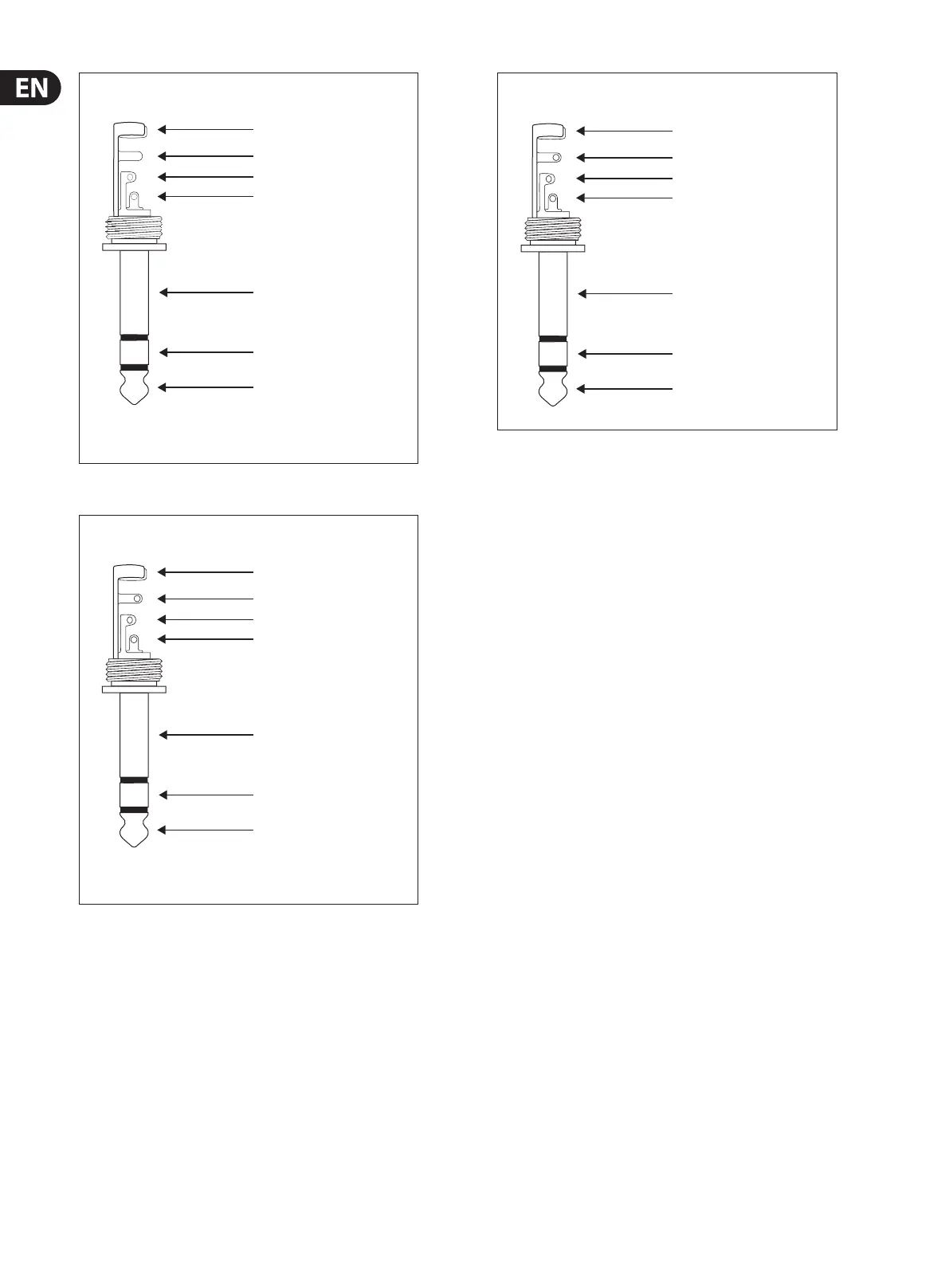

¼" stereo plugFig. 6.4:
Insert send/return stereo plugFig. 6.5:
Stereo plug for headphones connectionFig. 6.6:
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
Connect the insert send with the input and the
insert return with the output of the eects device.
Insert send return ¼" TRS connector
ring
return (in)
tip
send (out)
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal

Behringer XENYX X1832USB Specifications

General

Channels	18
USB Interface	Yes
Phantom Power	+48V
Faders	60mm
EQ	3-band on all channels
Effects	Yes, 24-bit multi-FX processor
Aux Sends	2
Outputs - Main	2 x XLR, 2 x 1/4"
USB	1 x Type B
Headphone Output	1 x 1/4"
Mic Preamps	6
