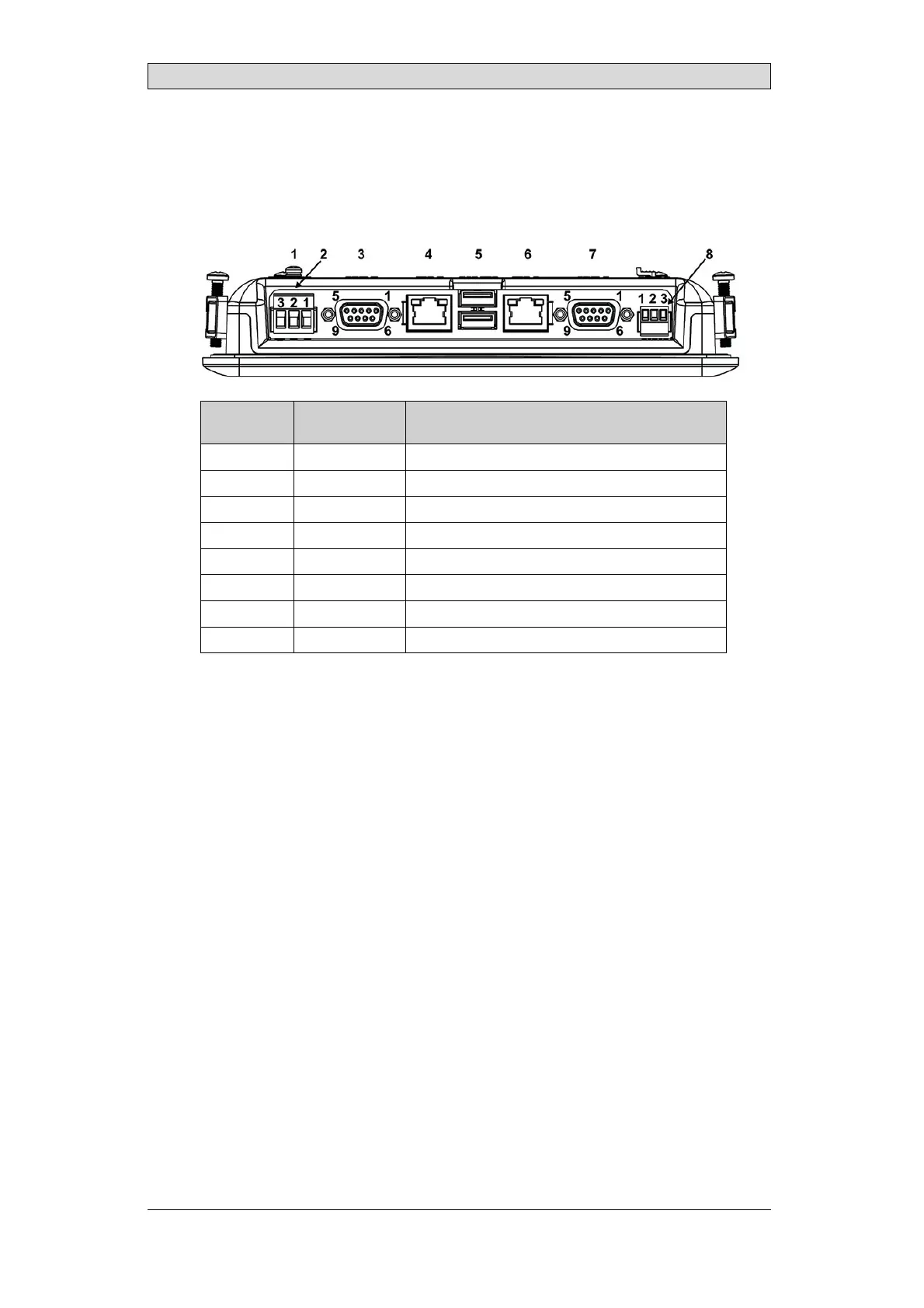

Operator Panel Drawings
6 OperatorPanelDrawings
6.1 Connectors
Pos Connector Description
1 Groundscrew Screwtoconnectfunctionalgrund
2 Powersupply 3-pinscrewconnector,+24VDC(18-32VDC)
3 COM-A DSUB(9-pin,female),serialcommunicationpo rt
4 LAN-A RJ45(shielded),10/100Mbit
5 USB-A/B USB2.0Host,maxoutputcurrent500mA
6 LAN-B RJ45(shielded),10/100Mbit
7 COM-B DSUB(9-pin,female),serialcommunicationport
8 COM-C 3-pins crewconnector
BeijerElectronics, MAEN330
