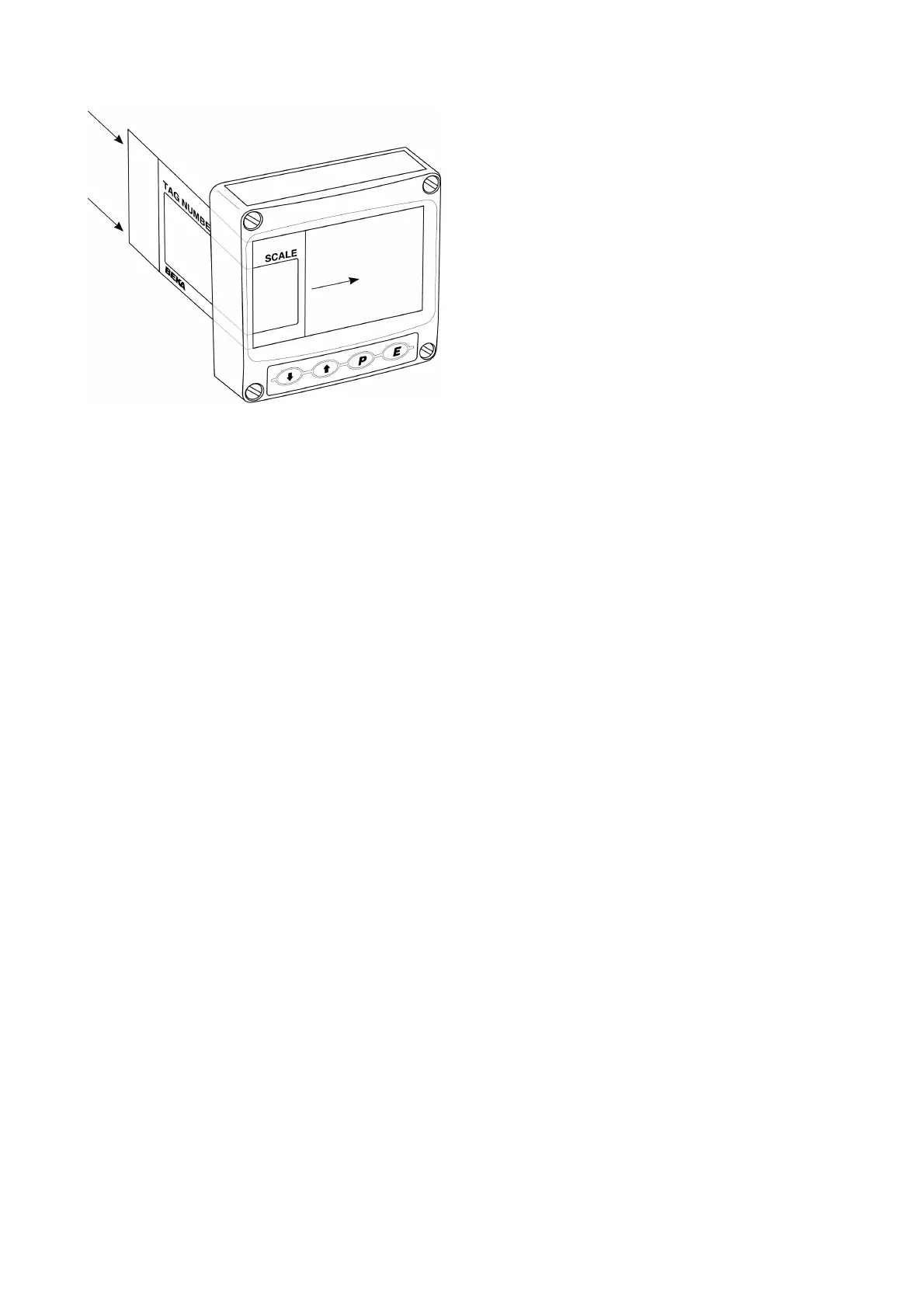

Fig 6b Inserting scale card into the
instrument assembly.
To replace the scale card carefully insert it into the
slot on the right hand side of the input terminals as
shown in Fig 6b. Force should be applied evenly
to both sides of the scale card to prevent it
twisting. The card should be inserted until about
2mm of the transparent tab remains protruding.
