8

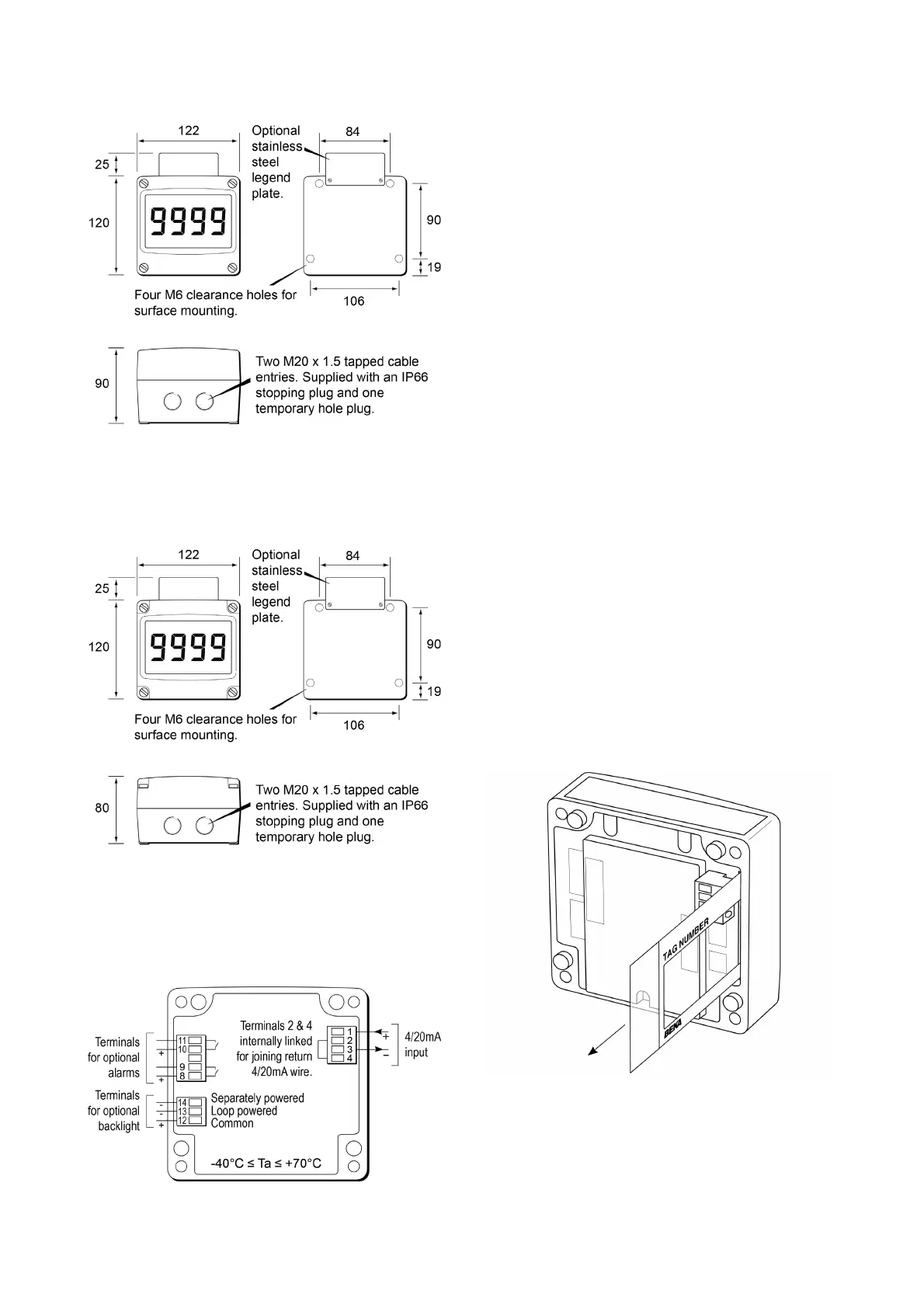

Fig 5a Dimensions for BA304G and BA324G.
Fig 5b Dimensions connections
for BA304G-SS and BA324G-SS.
Fig 5c Terminal connections for all models.
5.5 EMC
All models comply with the requirements of the
European EMC Directive 2014/30/EU. For
specified immunity all wiring should be in screened
twisted pairs, with the screens earthed at one point
in the safe area.
An insulated stud is included in the indicator back-
box for joining cable screens.
The optional back-box terminal assembly for GRP
models, which is described in section 9.6, includes
a pair of isolated linked terminals 5 and 6 for
joining cable screens.
5.6 Units of measurement and tag marking
on scale card.
The indicator’s units of measurement and tag
information are shown on a scale card which slides
into the indicator.
New indicators can be supplied with a printed
scale card showing the requested units of
measurement and tag information for no additional
cost. If this information is not supplied when the
indicator is ordered, a blank scale card will be fitted
which can easily be marked on-site with a dry
transfer or a permanent marker. Custom printed
scale cards are available from BEKA associates as
an accessory.
To remove the scale card from an indicator
carefully pull the transparent tab at the rear of the
indicator assembly away from the indicator as
shown in Fig 6a.
Fig 6a Removing scale card
