DURAFLO™ 18 GPM PUMPING STATIONS
1MANUL375
Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470* Ph (248) 349-7010 * Fax (248) 380-9681
11

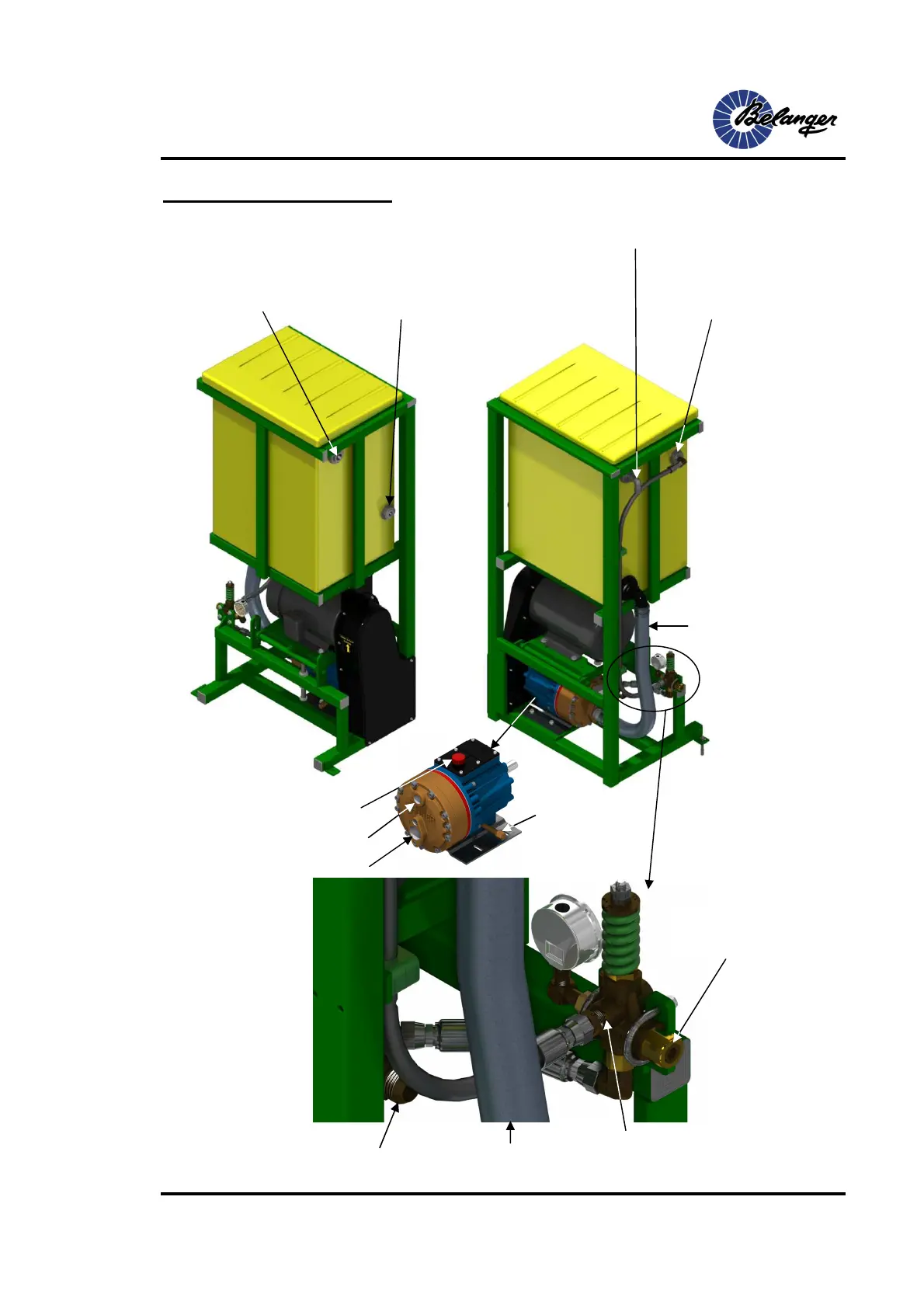

Connections Overview
Low Level Switch:
1/2” NPT-F into bulkhead
Must run in series with all other Low
Level switches, including Spot Free
Test this switch before using the wash
Pumping Station Water Inlet:
1” NPT-F into bulkhead
Max Inlet Pressure: 100 psi
Inlet Float Valve:
3/4” NPT-F Valve
50 GPM @ 60 PSI
Tank Overflow Port:
1” barbed hose fitting to drain
Pumping Station
Bypass Line
Pump Inlet
Hose:
2” ID x
2-3/8” OD
Pressure Relief
(Unloader) Valve Outlet:
1/2” Plug
Pumping Station Water Outlet:
1” MJIC
Pump Inlet Hose:
2” ID x 2-3/8” OD
Pressure Relief
(Unloader) Valve Inlet:
1/2” hydraulic hose
Pump Oil Fill Port
Pump Oil
Drain Cap
Pump Inlet Port
Pump Outlet Port
To Next Page
